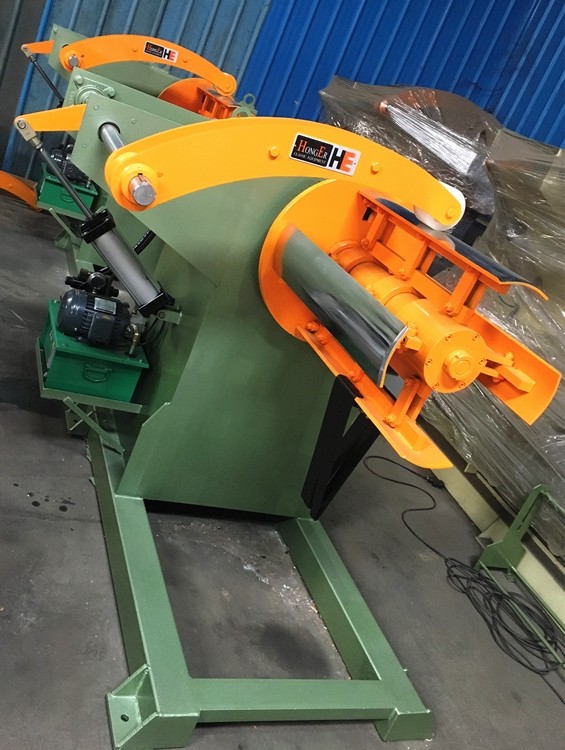

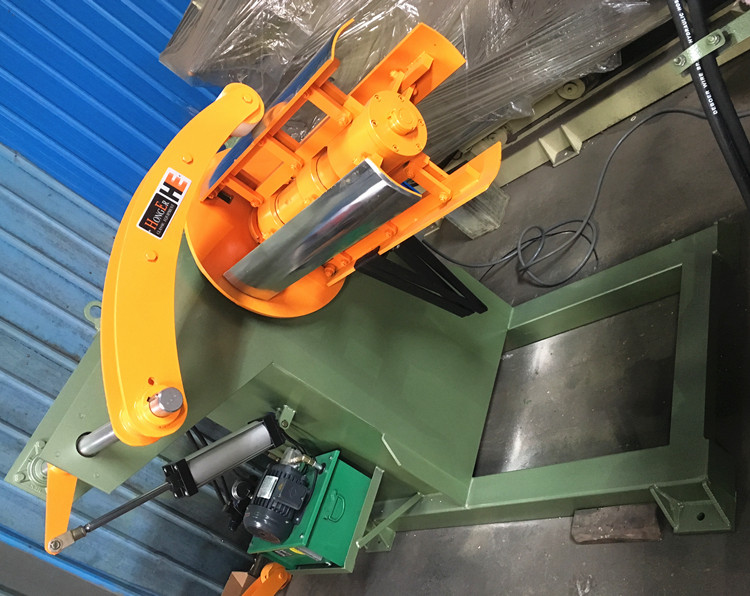

[MT-700F] Hydraulic Decoiler for Press Feed Sheet Metal Coi Handling
[MT-700F] Hydraulic Decoiler for Press Feed Sheet Metal Coi Handling
![[MT-700F] Hydraulic Decoiler for Press Feed Sheet Metal Coi Handling](https://icdn.tradew.com/file/201405/1556694/jpg/6842263.jpg?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![[MT-700F] Hydraulic Decoiler for Press Feed Sheet Metal Coi Handling](https://icdn.tradew.com/file/201405/1556694/jpg/6842263.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-700F] Hydraulic Decoiler for Press Feed Sheet Metal Coi Handling](https://icdn.tradew.com/file/201405/1556694/jpg/6842264.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-700F] Hydraulic Decoiler for Press Feed Sheet Metal Coi Handling](https://icdn.tradew.com/file/201405/1556694/jpg/6842265.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-700F] Hydraulic Decoiler for Press Feed Sheet Metal Coi Handling](https://icdn.tradew.com/file/201405/1556694/jpg/6842266.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-700F] Hydraulic Decoiler for Press Feed Sheet Metal Coi Handling](https://icdn.tradew.com/file/201405/1556694/jpg/6841734.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
| Categories | Hydraulic Decoiler |
|---|---|
| Brand | HongEr |
| Model | MT-700F |
| Max coil width | 0-700mm |
| Coil thickness | 0.1-3.2mm |
| Coil inner diameter | 460-520mm |
| Coil outter diameter | 1200mm |
| Max coil weight | 5000kg |
| Expansion way | Hydraulic Expansion |
| Pressing arm | Pneumatic Type |
| Power | 5HP |
| Inverter | Delta,Taiwan |
| Feeding speed | 16m/min |
| Terms of Payment | D/A, D/P, Western Union, T/T |
| Update Time | Apr 24,2024 |
Detail Information
Applicable Material
Material thickness Strip Width Coil Weight
0.1 mm to 3.2 mm 20 mm to 700 mm Up to 5000kgs
MT -700F Hydraulic Uncoiler Machine For Sheet Metal Stamping Parts Production
Coil Width：up to 700mm
Material thickness：0.1mm-3.2mm
Coil weight：500-5000kgs
Application: Press Feed
Line speed 16 m/min
Pressing arm and coil car for optional
Suitable for most kind of coil material,
such as CR Steel, HR Steel, Galvanized steel,
Stainless steel, Pre-painted, Aluminum, Cooper etc.
Model |
Coil width |
Coil Thickness |
Coil I.D. | Coil O.D. | Coil Weight | Expansion | Pressing Arm | Power | Inverter | Speed |
MT-700F |
0-700mm |
0.1 mm-3.2 mm |
460mm- 520 mm | 1200 mm | 5000 kgs | Hydraulic Expansion | Pneumatic Type | 5 HP | Delta,Taiwan | 16m/min |
Machine wrapped up with plastic film Fix decoiler machine into wooden case Delivery packages to port
Most of our decoilers are used in press feed
Honger also provide customization decoilers for
cut to length line,
coil slitting line,
roll forming line.
Motorized Decoiler
MT-700F to
Mexico
