[MT-600F] Sheet Metal Hydraulic Decoiler Machine for Steel Coil Processing
[MT-600F] Sheet Metal Hydraulic Decoiler Machine for Steel Coil Processing
![[MT-600F] Sheet Metal Hydraulic Decoiler Machine for Steel Coil Processing](https://icdn.tradew.com/file/201405/1556694/jpg/6840297.jpg?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![[MT-600F] Sheet Metal Hydraulic Decoiler Machine for Steel Coil Processing](https://icdn.tradew.com/file/201405/1556694/jpg/6840297.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-600F] Sheet Metal Hydraulic Decoiler Machine for Steel Coil Processing](https://icdn.tradew.com/file/201405/1556694/jpg/6840298.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-600F] Sheet Metal Hydraulic Decoiler Machine for Steel Coil Processing](https://icdn.tradew.com/file/201405/1556694/jpg/6840370.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-600F] Sheet Metal Hydraulic Decoiler Machine for Steel Coil Processing](https://icdn.tradew.com/file/201405/1556694/jpg/6840299.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-600F] Sheet Metal Hydraulic Decoiler Machine for Steel Coil Processing](https://icdn.tradew.com/file/201405/1556694/jpg/6760038.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
| Categories | Hydraulic Decoiler |
|---|---|
| Brand | HongEr |
| Model | MT-600F |
| Max coil width | 0-600 mm |
| Coil thickness | 0.1-3.2 mm |
| Coil inner diameter | 460-520mm |
| Coil outter diameter | 1200mm |
| Max coil weight | 5000kg |
| Expansion way | Hydraulic Expansion |
| Update Time | September 28,2023 |
Detail Information
Applicable Material
Material thickness
0.1 mm to 3.2 mm
Strip Width
0 mm to 600 mm
Coil Weight
Up to 5000kgs
Product Description

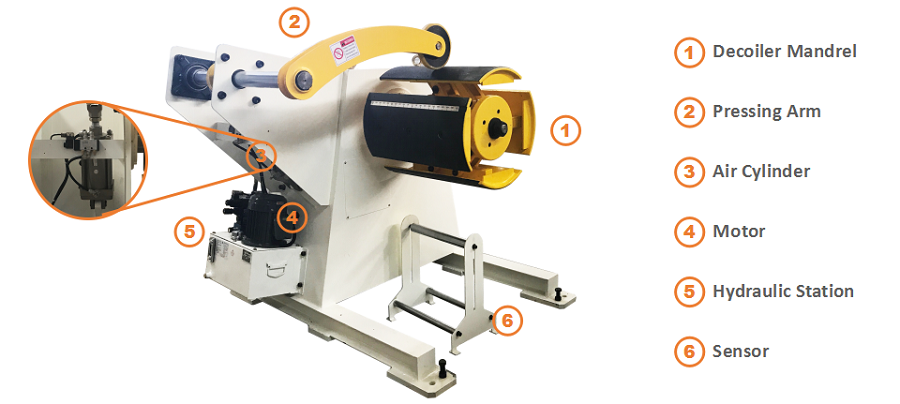

MT-600F Hydraulic Decoiler
Operation: Motorized
Mandrel Expansion: Hydraulic
Application: Press Feed
Uncoiling speed: 16 m/min
Suitable for most kind of coil material, such as CR Steel, HR Steel, Galvanized steel, Stainless steel, Pre-painted, Aluminum, Cooper etc.
Specification
Model | Coil Width | Coil Thickness | Coil I.D. | Coil O.D. | Coil Weight | Expansion |
Pressing Arm |
Inverter |
Speed |
MT-600F | 600 mm | 0.1 mm - 3.2mm | 450-530 mm | 1200 mm | 5000 kgs | Hydraulic Expanion |
Pneumatic Type |
Delta, Taiwan |
16 m/min |

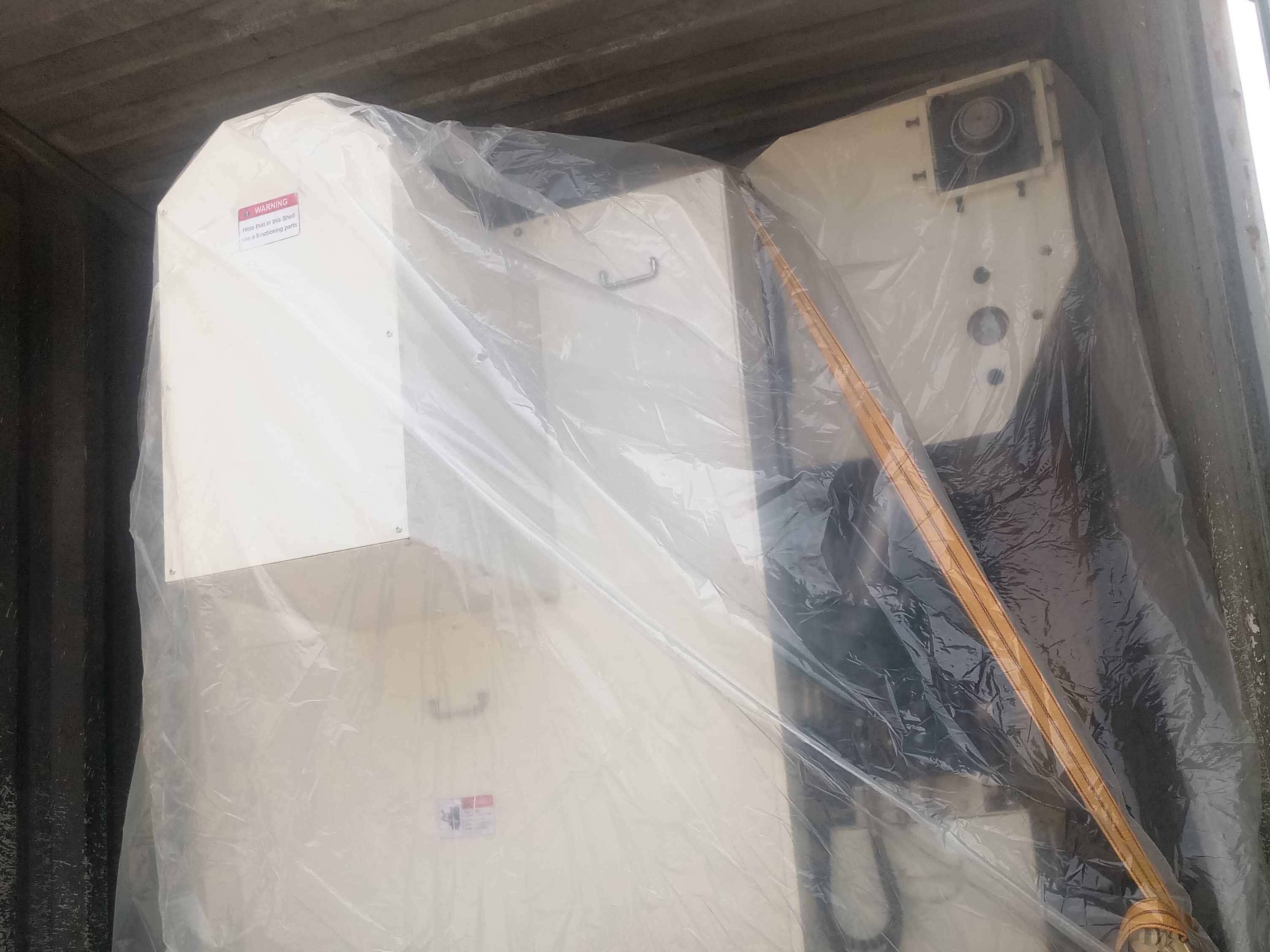

Packing
Machine wrapped up with plastic film
Fix decoiler machine into wooden case
Delivery packages to port
Application
Most of our decoilers are used in press feed.

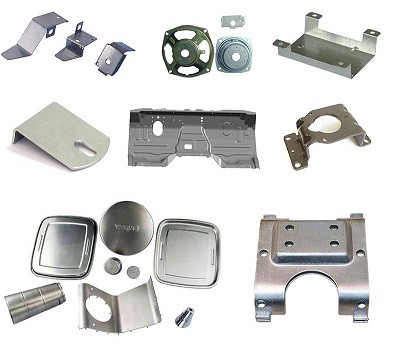

The main product including many kinds of metal sheet products such as terminals, knives, hinges and so on.
HongEr also provide customization decoilers for cut to length line,
coil slitting line,
roll forming line.
General configruation for press feeding line

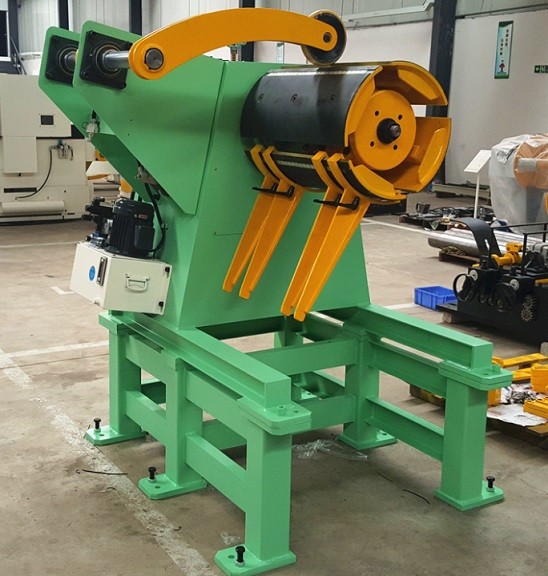

Hydraulic Decoiler
with pressing arm
MT-500F
to Indonesia

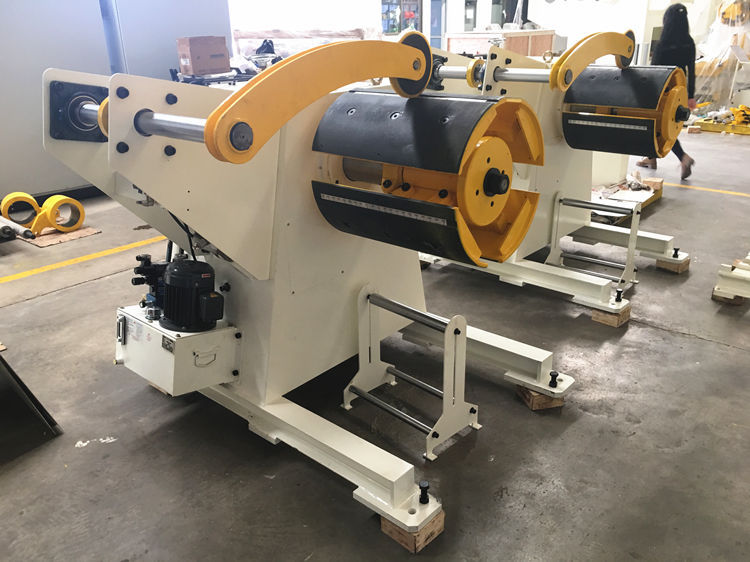

Hydraulic Decoiler
with pressing arm
MT-500F
to Poland
