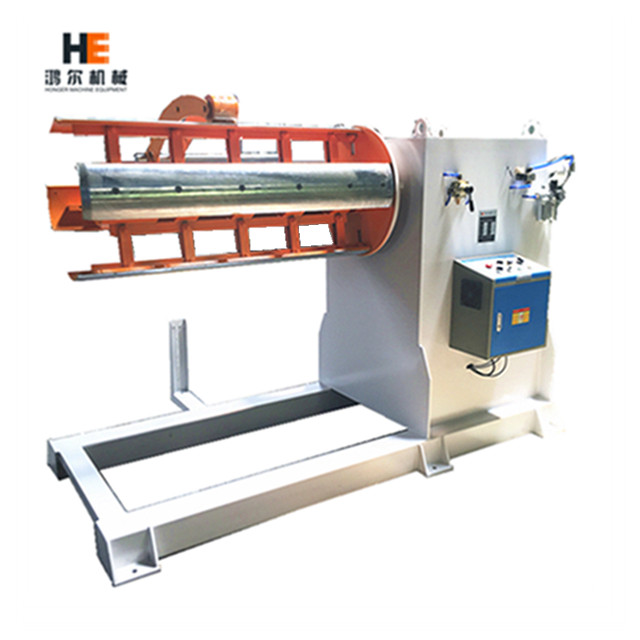

[MT-1300F] Customized heavy duty decoiler machine hydraulic expanion for forming line
[MT-1300F] Customized heavy duty decoiler machine hydraulic expanion for forming line
![[MT-1300F] Customized heavy duty decoiler machine hydraulic expanion for forming line](https://icdn.tradew.com/file/201405/1556694/jpg/6841693.jpg?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![[MT-1300F] Customized heavy duty decoiler machine hydraulic expanion for forming line](https://icdn.tradew.com/file/201405/1556694/jpg/6841693.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-1300F] Customized heavy duty decoiler machine hydraulic expanion for forming line](https://icdn.tradew.com/file/201405/1556694/jpg/6842108.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-1300F] Customized heavy duty decoiler machine hydraulic expanion for forming line](https://icdn.tradew.com/file/201405/1556694/jpg/6842109.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-1300F] Customized heavy duty decoiler machine hydraulic expanion for forming line](https://icdn.tradew.com/file/201405/1556694/jpg/6842110.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-1300F] Customized heavy duty decoiler machine hydraulic expanion for forming line](https://icdn.tradew.com/file/201405/1556694/png/6842111.png?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
| Categories | Hydraulic Decoiler |
|---|---|
| Brand | HongEr |
| Model | MT-1300F |
| Coil Thickness | 0.1 mm - 3.2mm |

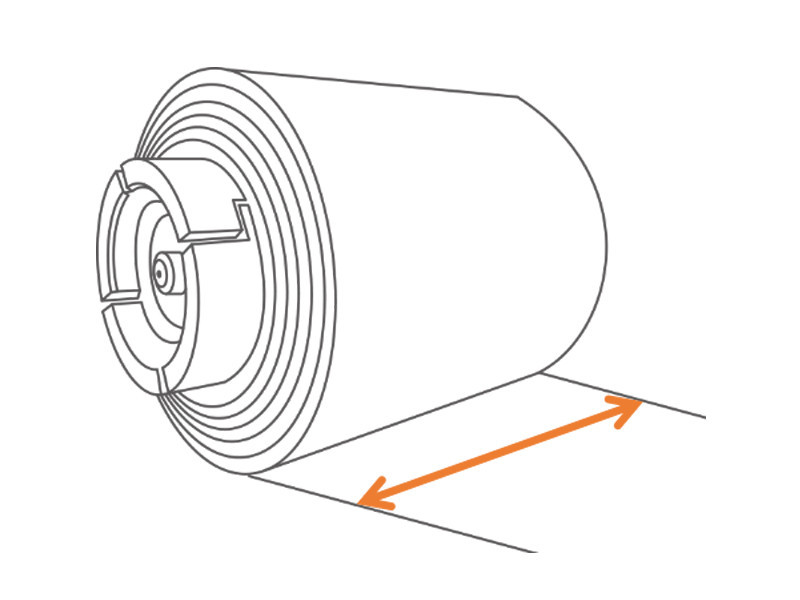

| Coil Width | 1300mm |

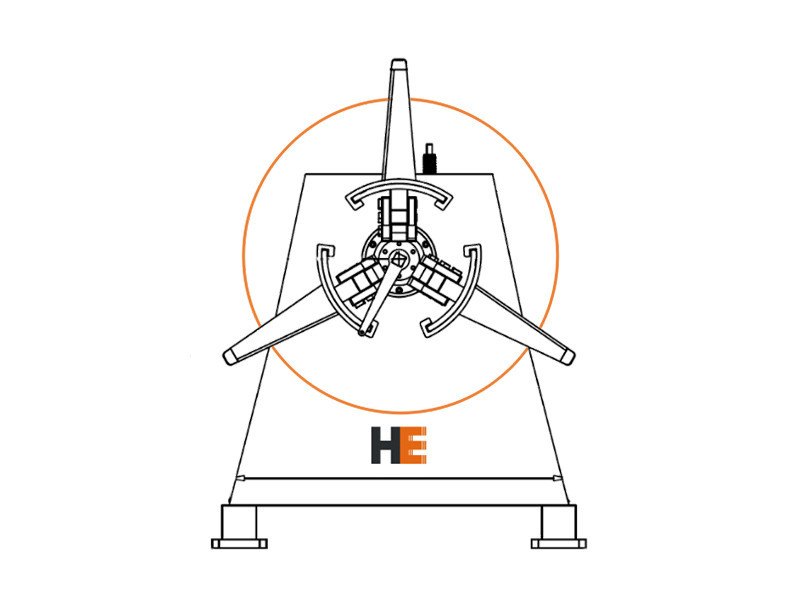

| Coil I.D. | 450-530 mm |
| Coil O.D. | 1200 mm |
| Expansion | Hydraulic Expanion |
| Update Time | Oct 15,2024 |
Detail Information
Application Material
Material thickness Strip Width Coil Weight
0.1 mm to 3.2 mm 20 mm to 1300 mm Up to 5000kgs
Production Description

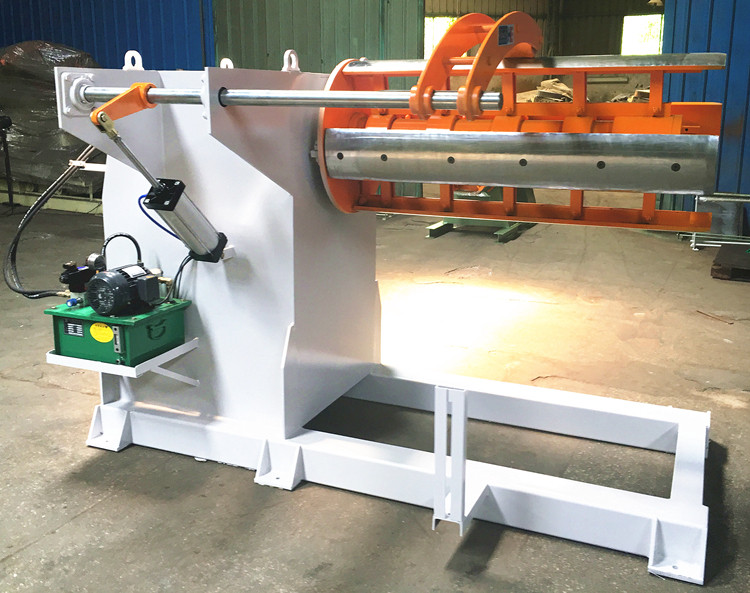

Customized heavy duty decoiler machine hydraulic expanion for forming line
Hydraulic Expansion
Motorized Operation

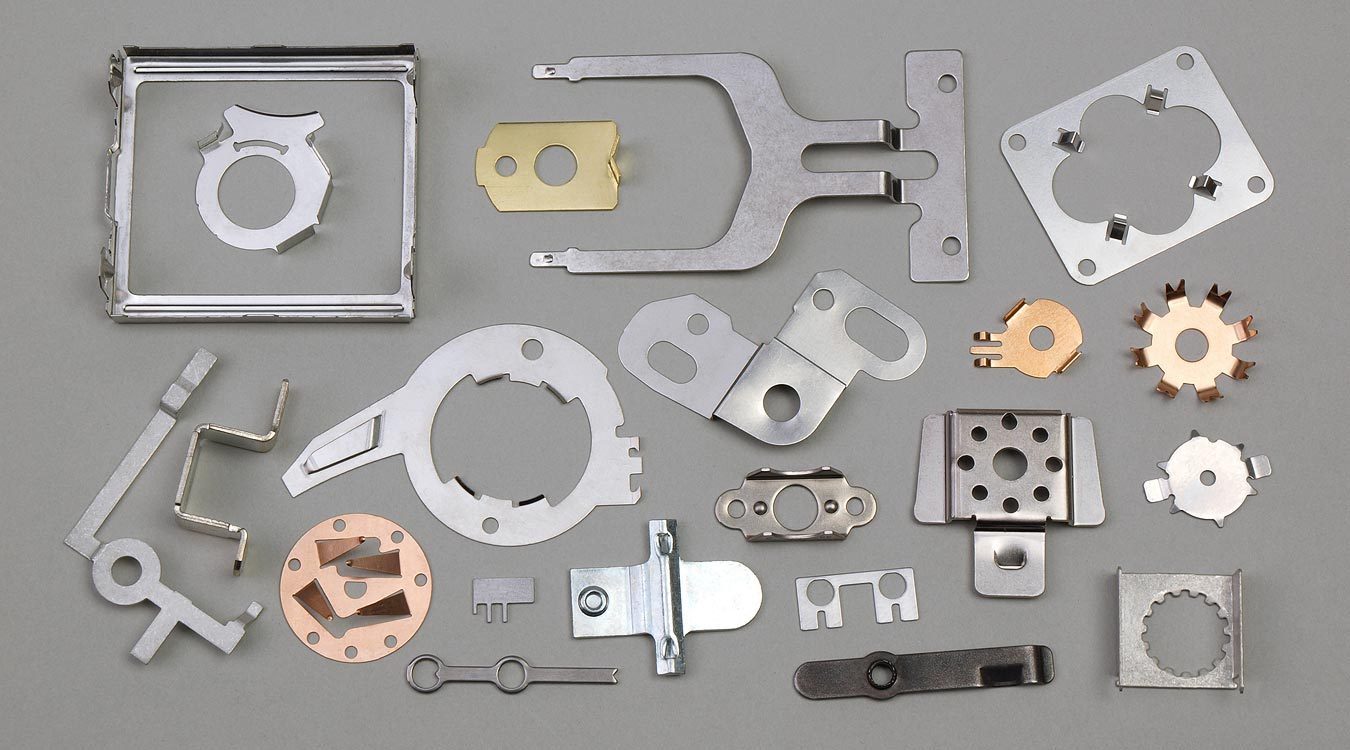

Widely used in the stamping industry
Uncoiling speed can reach 16 m/min
Suitable for most kind of coil material, such as CR Steel, HR Steel, Galvanized steel, Stainless steel, Pre-painted, Aluminum, Cooper etc.
specifications
Model | Coil Width | Coil Thickness | Coil.I.D | Coil.O.D | Coil Weight |
Expansion |
Speed |
pressing arm |
MT-1300 | 1300mm | 0.2-3.2mm | 450-530mm | 1200mm | 5000KG |
Hydraulic |
16m/min |
pneumatic |
Application
Most of our decoilers are used in press feed.
HongEr also provide customization decoilers for cut to length line,
coil slitting line,
roll forming line.
General configuration for press feeding line
packing
Machine wrapped up with plastic film Fix decoiler machine into wooden case Delivery packages to port
Hydraulic Decoiler
