[MT-800F] Motorized Decoiler Machine Hydraulic Expansion Coil Cradle Steel Coil Decoiling
[MT-800F] Motorized Decoiler Machine Hydraulic Expansion Coil Cradle Steel Coil Decoiling
![[MT-800F] Motorized Decoiler Machine Hydraulic Expansion Coil Cradle Steel Coil Decoiling](https://icdn.tradew.com/file/201405/1556694/jpg/6841732.jpg?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![[MT-800F] Motorized Decoiler Machine Hydraulic Expansion Coil Cradle Steel Coil Decoiling](https://icdn.tradew.com/file/201405/1556694/jpg/6841732.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![[MT-800F] Motorized Decoiler Machine Hydraulic Expansion Coil Cradle Steel Coil Decoiling](https://icdn.tradew.com/file/201405/1556694/jpg/6842122.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![[MT-800F] Motorized Decoiler Machine Hydraulic Expansion Coil Cradle Steel Coil Decoiling](https://icdn.tradew.com/file/201405/1556694/jpg/6842123.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![[MT-800F] Motorized Decoiler Machine Hydraulic Expansion Coil Cradle Steel Coil Decoiling](https://icdn.tradew.com/file/201405/1556694/jpg/6842124.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![[MT-800F] Motorized Decoiler Machine Hydraulic Expansion Coil Cradle Steel Coil Decoiling](https://icdn.tradew.com/file/201405/1556694/jpg/6841734.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | Hydraulic Decoiler |
---|---|
Brand | HongEr |
Model | MT-800F |
Max coil width | 0-800mm |
Coil thickness | 0.1-3.2mm |
Coil inner diameter | 460-520mm |
Coil outter diameter | 1200mm |
Max coil weight | 5000kg |
Expansion way | Hydraulic Expansion |
Pressing arm | Pneumatic Type |
Power | 5HP |
Inverter | Delta,Taiwan |
Feeding speed | 16m/min |
Terms of Payment | D/A, D/P, Western Union, T/T |
Update Time | Jul 27,2024 |
Detail Information

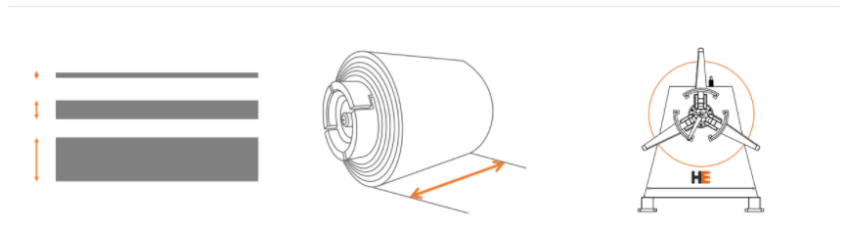

Applicable Material
![](https://icdn.tradew.com/file/201405/1556694/png/6823893.png?x-oss-process=image/quality,Q_90)
Material thickness Strip Width Coil Weight
0.1 mm to 3.2 mm 20 mm to 800 mm Up to 5000kgs
![](https://icdn.tradew.com/file/201405/1556694/jpg/6841729.jpg?x-oss-process=image/quality,Q_90)

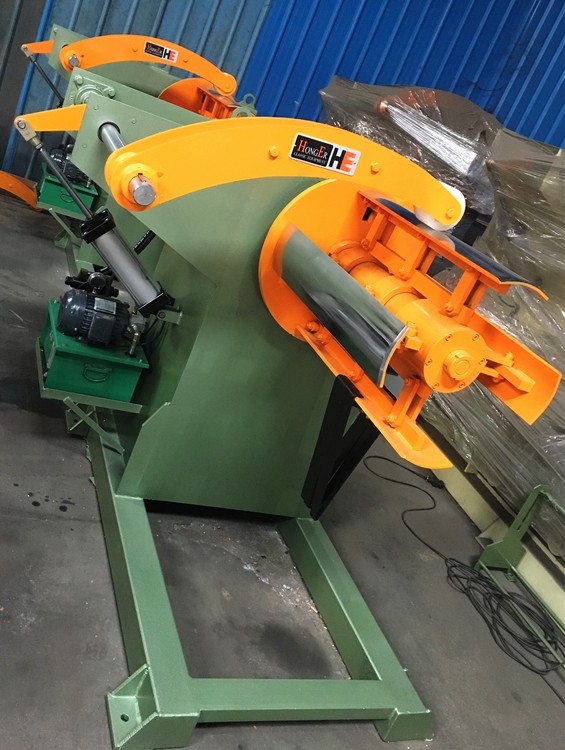

MT -800F Heavy Duty Hydraulic Uncoiler Machine For Metal Shells Stamping Process
Coil Width:up to 800mm
Material thickness:0.1mm-3.2mm
Coil weight:500-5000kgs
Application: Press Feed
Line speed 16 m/min
Pressing arm and coil car for optional
Suitable for most kind of coil material,
such as CR Steel, HR Steel, Galvanized steel,
Stainless steel, Pre-painted, Aluminum, Cooper etc.
![](https://icdn.tradew.com/file/201405/1556694/png/6822733.png?x-oss-process=image/quality,Q_90)
Model |
Coil width |
Coil Thickness |
Coil I.D. | Coil O.D. | Coil Weight | Expansion | Pressing Arm | Power | Inverter | Speed |
MT-800F |
20 mm -800 mm |
0.1 mm-3.2 mm |
460-520 mm | 1200 mm | 5000 kgs | Hydraulic Expansion | Pneumatic Type | 5 HP | Delta,Taiwan | 16m/min |
![](https://icdn.tradew.com/file/201405/1556694/png/6823966.png?x-oss-process=image/quality,Q_90)
Machine wrapped up with plastic film Fix decoiler machine into wooden case Delivery packages to port
![](https://icdn.tradew.com/file/201405/1556694/png/6824002.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201405/1556694/jpg/6829498.jpg?x-oss-process=image/quality,Q_90)

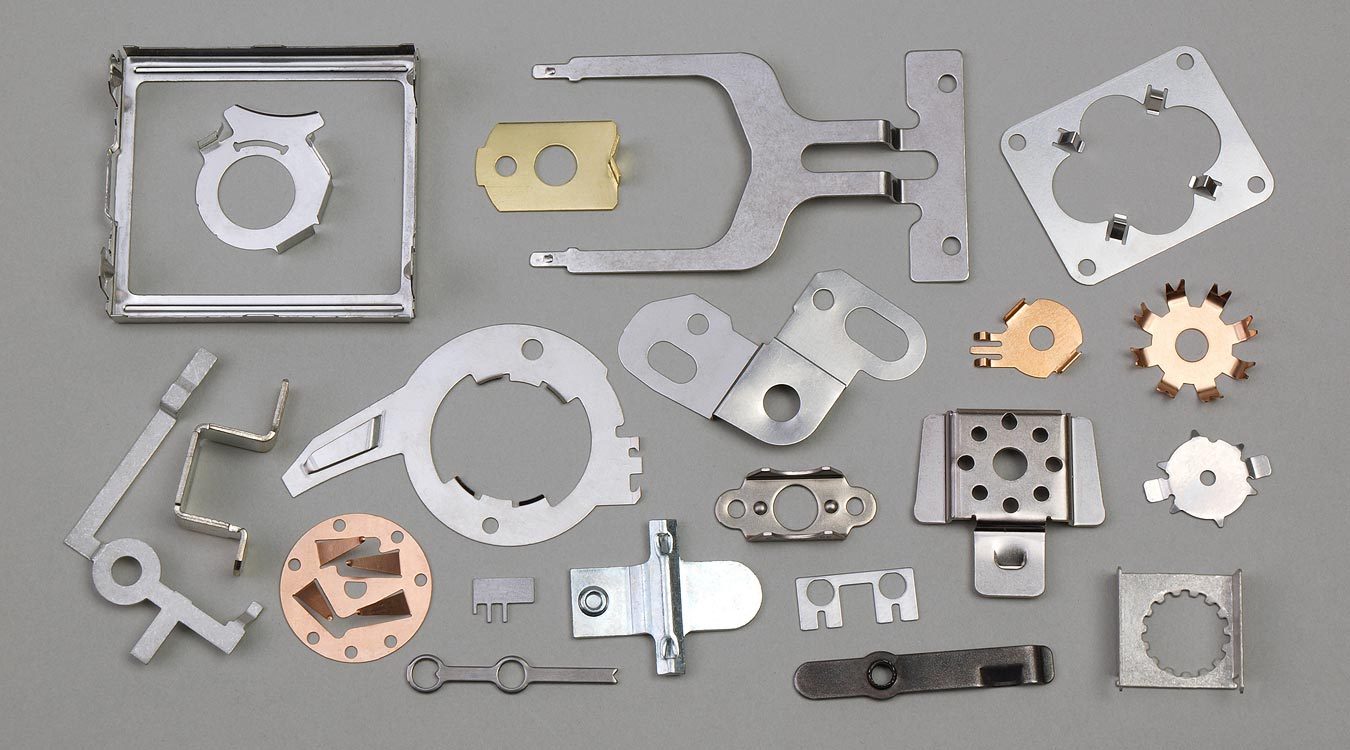

Most of our decoilers are used in press feed
Honger also provide customization decoilers for
cut to length line,
coil slitting line,
roll forming line.
![](https://icdn.tradew.com/file/201405/1556694/jpg/6841731.jpg?x-oss-process=image/quality,Q_90)

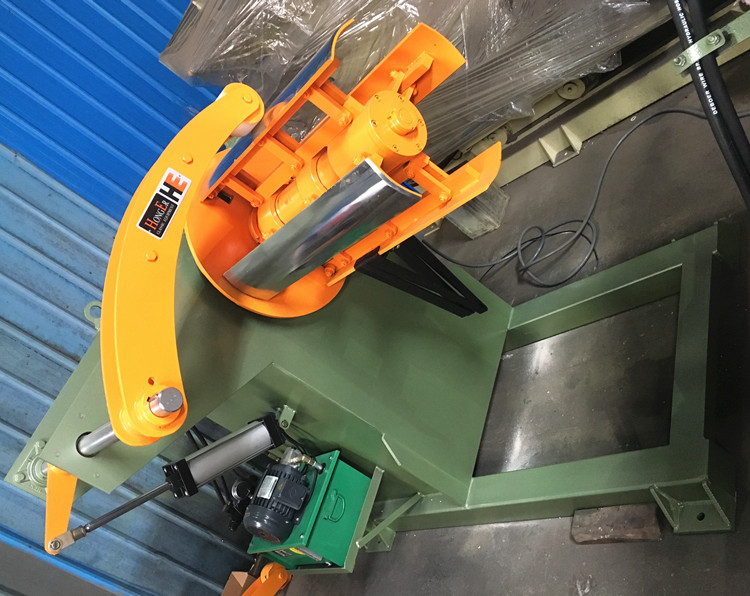

Motorized Decoiler
MT-800F to
United Kingdom
