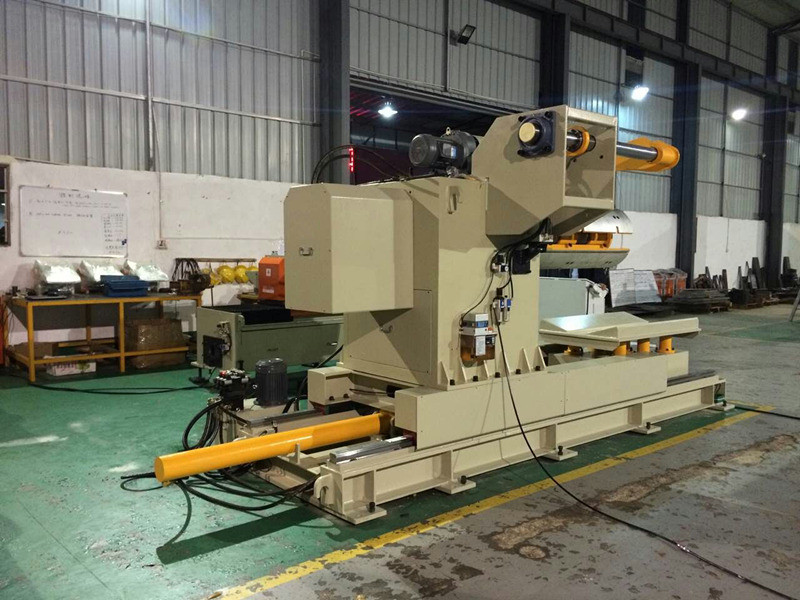

[MT-1200F] Heavy duty hydraulic uncoiler machine for metal shells stamping process
[MT-1200F] Heavy duty hydraulic uncoiler machine for metal shells stamping process
![[MT-1200F] Heavy duty hydraulic uncoiler machine for metal shells stamping process](https://icdn.tradew.com/file/201405/1556694/jpg/6840466.jpg?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![[MT-1200F] Heavy duty hydraulic uncoiler machine for metal shells stamping process](https://icdn.tradew.com/file/201405/1556694/jpg/6840466.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-1200F] Heavy duty hydraulic uncoiler machine for metal shells stamping process](https://icdn.tradew.com/file/201405/1556694/jpg/6840467.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-1200F] Heavy duty hydraulic uncoiler machine for metal shells stamping process](https://icdn.tradew.com/file/201405/1556694/jpg/6840468.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-1200F] Heavy duty hydraulic uncoiler machine for metal shells stamping process](https://icdn.tradew.com/file/201405/1556694/jpg/6840469.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[MT-1200F] Heavy duty hydraulic uncoiler machine for metal shells stamping process](https://icdn.tradew.com/file/201405/1556694/jpg/6840470.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
| Categories | Hydraulic Decoiler |
|---|---|
| Brand | HongEr |
| Model | MT-1200F |
| Coil Thickness | 0.1 mm - 3.2mm |
| Coil Width | 1200 mm |
| Coil I.D. | 450-530 mm |
| Coil O.D. | 1200 mm |
| Expansion | Hydraulic Expanion |
| FOB port | Shenzhen |
| Terms of Payment | D/P |
| Update Time | May 29,2023 |
Detail Information
DETAIL INFORMATION
MT-F Hydraulic Decoiler suits for most kind of coil material, such as CR Steel, HR Steel, Galvanized steel, Stainless steel, Pre-painted, Aluminum, Cooper etc.
Sheet Metal Hydraulic decoiler machine
Operation: Motorized
Mandrel Expansion: Hydraulic
Application: Press Feed
Uncoiling speed 16 m/min
Hydraulic pressure material loading device.
SPECIFICATION
Model |
MT-400F | MT-500F |
MT-600F |
MT-700F |
MT-800F | MT-1000F | MT-1200F |
Coil Width | 400 mm | 500 mm | 600 mm | 700 mm | 800 mm | 100 mm | 1200 mm |
Coil Thickness | 0.1 mm - 3.2mm | ||||||
Coil I.D. | 450-530 mm | ||||||
Coil O.D. | 1200 mm | ||||||
Coil Weight |
3000 kgs |
5000 kgs |
|||||
Expansion |
Hydraulic Expanion |
||||||
Pressing Arm |
Pneumatic Type Pressing Arm |
||||||
Inverter | Delta, Taiwan | ||||||
Speed | 16 m/min | ||||||
PACKING
Hydraulic Decoiler
with
coil car
MT-1200F
to TURKEY
