RNC-200 (Thickness 0.2-3.2mm, Width 200mm)
|Categories||NC Servo Feeder|
|NC servo feeder can be used in conjunction||Punching machine, shearing machine,hydraulic press|
|Feeding pitch||0-10m adjustable|
|Multi segment feeding function||In cooperation with multi station mold to complete diversified processing|
|Programmed induction feeding||Connected to punch cam, adjustable feeding and relaxation time|
|Installaton of material end detection device||Automatically stop the press when there is no material|
|Operation interface||7 inch touch screen|
|Feeding precision||0.02mm( when the mold has a positioning pin)|
|Four models for different thickness||0.1-1.6mm,0.2-3.2mm,0.5-4.5mm,1.0-6.0mm|
|Easy to operate||Parameters such as feeding length and speed can be set arbitrarily|
RNC-200 Sheet metal strip feeder machine for press feed

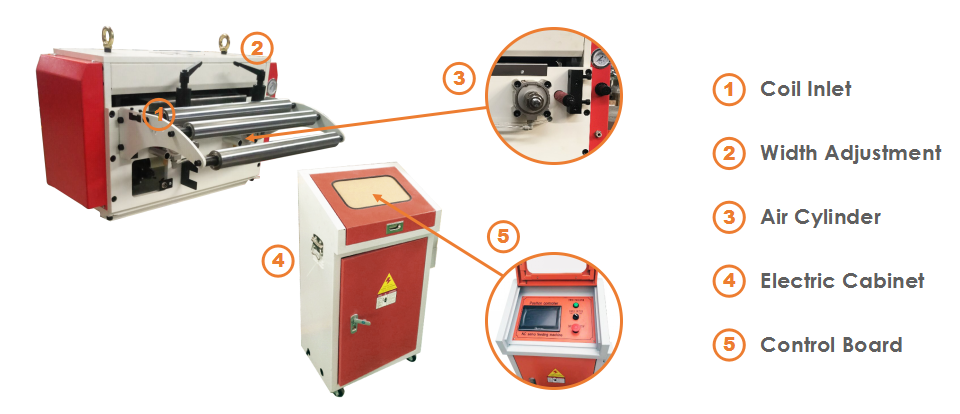

RNC-200 is HongEr servo roll feeder machine with pneumatic release.
It can feeds sheet metal coil material thickness from 0.2mm to 3.2mm, with max. feeding speed 20m/min.
Thanks to Yaskawa servo system and Mitsubishi PLC, it can ensure +/-0.01mm feeding precision.
A mounting plate can help the servo feeder install to press machine easily.
Or you can choose a separate bracket for better stability.
Coil Width to
Pneumatic Type Releasing System
Upper Roll Ø65mm, Bottom Roll Ø80mm
Max. 9999.99 mm
± 0.1 mm
RNC servo roll feeder can be found in many different product line such as oil filter production, saw blade stamping line, knives pressing line, car plate stamping etc.

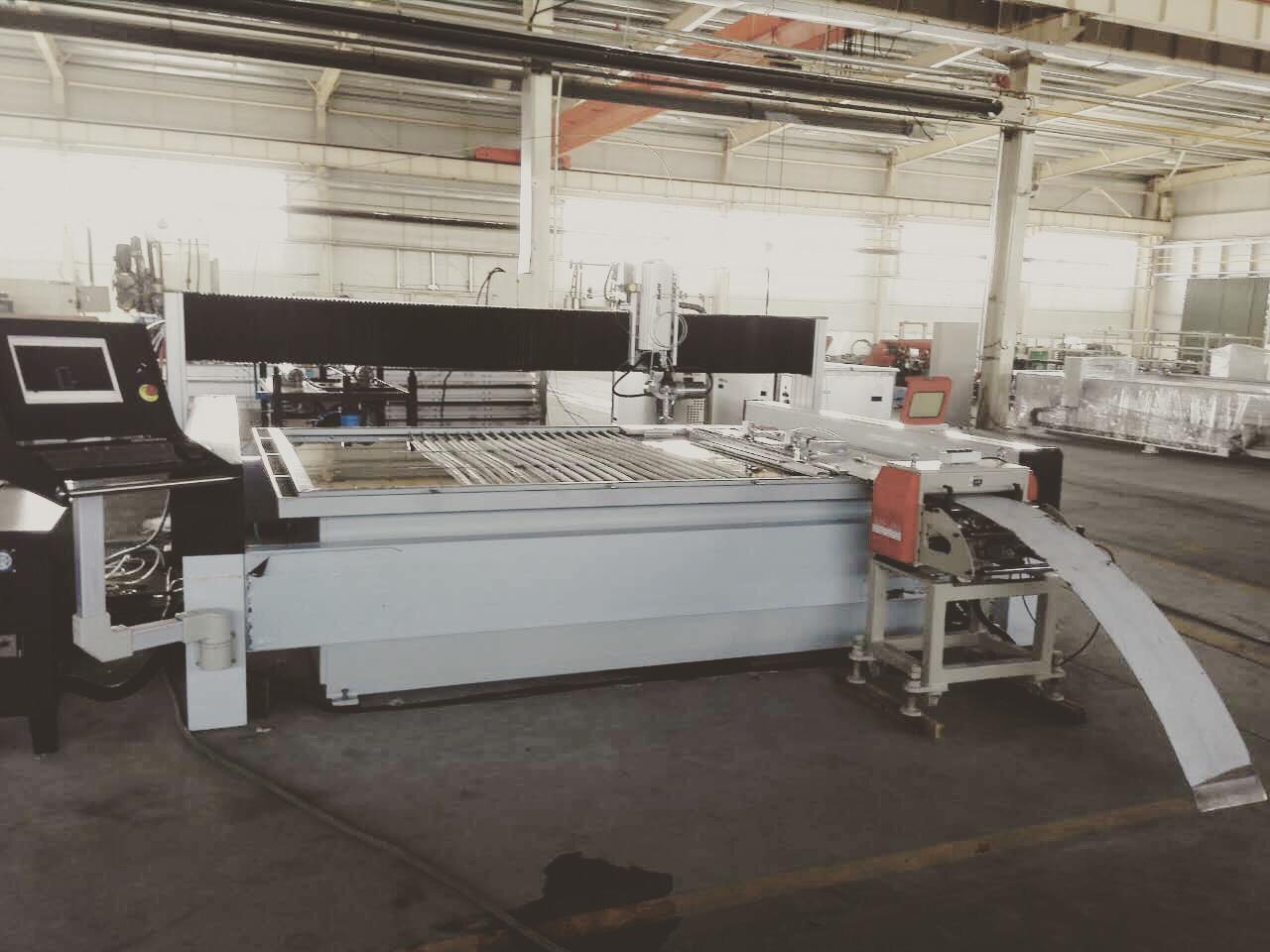

RNC servo feeder working with water jet cutting machine in New Zealand

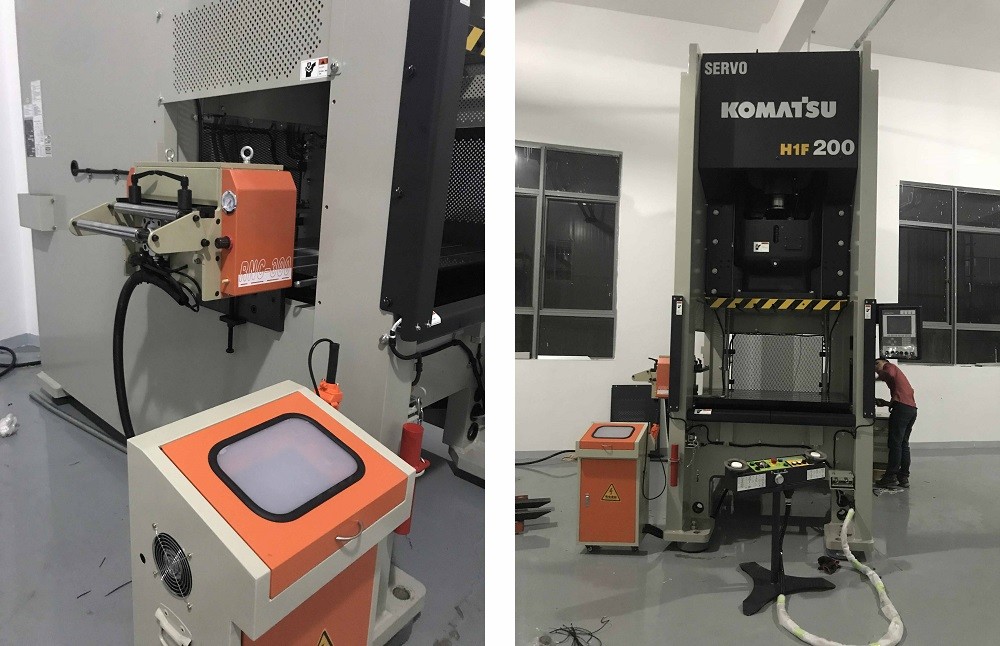

Servo roll feeder with KOMATSU press in our customer's new workshop
Send the inquiry, Honger is ready to design the best machine solution for you!
