RNC-800 (Thickness 0.2-3.2mm, Width 800mm)

Name: RNC-800 (Thickness 0.2-3.2mm, Width 800mm)
Brand: HongEr
SKU: 18190150
Rating: 4.75 (10 reviews)

Categories	NC Servo Feeder
Brand	HongEr
Model	RNC-800
NC servo feeder can be used in conjunction	Punching machine, shearing machine,hydraulic press
Feeding pitch	0-10m adjustable
Multi segment feeding function	In cooperation with multi station mold to complete diversified processing
Programmed induction feeding	Connected to punch cam, adjustable feeding and relaxation time
Installaton of material end detection device	Automatically stop the press when there is no material
Operation interface	7 inch touch screen
Feeding precision	0.02mm( when the mold has a positioning pin)
Four models for different thickness	0.1-1.6mm,0.2-3.2mm,0.5-4.5mm,1.0-6.0mm
Easy to operate	Parameters such as feeding length and speed can be set arbitrarily
Update Time	Oct 15,2024

Detail Information

Product Description

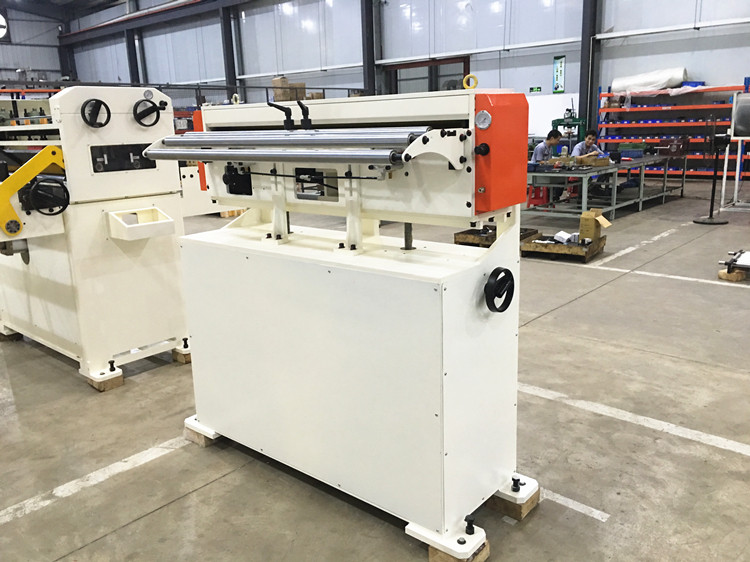

RNC-800 High precision steel coil feeder for stamping line

RNC-800 is HongEr press servo roll feeder machine with pneumatic release.

It can feeds sheet metal coil material thickness from 0.2mm to 3.2mm, with max. feeding speed 20m/min.

Thanks to Yaskawa servo system and Mitsubishi PLC, it can ensure +/-0.01mm feeding precision.

A mounting plate can help the servo feeder install to press machine easily.

Specification

Model	RNC-800
Coil Width to	800 mm
Strip Thickness	0.2-3.2 mm
Release	Pneumatic Type Releasing System
Feed Roll	Upper Roll Ø65mm, Bottom Roll Ø80mm
Feed Length	Max. 9999.99 mm
Speed	Max. 20m/min
Accuracy	± 0.1 mm
Servo Motor	Yaskawa, Japan
Servo Drive	Yaskawa, Japan
PLC	Mitsubishi, Japan
Touch Screen	Weinview, Taiwan
