RNC-500 (Thickness 0.2-3.2mm, Width 500mm)
![RNC-500 (Thickness 0.2-3.2mm, Width 500mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6926121.jpg?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![RNC-500 (Thickness 0.2-3.2mm, Width 500mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6926121.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![RNC-500 (Thickness 0.2-3.2mm, Width 500mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6926122.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![RNC-500 (Thickness 0.2-3.2mm, Width 500mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6751401.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![RNC-500 (Thickness 0.2-3.2mm, Width 500mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6751402.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![RNC-500 (Thickness 0.2-3.2mm, Width 500mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6751403.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | NC Servo Feeder |
---|---|
Brand | HongEr |
Model | RNC-500 |
NC servo feeder can be used in conjunction | Punching machine, shearing machine,hydraulic press |
Feeding pitch | 0-10m adjustable |
Multi segment feeding function | In cooperation with multi station mold to complete diversified processing |
Programmed induction feeding | Connected to punch cam, adjustable feeding and relaxation time |
Installaton of material end detection device | Automatically stop the press when there is no material |
Operation interface | 7 inch touch screen |
Feeding precision | 0.02mm( when the mold has a positioning pin) |
Four models for different thickness | 0.1-1.6mm,0.2-3.2mm,0.5-4.5mm,1.0-6.0mm |
Easy to operate | Parameters such as feeding length and speed can be set arbitrarily |
Update Time | Jul 27,2024 |
Detail Information
Product Description
RNC-500 Sheet metal coil feeder top supplier in china
RNC-500 is HongEr press servo roll feeder machine with pneumatic release.
It can feeds sheet metal coil material thickness from 0.2mm to 3.2mm, with max. feeding speed 20m/min.
Thanks to Yaskawa servo system and Mitsubishi PLC, it can ensure +/-0.01mm feeding precision.
A mounting plate can help the servo feeder install to press machine easily.
Or you can choose a separate bracket for better stability.
![](https://icdn.tradew.com/file/201405/1556694/png/6756086.png?x-oss-process=image/quality,Q_90)
Specification
Model |
RNC-500 |
Coil Width to |
500 mm |
Strip Thickness |
0.2-3.2 mm |
Release | Pneumatic Type Releasing System |
Feed Roll | Upper Roll Ø65mm, Bottom Roll Ø80mm |
Feed Length | Max. 9999.99 mm |
Speed | Max. 20m/min |
Accuracy | ± 0.1 mm |
Servo Motor | Yaskawa, Japan |
Servo Drive | Yaskawa, Japan |
PLC | Mitsubishi, Japan |
Touch Screen | Weinview, Taiwan |
Power | 1.8 Kw |
Application
RNC-500 Sheet metal coil feeder can be found in many different sheet metal stamping line.
![](https://icdn.tradew.com/file/201405/1556694/png/6756093.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201405/1556694/png/6756030.png?x-oss-process=image/quality,Q_90)

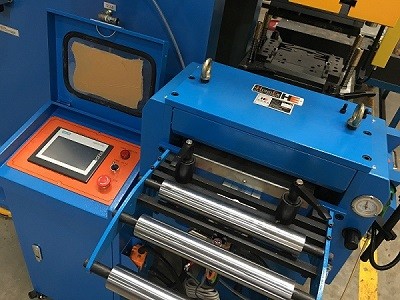

RNC Sheet metal coil feeder with Siemens Servo Control delivery to Poland
![](https://icdn.tradew.com/file/201405/1556694/jpg/6926126.jpg?x-oss-process=image/quality,Q_90)
Sheet metal coil feeder with KOMATSU press in our customer's new workshop
![](https://icdn.tradew.com/file/201405/1556694/jpg/6798157.jpg?x-oss-process=image/quality,Q_90)
