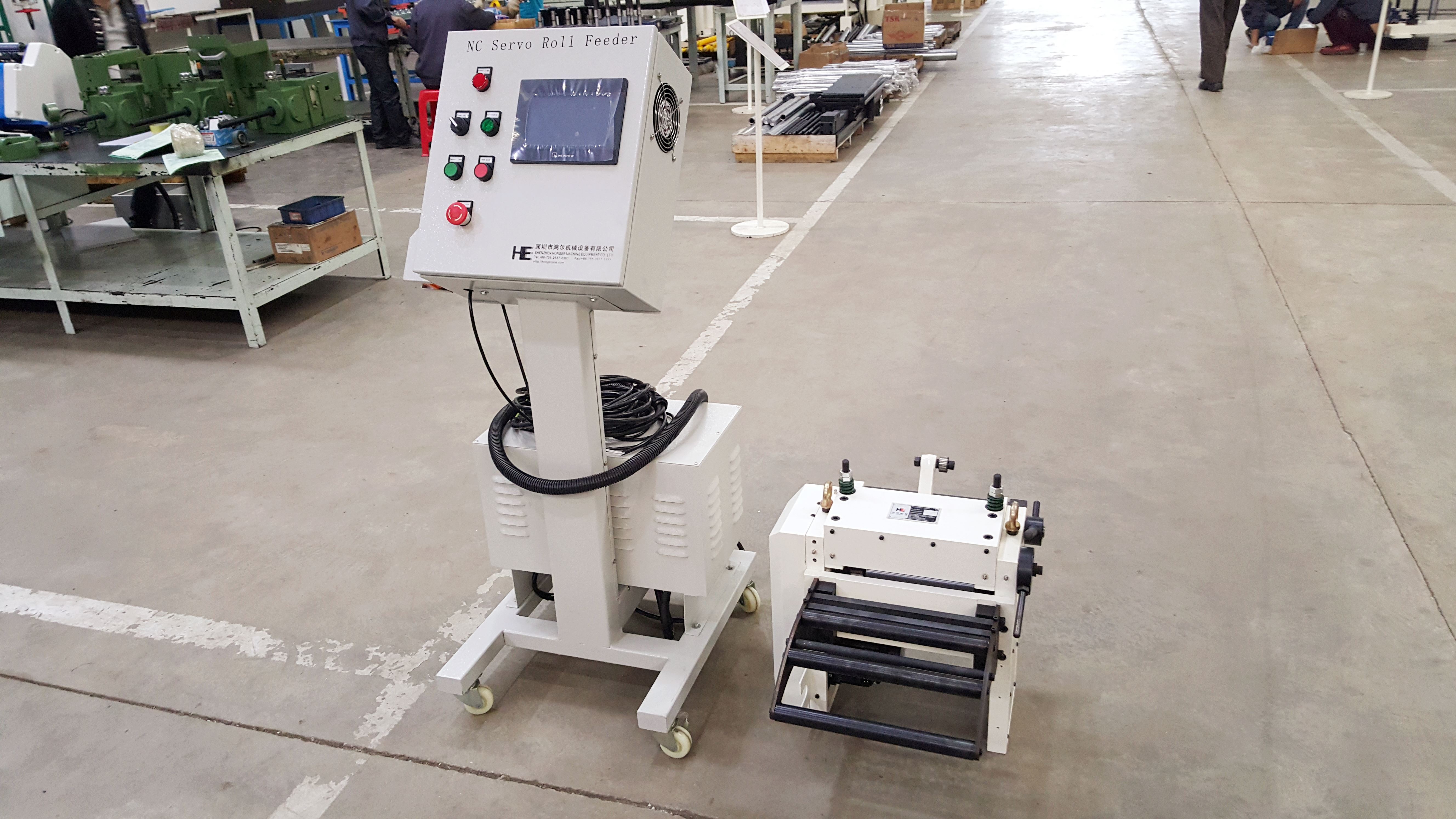

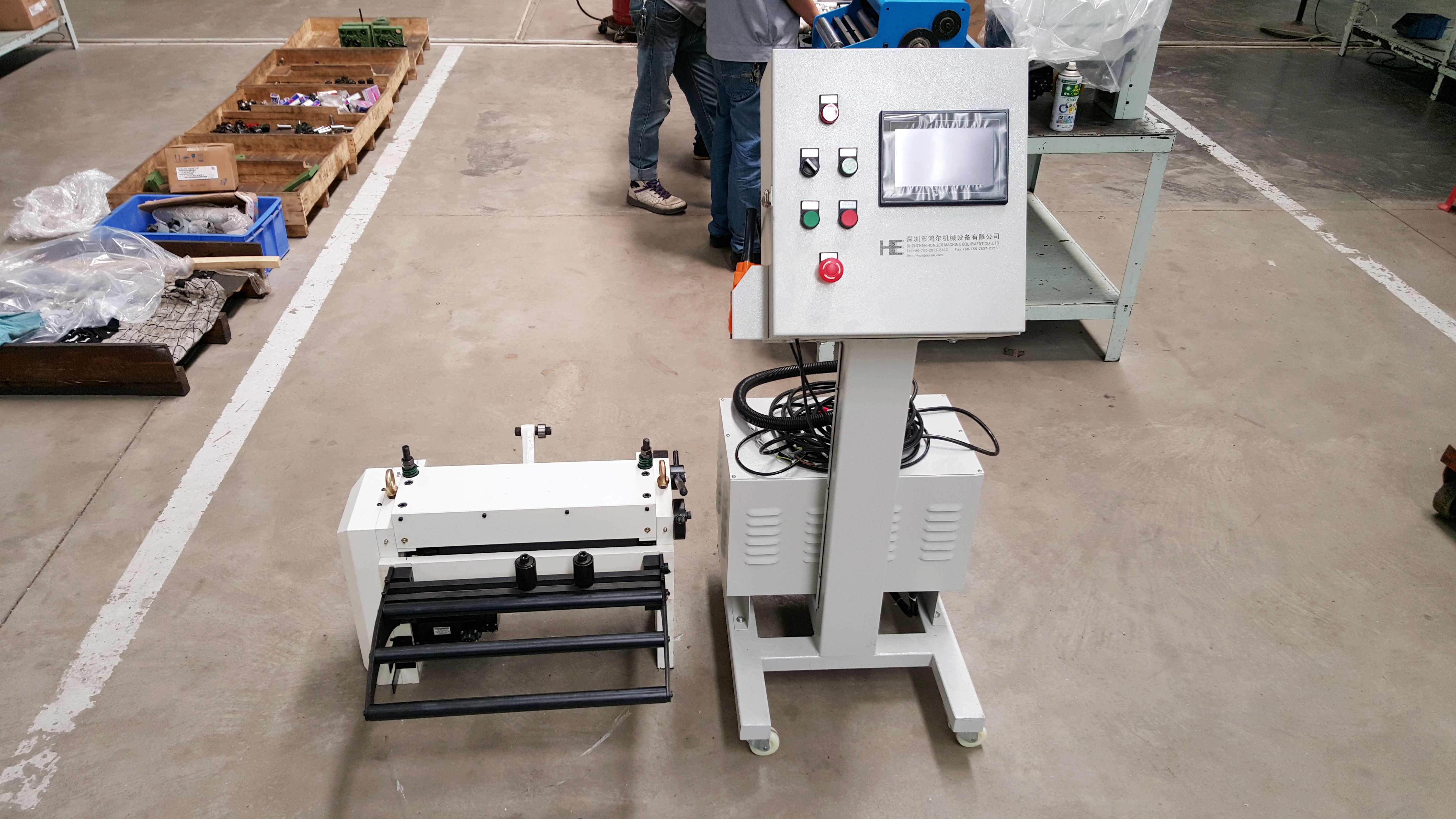

High Precision NCF-300 Servo Feeder Machine
NCF-300 Servo Feeder Machine
Steel Feeder Specification:
Max coil width: 300mm
Max feeding length: 9999.99mm
Coil thickness:0.1-1.6mm
Releasing system: Mechanical Release
Feeding roller: topØ65mm,bottonØ80mm
Feeding speed: 20m/min
Servo motor: 1.3kwYaskawa,Japan
PLC: Mitsubishi, Japan
Touch screen: Weinview, Taiwan
Feeding accuracy: ±0.1mm
Servo Drives: Yaskawa, Japan
Max feeding length: 9999.99mm
Coil thickness:0.1-1.6mm
Releasing system: Mechanical Release
Feeding roller: topØ65mm,bottonØ80mm
Feeding speed: 20m/min
Servo motor: 1.3kwYaskawa,Japan
PLC: Mitsubishi, Japan
Touch screen: Weinview, Taiwan
Feeding accuracy: ±0.1mm
Servo Drives: Yaskawa, Japan
Steel Feeder Features:
1.High-precision feeding: Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feed back system,so that the precision,can maintain with in +/-0.1mm.
2.Phase-style feeding function: It can input 20 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products(option).
3.Manual model: It can input 3 phases manual speed ,which can let used operate more easily and feed materials more accurancy.
4.High-frequency release device: It can set up release angle quickly, only match cam signal of and adjusted feed thickness can done.
5.Feeding length setting: Input feed length on the controller panel directly.
6. Feeding unit: The roll adopts middle -hollow style, being light and with low inertia for rotation. The surface hardness HRC60 nad hard chrome plated
