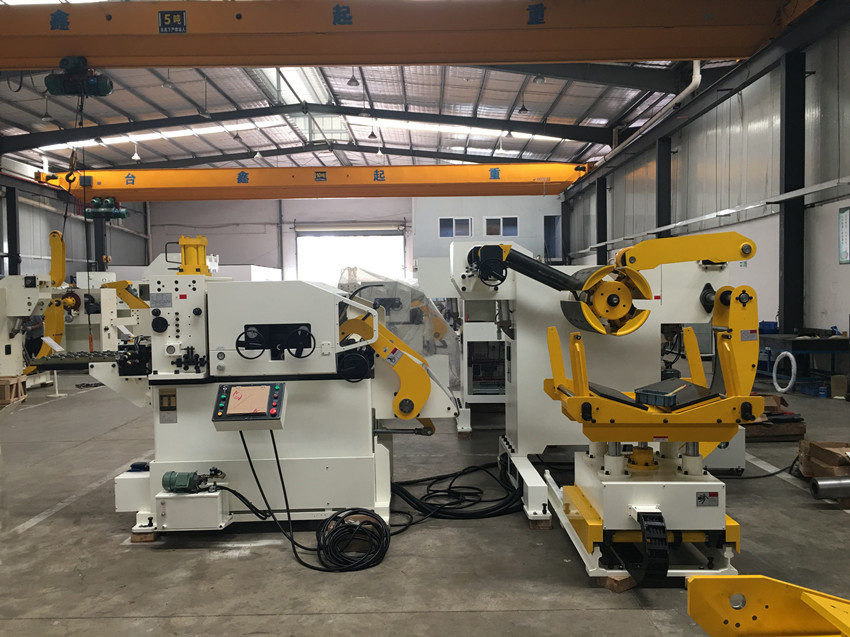

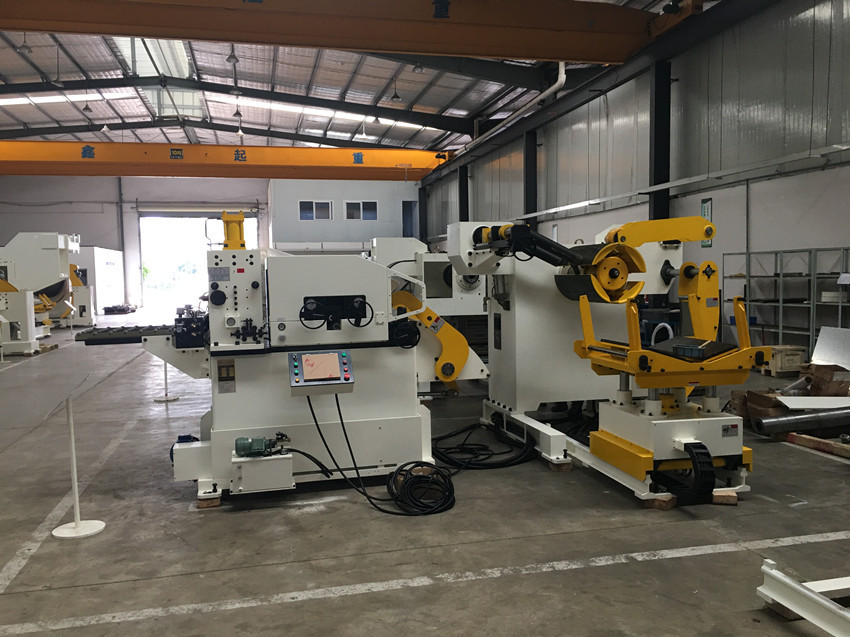

Automatic GLK3-600 3 in 1 Decoiler Straightener Feeder Machine
Automatic GLK3-600 3 in 1 Decoiler Straightener Feeder Machine
Compact fee ling(decoiler,straightener and feeder 3in1) is a common and important equipment to cooperate press machine to achieve automatic stamping purpose.it can save labor intensity and cost and improve production efficiency greatly.it is a perfect equipment for metal stamping manufacturers specially for automotive industry.
Specs
Yield strength:≤245N/mm²
Tensile strength:≤392N/mm²
Coil width:70-600mm
Coil thickness:0.5-4.5mm
Feeding length:0-500mm
Coil inside diamete:Φ480-Φ520mm
Coil outside diamete:Φ1200mm
Max coil weight:Max5000kg
Max feeding speed:22m/min
Feeding precision:±0.15mm
Straightener roller:Φ68mm*7Pcs
Feeding roller:Φ88mm*2Pcs
Auxiliary roller:0
Pressing arm:Pneumatic Type
Press roller motor:without
Uncoiler motor:2.2kw
Servo motor:4.4kw
Feeding line height:Motor-driven ,Feeding line height±100mm
Expansion way:Hydraulic Expansion
Feeding direction:From left to right
Pneumatic pressure:0.5MPa
Total power:≈8kw
Power:
Uncoilling direction:input from down to up
Hydraulic pressure:70kg/mm²
