[FU-1000] Horizontal Decoiler for High Speed Terminal Stamping
[FU-1000] Horizontal Decoiler for High Speed Terminal Stamping
![[FU-1000] Horizontal Decoiler for High Speed Terminal Stamping](https://icdn.tradew.com/file/201405/1556694/png/6994474.png?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![[FU-1000] Horizontal Decoiler for High Speed Terminal Stamping](https://icdn.tradew.com/file/201405/1556694/png/6994474.png?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[FU-1000] Horizontal Decoiler for High Speed Terminal Stamping](https://icdn.tradew.com/file/201405/1556694/jpg/6848663.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[FU-1000] Horizontal Decoiler for High Speed Terminal Stamping](https://icdn.tradew.com/file/201405/1556694/jpg/6848664.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[FU-1000] Horizontal Decoiler for High Speed Terminal Stamping](https://icdn.tradew.com/file/201405/1556694/jpg/6848665.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[FU-1000] Horizontal Decoiler for High Speed Terminal Stamping](https://icdn.tradew.com/file/201405/1556694/png/6848666.png?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
| Categories | Pallet Decoiler |
|---|---|
| Brand | HongEr |
| Model | FU-1000 |
| Max Coil Width | 150mm |
| Coil Thinkness | 0.1mm-1.0mm |
| Loading weight | 800kgs |
| Max Loading Height | 600mm |
| Max C.O.D | 1000mm |
| Feeding Speed | 24m/min |
| Update Time | June 9,2023 |
Detail Information
Production Description

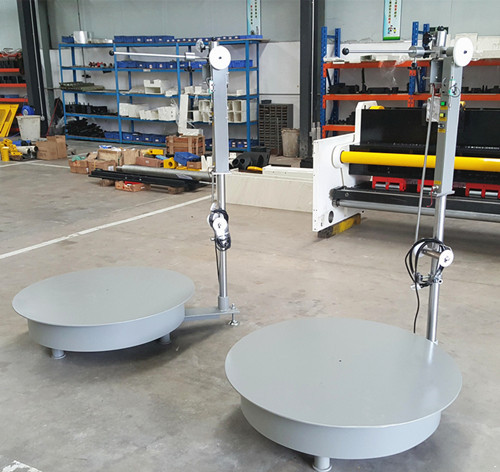

Horizontal Decoiler for High Speed Terminal Stamping
FU is HongEr pallet decoiler, ideal for high speed stamping line, such as terminal stamping, metal button and small electrical parts pressing line.
The feeding speed can reach 24m per min.
It can stock 4pcs of 150mm width coil at one time, and suitable for all kind of coil inner diameter.
FU-1000's Max. Coil O.D. can get 1000mm
specification
Model | Max Coil Width | Coil Thinkness | Loading weight | Max Loading Height | Max C.O.D |
Feeding Speed |
Motor |
FU-1000 | 150mm | 0.1mm-1.0mm | 800kgs | 600mm | 1000mm |
24m/min |
1 HP |
Application

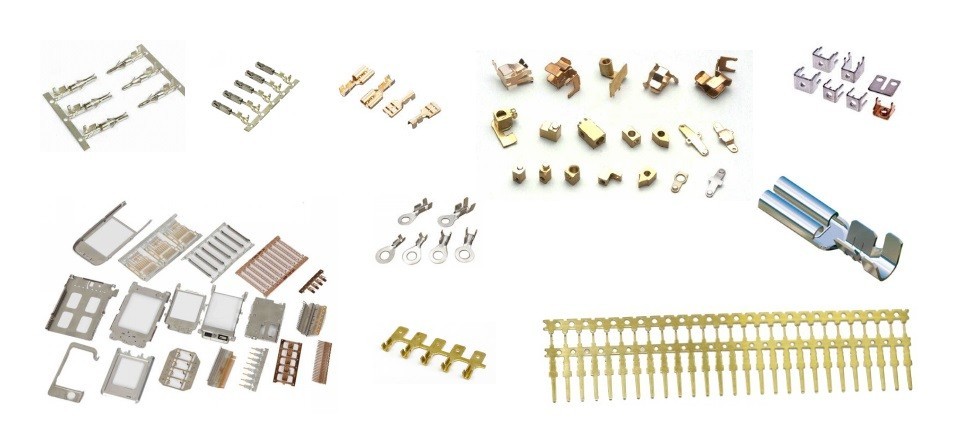

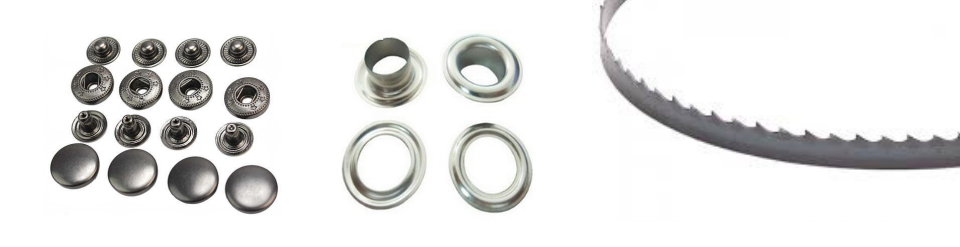

FU pallet decoiler is ideal for high speed stamping, such as terminal stamping, metal button and small electrical parts production line.

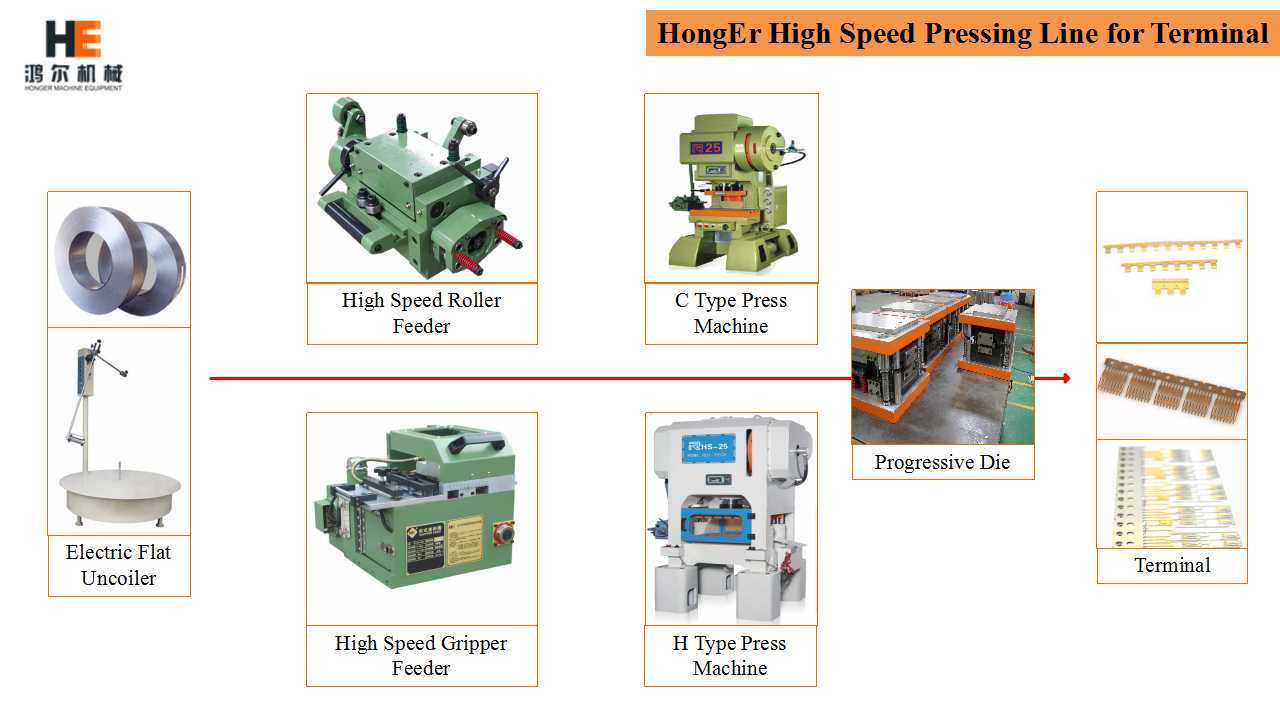

General configuration for terminal stamping line:

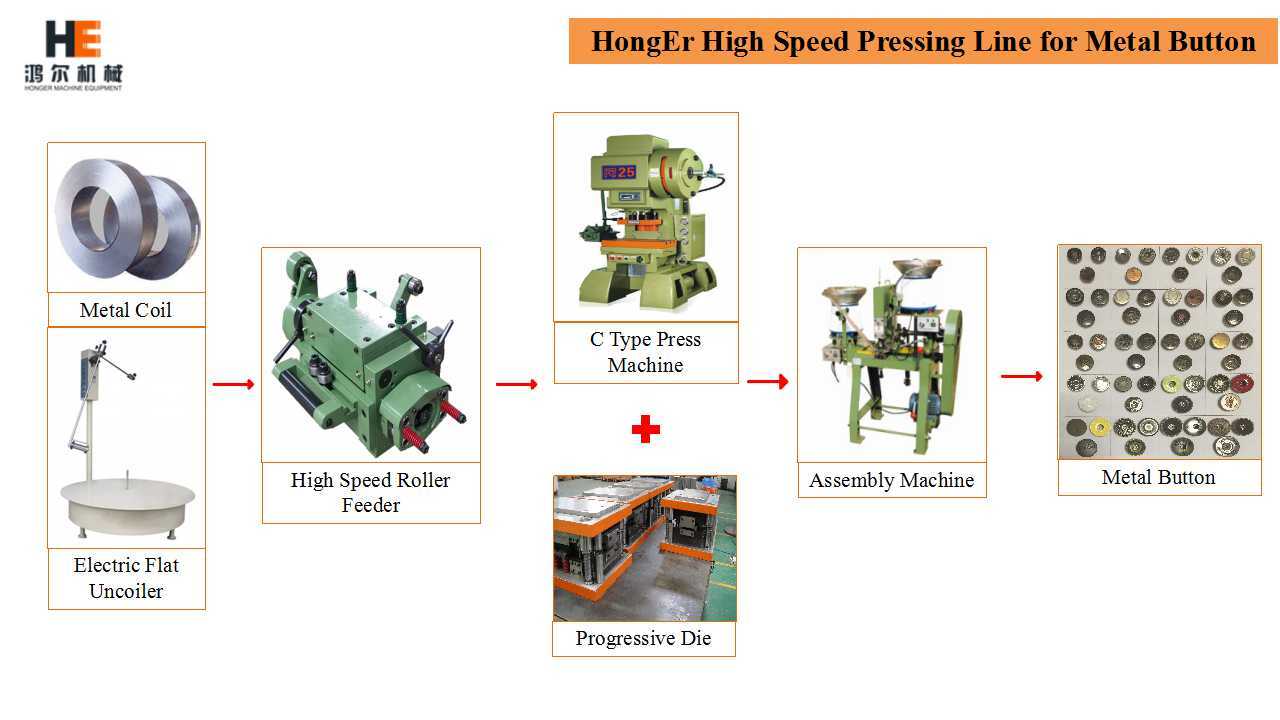

General configuration for metal button stamping line:

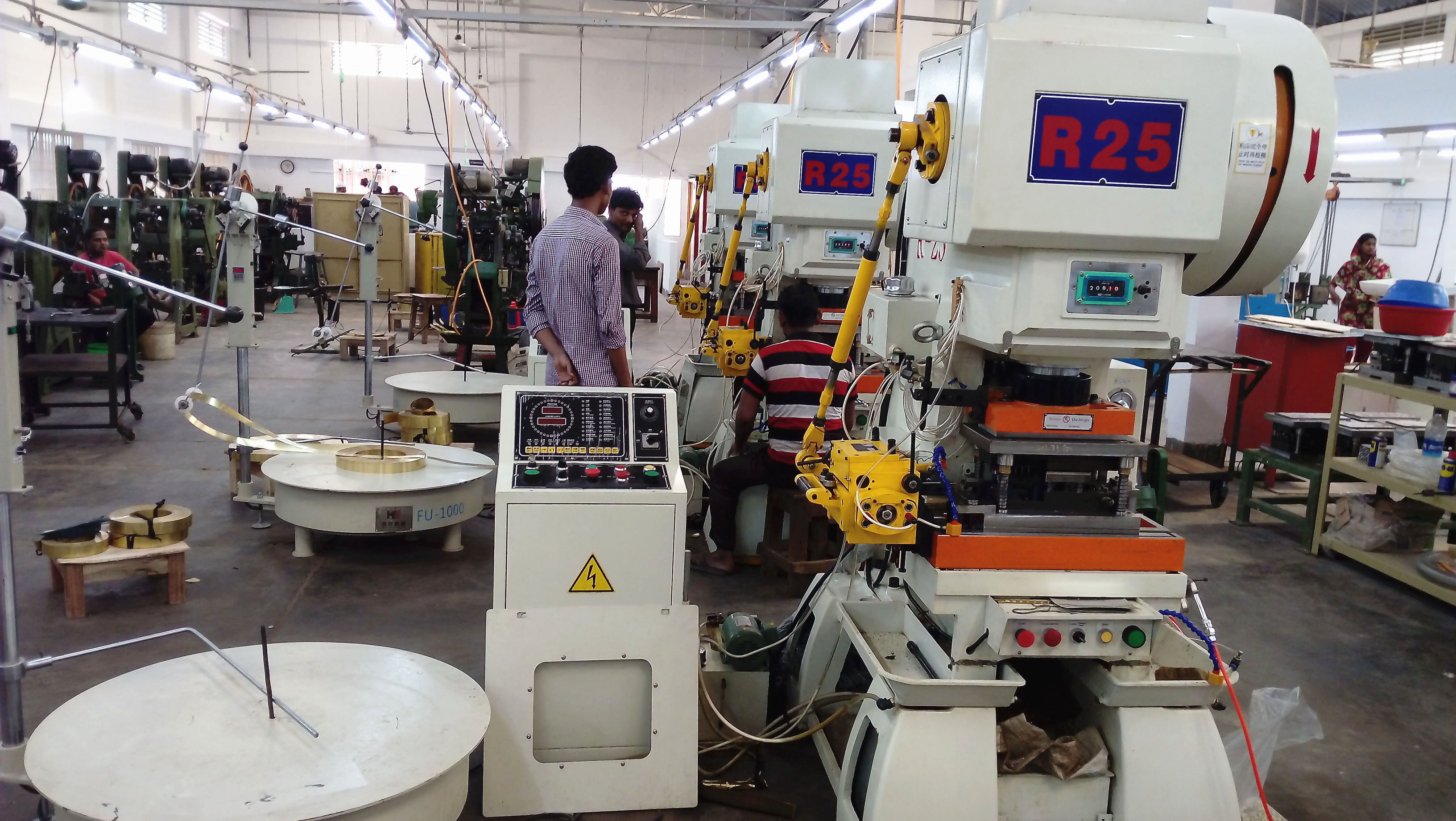

High Speed Metal Button Stamping Line to Bangladesh:
![[FU-2000] High Speed Coil Pallet for Eyelets Punching Buckles](https://icdn.tradew.com/file/201405/1556694/png/6994475.png?x-oss-process=image/resize,m_pad,l_120/quality,Q_90)
![[FU-500] Pallet Decoiler for metal buttons punching line](https://icdn.tradew.com/file/201405/1556694/png/6994473.png?x-oss-process=image/resize,m_pad,l_120/quality,Q_90)
