Expert Solution Designer For Coil Handling And Press Feeding Line
[FU-500] Pallet Decoiler for metal buttons punching line
![[FU-500] Pallet Decoiler for metal buttons punching line](https://icdn.tradew.com/file/201405/1556694/png/6994473.png?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![[FU-500] Pallet Decoiler for metal buttons punching line](https://icdn.tradew.com/file/201405/1556694/png/6994473.png?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[FU-500] Pallet Decoiler for metal buttons punching line](https://icdn.tradew.com/file/201405/1556694/jpg/6848773.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[FU-500] Pallet Decoiler for metal buttons punching line](https://icdn.tradew.com/file/201405/1556694/jpg/6848774.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[FU-500] Pallet Decoiler for metal buttons punching line](https://icdn.tradew.com/file/201405/1556694/jpg/6848775.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
![[FU-500] Pallet Decoiler for metal buttons punching line](https://icdn.tradew.com/file/201405/1556694/jpg/6757212.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90){kind=small}
| Categories | Pallet Decoiler |
|---|---|
| Brand | HongEr |
| Model | FU-500 |
| Max coil width | 0-150mm |
| Max coil thickness | 0.1-1.0mm |
| Load weight | 500kg |
| Load height | 600mm |
| Coil outter diameter | 800mm |
| Feeding speed | 24m/min |
| Motor | 0.5HP |
| Inverter | Without |
| FOB port | ShenZhen |
| Terms of Payment | L/C |
| Update Time | Sep 19,2024 |
Detail Information
Product Description

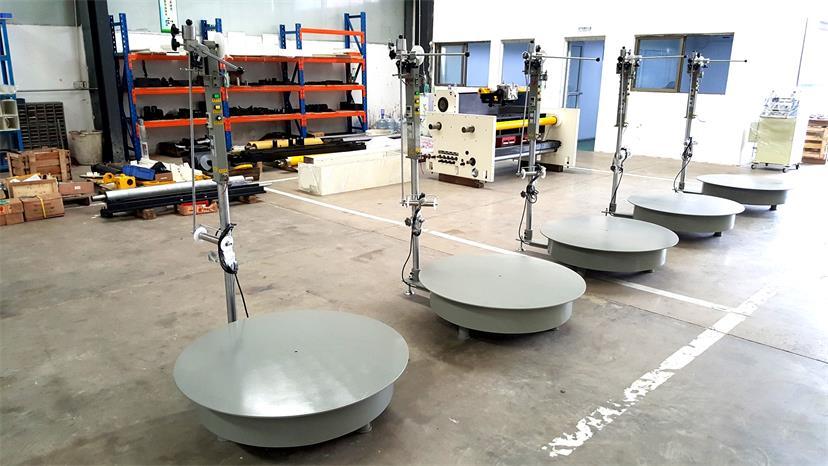

FU-500 Pallet Decoiler for metal buttons punching line
FU-500 is HongEr pallet decoiler, ideal for high speed stamping line, such as terminal stamping, metal button and small electrical parts pressing line.
The feeding speed can reach 24m per min.
It can stock 4pcs of 150mm width coil at one time, and suitable for all kind of coil inner diameter.
Specification
Model: FU-500 |
|
Max coil width | 0-150mm |
Max coil thickness | 0.1-1.0mm |
Load weight | 500kg |
Load height | 600mm |
Coil outter diameter | 800mm |
Feeding speed | 24m/min |
Motor | 0.5HP |
Application

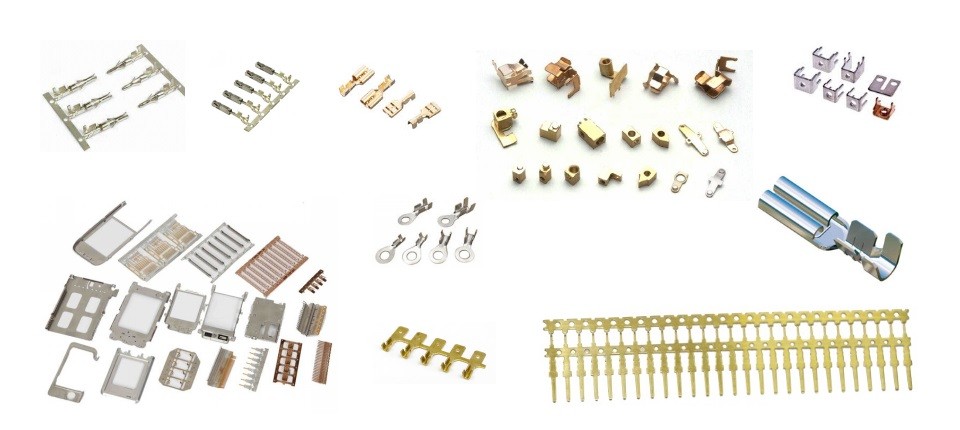

FU-500 pallet decoiler is ideal for high speed stamping, such as terminal stamping, metal button and small electrical parts production line.

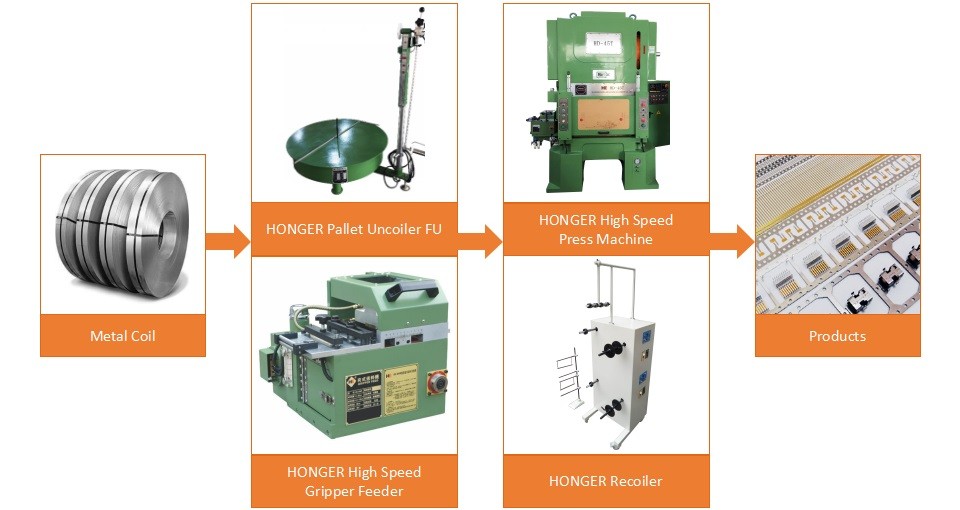

General configruation for terminal stamping line:

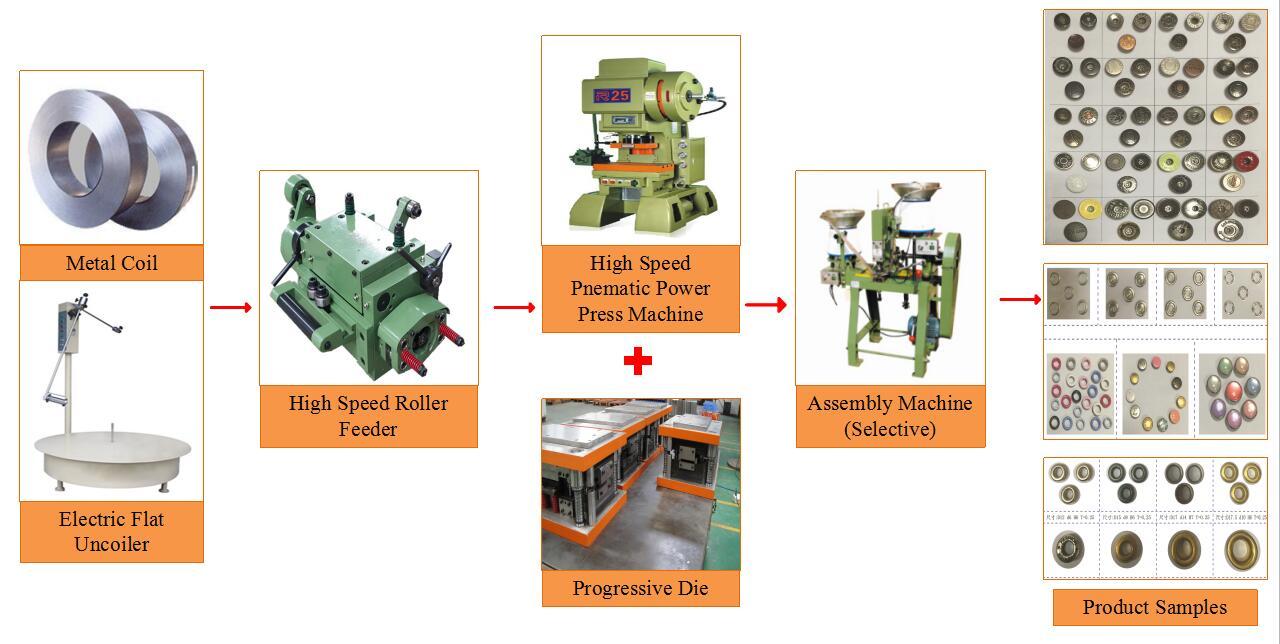

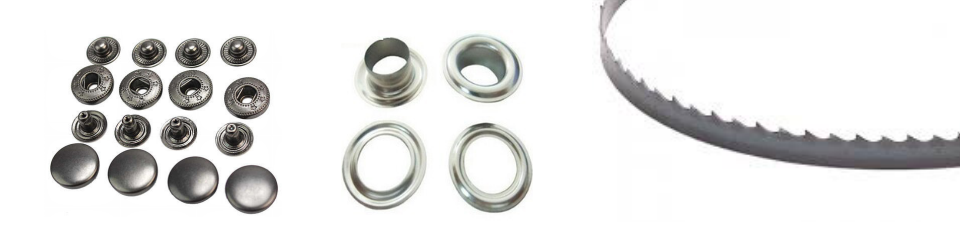

General configruation for metal button/snap button/socket/prong/stud stamping line:

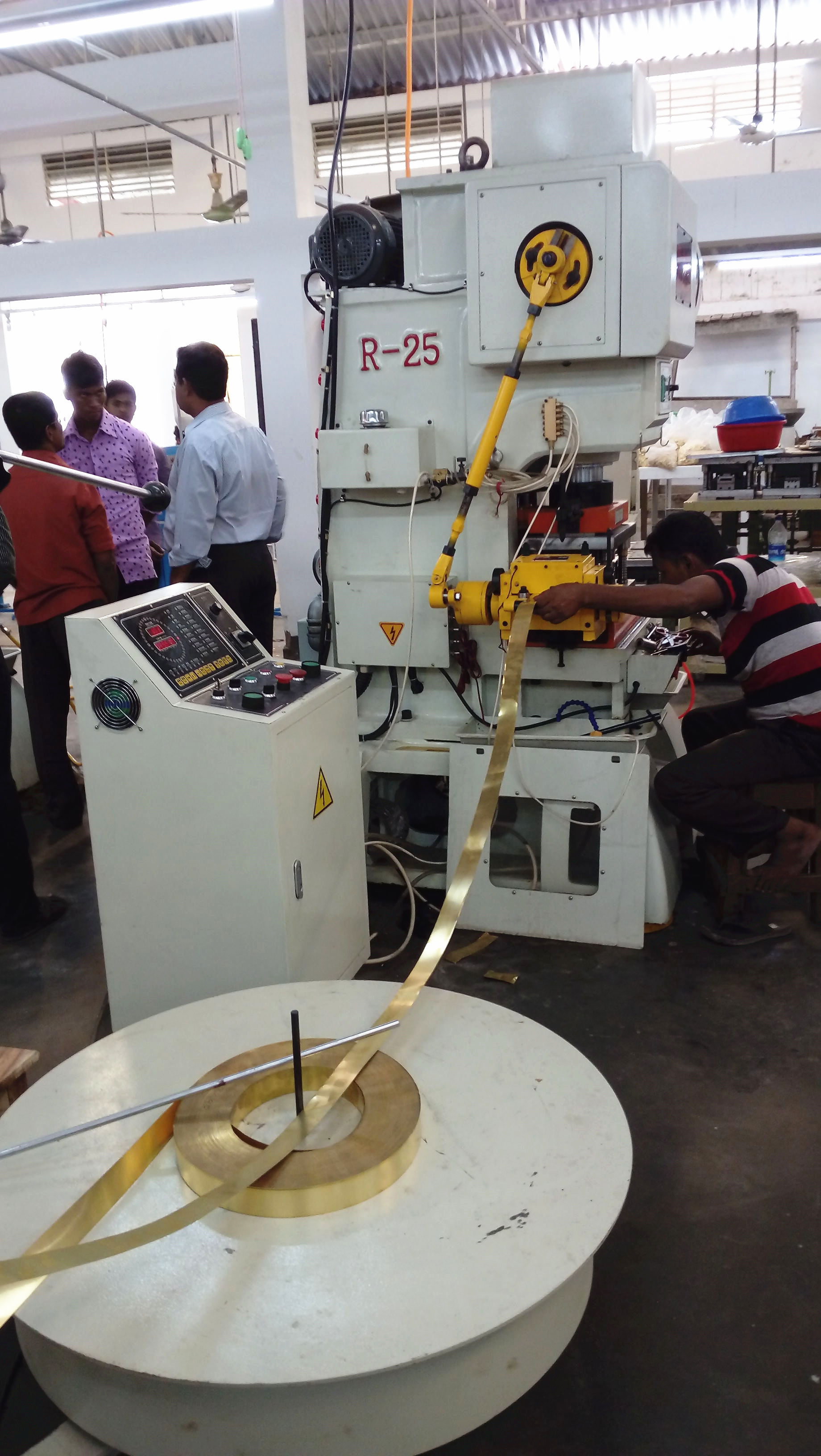

High Speed Metal Button Stamping Line to Bangladesh:
Packing

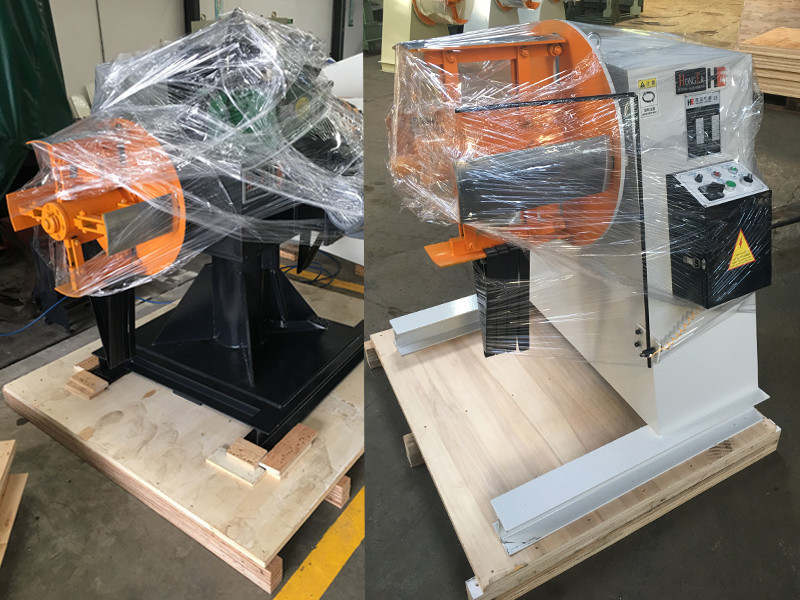

Machine wrapped up with plastic film Fix decoiler machine into wooden case Delivery packages to port
