GL-500 (Coil width 500mm, Thickness 0.3-3.5mm)
GL-500 (Coil width 500mm, Thickness 0.3-3.5mm)
| Categories | Combined Decoiler Straightener GL |
|---|---|
| Brand | HongEr |
| Model | GL-500 |
| Decoiling way | Without power |
| Decoiling Expansion way | Manual expansion |
| Press Method | The cylinder pressure |
| Straightening roller adjustment way | Worm gear adjustmen |
| Straightener rollerStraightener roller | φ48mm x 7 Pieces |
| Supporting tile | Three-blade type, tile radian fits coil inner diameter |
| e retaining frame | Solid structure, quick replacement, no damage to tiles |
| Input rollers | Enough strength from pneumatic pressing device to input material to leveling rollers |
| Speed control | Frequency conversion |
| Update Time | Oct 15,2024 |
Detail Information
Product Description

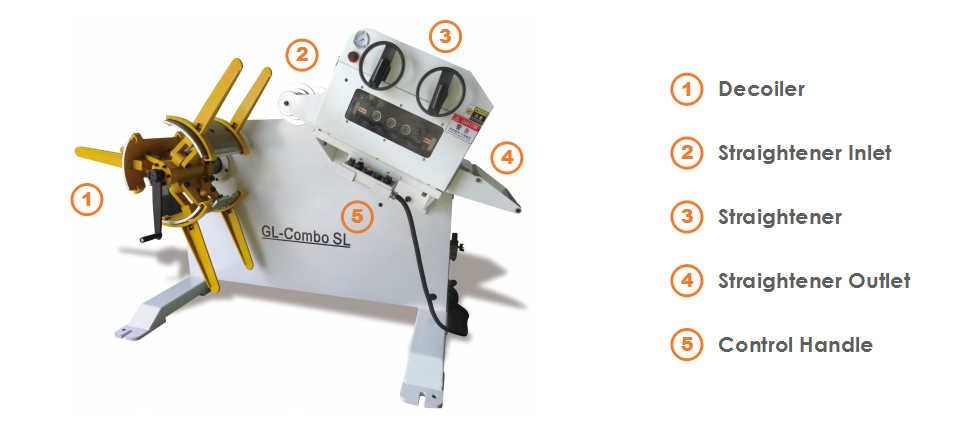

GL-500 Precision steel strip uncoiler and straightener machine
GL-500 is HongEr precision steel strip uncoiler and straightener machine.
It can decoiling and straightening sheet metal coil from thickness 0.3 mm to 3.5 mm.
With pneumatic pressure on straightener roller and worm gear adjusting, it can achieve presicion straightening performance for many different kind of material.
The combined structure guarantee a synchronization between decoiler and straightener and save work space.

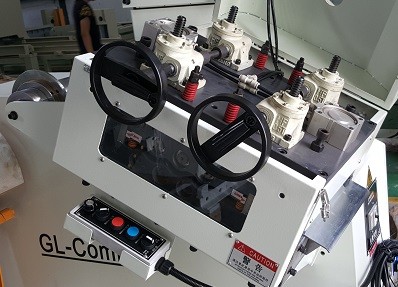

Pneumatic Rod Pressing
High Quality Straightening Rolls
Specification
Model |
GL-500 |
Max. Coil Width |
500 mm |
Strip Thickness |
0.3-3.5 mm |
Coil I.D. | 460-520 mm |
Coil O.D. | 1200 mm |
Loading Capacity | 2000 kgs |
Expansion | Manual |
Straightener Roll | Ø48mm*7pcs |
Uncoiler Motor | No |
Straightener Motor | 3 HP |
Roller Pressing | Pneumatic Rod |
Roller Adjustment | Eccentric turbine worm adjusting |
Inverter | Delta, Taiwan |
Feeding Speed | 15m/min |
Pressing Arm | Optional |
Application

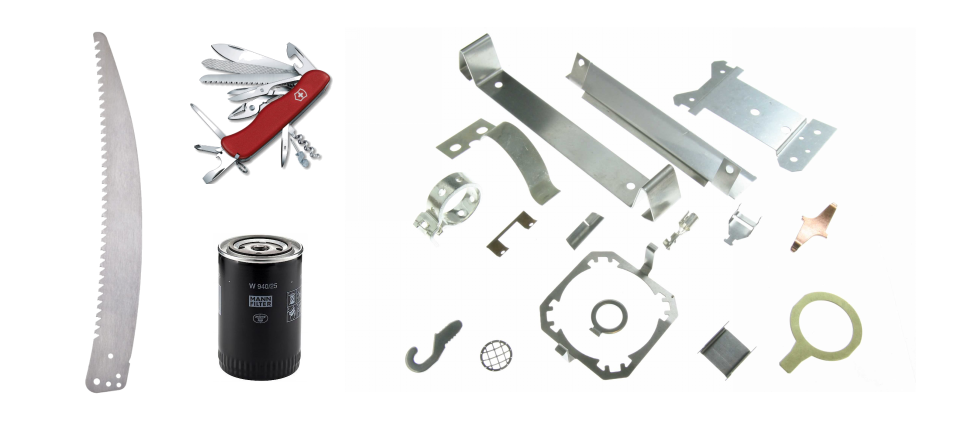

GL combined decoiler straightener can be found in many different product line such as oil filter production, saw blade stamping line, knives pressing line, car plate stamping etc.

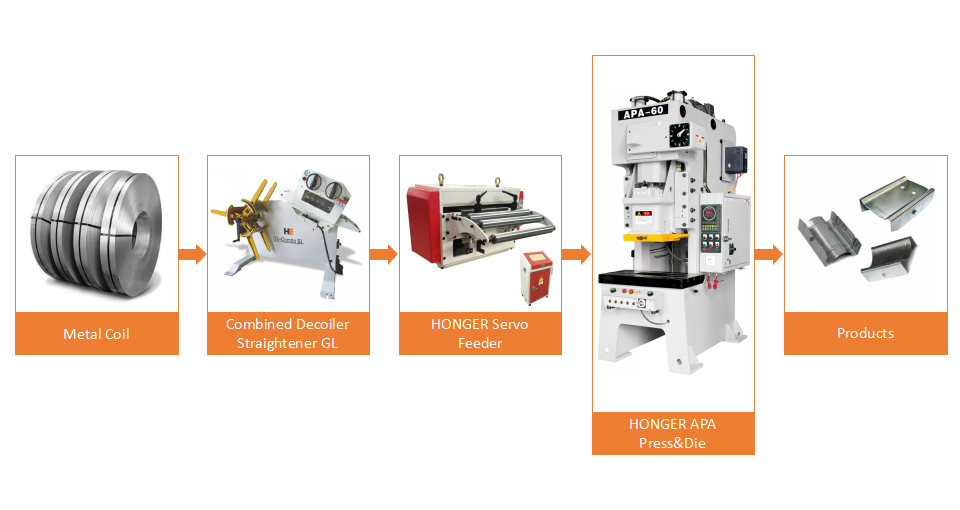

A general configuration for sheet metal parts stamping line:
4pcs of GL-200 combined decoiler straightener to Poland
