Non-motrozied Uncoiler for Roll Forming Line Roof Forming
![Non-motrozied Uncoiler for Roll Forming Line Roof Forming](https://icdn.tradew.com/file/201405/1556694/png/6848678.png?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![Non-motrozied Uncoiler for Roll Forming Line Roof Forming](https://icdn.tradew.com/file/201405/1556694/png/6848678.png?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Non-motrozied Uncoiler for Roll Forming Line Roof Forming](https://icdn.tradew.com/file/201405/1556694/jpg/6848679.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Non-motrozied Uncoiler for Roll Forming Line Roof Forming](https://icdn.tradew.com/file/201405/1556694/jpg/6848680.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Non-motrozied Uncoiler for Roll Forming Line Roof Forming](https://icdn.tradew.com/file/201405/1556694/jpg/6848681.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Non-motrozied Uncoiler for Roll Forming Line Roof Forming](https://icdn.tradew.com/file/201405/1556694/jpg/6760038.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | Double Decoiler |
---|---|
Brand | HongEr |
Model | DBMT-400 |
Decoiler structure | Welded with steel plates annealed and then polishe |
Max coil width | 400mm |
Max weight | 1500kg/per side |
Coil thickness | 0.1-1.6mm |
Coil inner diameter | 450-530mm |
Coil outter diameter | 1200mm |
Expansion way | Manual |
Update Time | Jul 27,2024 |
Detail Information
Product Description
![](https://icdn.tradew.com/file/201405/1556694/jpg/6848631.jpg?x-oss-process=image/quality,Q_90)

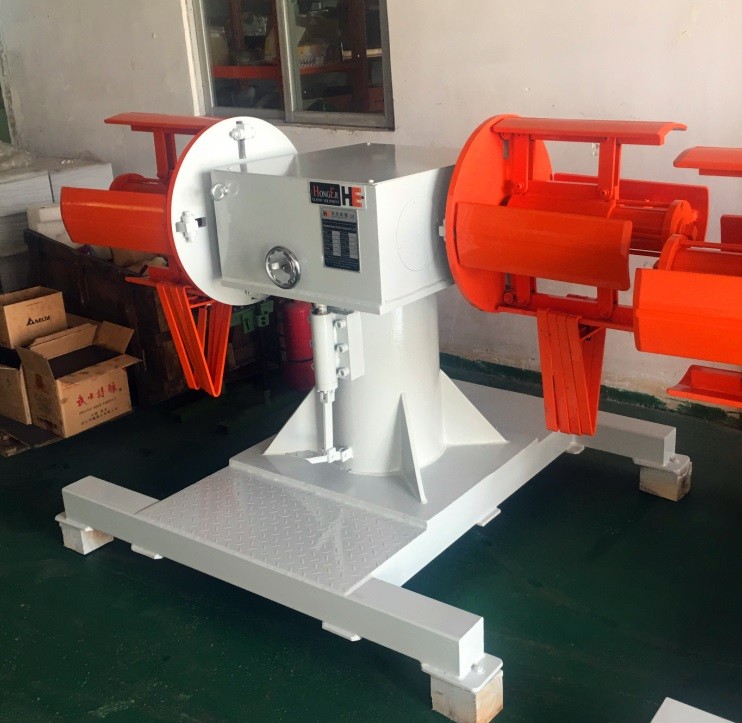

DBMT Non-Motorized Double Decoiler
Operation: Non-Motorized
Mandrel Expansion: Manually
Application: Press Feed, Fast Decoiling
Ideal for high speed lamination stamping line
![](https://icdn.tradew.com/file/201405/1556694/png/6760099.png?x-oss-process=image/quality,Q_90)
Specification
Model | DBMT-400 |
Coil Width | 400 mm |
Coil Thickness |
0.1 mm - 1.6 mm |
Coil I.D. | 450-530 mm |
Coil O.D. |
1200 mm |
Coil Weight | 1500 kgs per side |
Expansion | Manual Expanion |
Pressing Arm | No |
Power | No |
Inverter | No |
Packing And Delivery
![](https://icdn.tradew.com/file/201405/1556694/jpg/6760006.jpg?x-oss-process=image/quality,Q_90)
Machine wrapped up with plastic film
![](https://icdn.tradew.com/file/201405/1556694/jpg/6760007.jpg?x-oss-process=image/quality,Q_90)
Fix decoiler machine into wooden case
![](https://icdn.tradew.com/file/201405/1556694/jpg/6760008.jpg?x-oss-process=image/quality,Q_90)
Delivery packages to port
Application

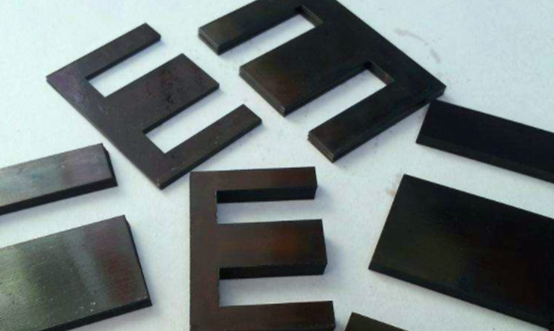

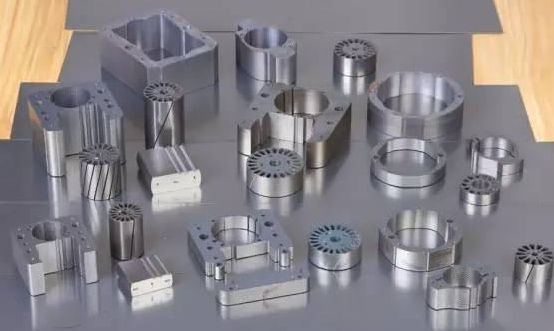

Most of our double decoilers are used in stator and rotor lamination stamping and EI laminations production line.
![](https://icdn.tradew.com/file/201405/1556694/png/6848649.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201405/1556694/png/6848650.png?x-oss-process=image/quality,Q_90)
General configruation for lamination stamping line:
![](https://icdn.tradew.com/file/201405/1556694/png/6760104.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201405/1556694/jpg/6848638.jpg?x-oss-process=image/quality,Q_90)

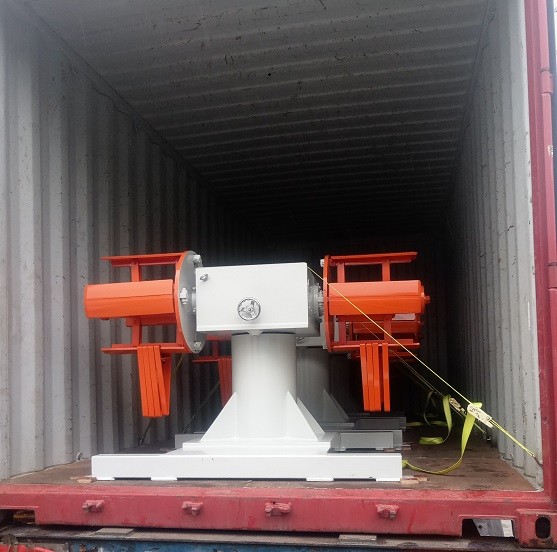

4Sets of DBMT-400 delivered to our Indonesia Customer
