[MT-700] Uncoiler machine with high quality uncoiler mandrel for coil handling process
[MT-700] Uncoiler machine with high quality uncoiler mandrel for coil handling process
![[MT-700] Uncoiler machine with high quality uncoiler mandrel for coil handling process](https://icdn.tradew.com/file/201405/1556694/png/6994515.png?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![[MT-700] Uncoiler machine with high quality uncoiler mandrel for coil handling process](https://icdn.tradew.com/file/201405/1556694/png/6994515.png?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![[MT-700] Uncoiler machine with high quality uncoiler mandrel for coil handling process](https://icdn.tradew.com/file/201405/1556694/jpg/6829504.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![[MT-700] Uncoiler machine with high quality uncoiler mandrel for coil handling process](https://icdn.tradew.com/file/201405/1556694/jpg/6829505.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![[MT-700] Uncoiler machine with high quality uncoiler mandrel for coil handling process](https://icdn.tradew.com/file/201405/1556694/jpg/6829506.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![[MT-700] Uncoiler machine with high quality uncoiler mandrel for coil handling process](https://icdn.tradew.com/file/201405/1556694/jpg/6822467.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | Manual Decoiler |
---|---|
Brand | HongEr |
Model | MT-700 |
Uncoiler boby | Welded with steel plates annealed and then polishe |
Uncoiler key components | High-strength castings and long-distance bearings |
Uncoiler load-bearing tiles | Four-blade type and the surfaces are chrome-plated |
Uncoiler spindle | 45# seamless steel tube. After being tempered and treated, it will not be deformed due to long-term load |
Uncoiler electric control box | Easy to operate |
Uncoiler sensor frame | Contact induction |
Terms of Payment | D/A, D/P, Western Union, T/T |
Update Time | Jul 27,2024 |
Detail Information
Applicable Material
![](https://icdn.tradew.com/file/201405/1556694/png/6823893.png?x-oss-process=image/quality,Q_90)
Material thickness Strip Width Coil Weight
0.1 mm to 2.0 mm 20 mm to 700 mm Up to 3000kgs
![](https://icdn.tradew.com/file/201405/1556694/jpg/6829485.jpg?x-oss-process=image/quality,Q_90)

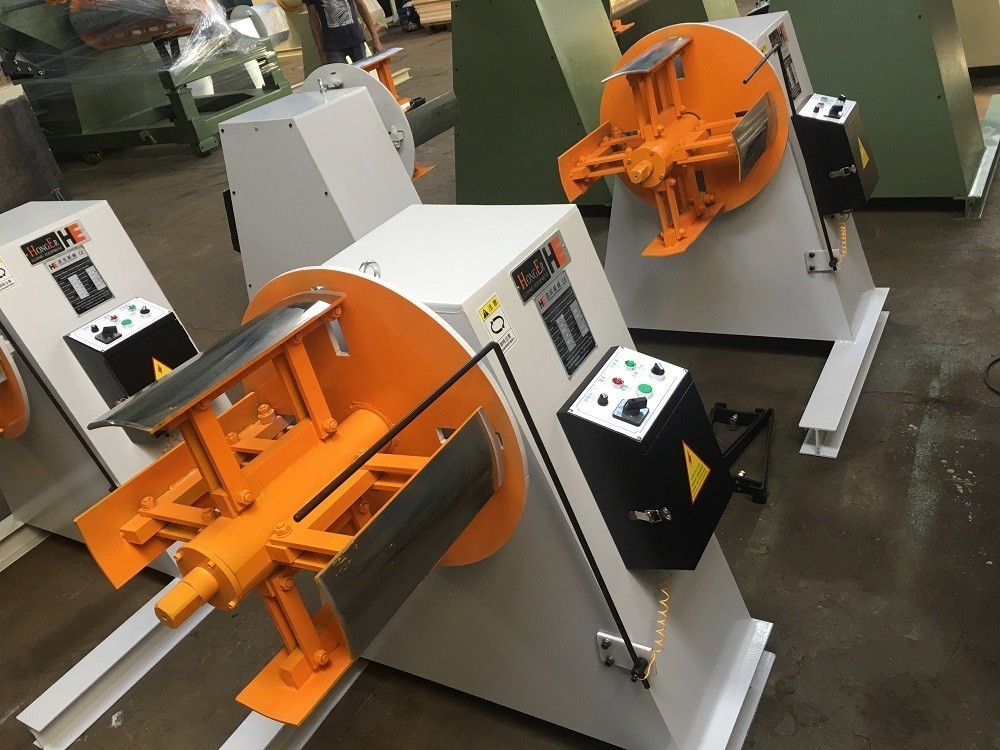

Uncoiler machine with high quality uncoiler mandrel for coil handling process
Coil Width:up to 1200mm
Material thickness:0.1mm-2.0mm
Coil weight:500-3000kgs
Application: Press Feed
Line speed 16 m/min
Pressing arm and coil car for optional
Suitable for most kind of coil material, such as CR Steel, HR Steel, Galvanized steel, Stainless steel, Pre-painted, Aluminum, Cooper etc.
![](https://icdn.tradew.com/file/201405/1556694/png/6822413.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201405/1556694/png/6822733.png?x-oss-process=image/quality,Q_90)
Model |
Coil width |
Coil Thickness |
Coil I.D. | Coil O.D. | Coil Weight | Expansion | Pressing Arm | Power | Inverter | Speed |
MT-700 |
700 |
0.1 mm-2.0 mm |
450-530 mm | 1200 mm | 3000 kgs | Manual expansion | Optional | 3 HP | Without | 16m/min |
![](https://icdn.tradew.com/file/201405/1556694/png/6823966.png?x-oss-process=image/quality,Q_90)
Machine wrapped up with plastic film Fix decoiler machine into wooden case Delivery packages to port
![](https://icdn.tradew.com/file/201405/1556694/png/6824002.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201405/1556694/jpg/6829498.jpg?x-oss-process=image/quality,Q_90)

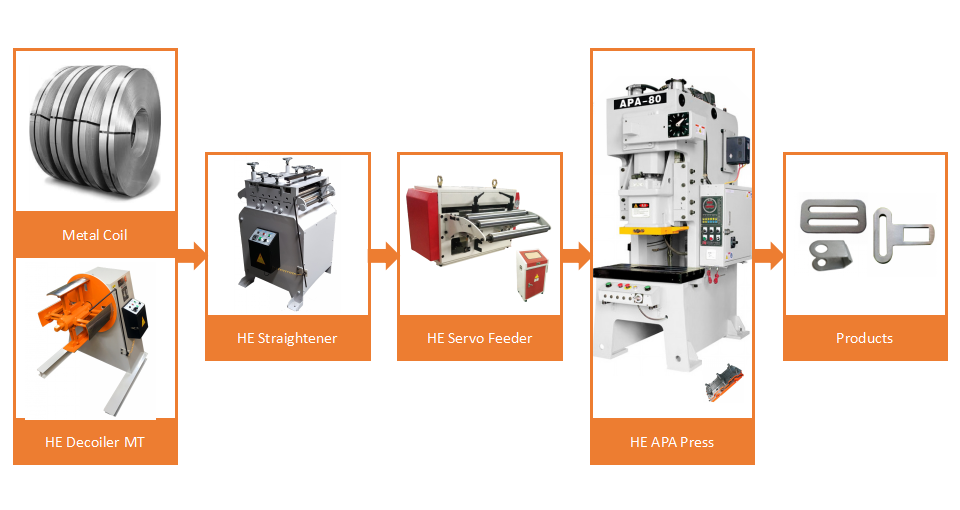

Most of our decoilers are used in press feed
Honger also provide customization decoilers for
cut to length line,
coil slitting line,
roll forming line.
![](https://icdn.tradew.com/file/201405/1556694/png/6822431.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201405/1556694/jpg/6829502.jpg?x-oss-process=image/quality,Q_90)

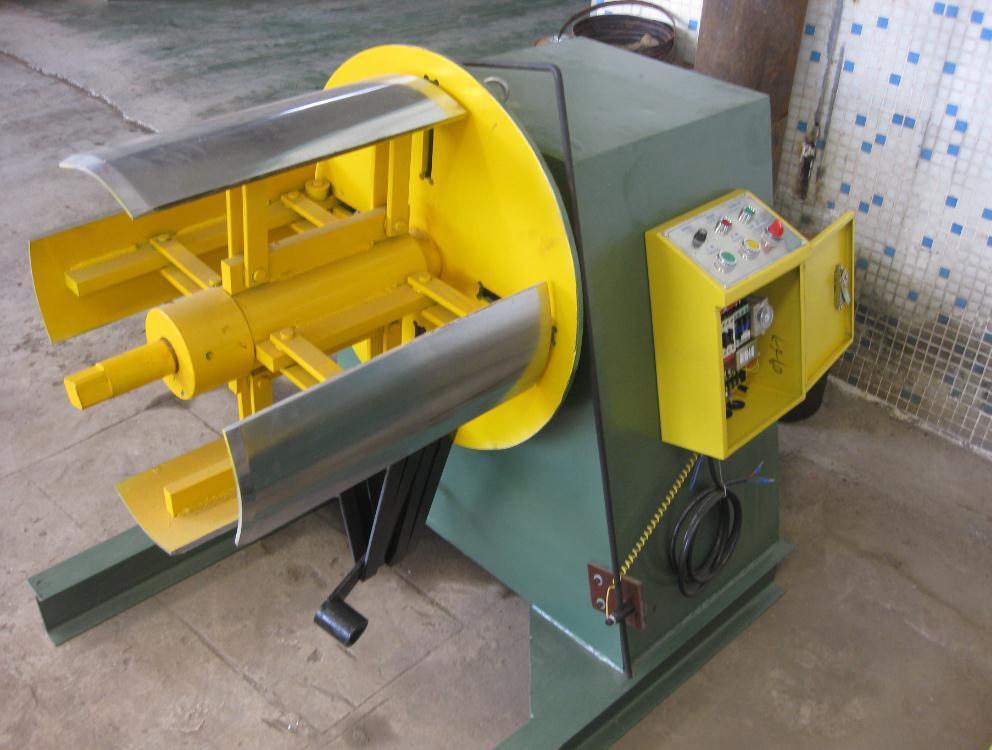

Motorized Decoiler
MT-500 to Australia
