Expert Solution Designer For Coil Handling And Press Feeding Line
MT (Motorized Manual Decoiler)
| Categories | Decoiler |
|---|---|
| Brand | HongEr |
| Model | MT-200 |

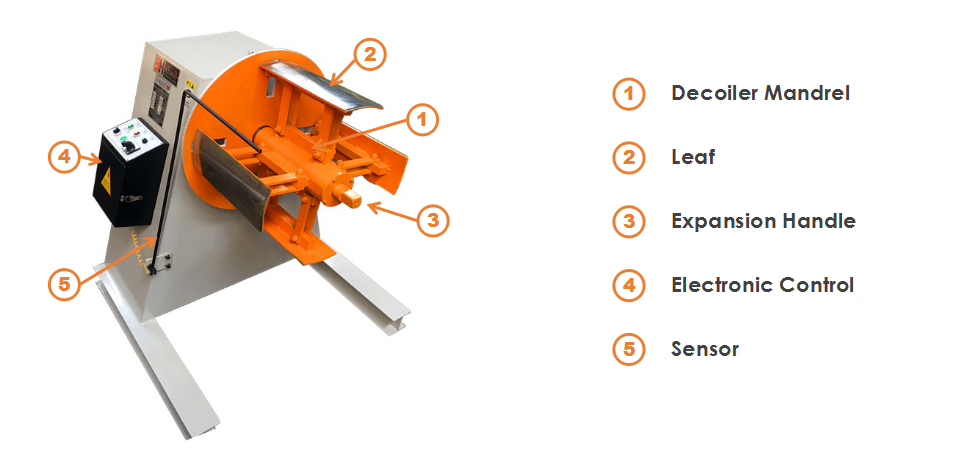

| Uncoiler boby | Welded with steel plates annealed and then polishe |
| Uncoiler key components | High-strength castings and long-distance bearings |
| Uncoiler load-bearing tiles | Four-blade type and the surfaces are chrome-plated |
| Uncoiler spindle | 45# seamless steel tube. After being tempered and treated, it will not be deformed due to long-term load |
| Uncoiler electric control box | Easy to operate |
| Uncoiler sensor frame | Contact induction |
| Update Time | Dec 10,2023 |
Detail Information
Applicable Material
Material thickness
0.35mm to 1.6 mm
Strip Width
20 mm to 200 mm
Coil Weight
Up to 500kgs
Product Description

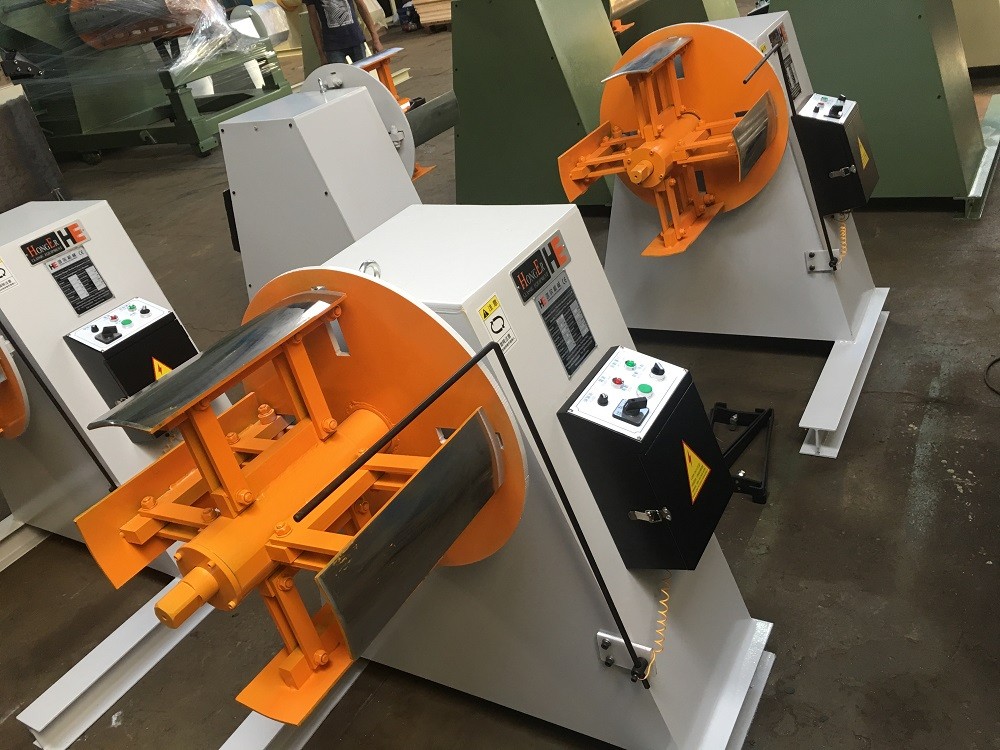

MT-200 Motorized decoiler with
manual expansion
Operation: Motorized
Mandrel Expansion: Manually
Application: Press Feed
Uncoiling speed 16 m/min
Pressing arm and coil car for optional
Suitable for most kind of coil material, such as CR Steel, HR Steel, Galvanized steel, Stainless steel, Pre-painted, Aluminum, Cooper etc.
Specification
Model |
MT-200 |
MT-300 | MT-400 | MT-500 | MT-600 | MT-700 |
MT-800 |
Coil Width | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm | 700 mm | 800 mm |
Coil Thickness |
0.1 mm - 2.0mm |
||||||
Coil I.D. | 450-530 mm | ||||||
Coil O.D. |
1200 mm |
||||||
Coil Weight | 500 kgs | 800 kgs | 1000 kgs | 1500 kgs | 2000 kgs | 3000 kgs | 3000 kgs |
Expansion | Manual Expanion | ||||||
Pressing Arm | Optional | ||||||
Power | 0.5 HP | 1 HP | 2 HP | 3 HP | |||
Inverter | Without | ||||||
Speed | 16 m/min | ||||||
Packing
Machine wrapped up with plastic film
Fix decoiler machine into wooden case
Delivery packages to port
Application

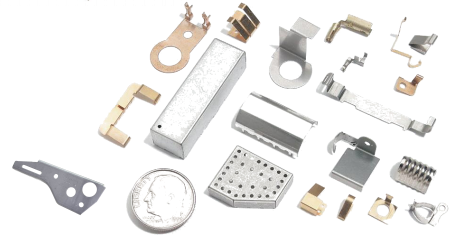

Most of our decoilers are used in press feed.
HongEr also provide customization decoilers for cut to length line,
coil slitting line,
roll forming line.
General configruation for press feeding line

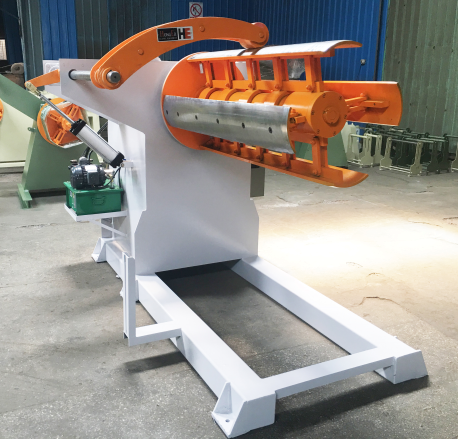

Customized Decoiler
MT-1300
with pressing arm
to
United Kingdom
