GLK4-800 3 in 1 decoiler straightener feeder machines compact feeder machine to cooperate with pressing machine

GLK4-800 3 in 1 decoiler straightener feeder machines compact feeder machine to cooperate with pressing machine
Issue Time:2018-06-05

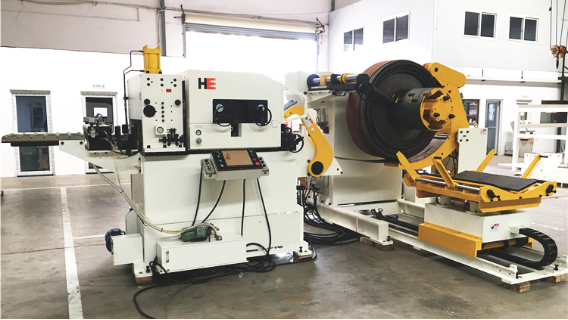

GLK4-800 high performance 3 in 1 decoiler straightener feeder machine for pressing machine
Features:
1,Working space will be minimized by innovative structure of the machine.
2,Human-computer interface is adopted to simplify operating and ease of feeding.
3,Japanese motors are adopted to guarantee high precision feeding.
4,Feeding and straightening rollers have been characterized by high hardness,good abrasion resistance and long lifespan after special heat treatment.
5,Various options are available for different sizes of punching machines and operational requirements. Special standard is also accepted.
6,Eleven working rollers have been characterized by high rigidity and high flatness.
GLK4 introduction
Capacities:
Coil width: 70mm-1300mm
Material thickness: 0.6mm-6.0mm

Coil weight: 5T/7T

Line speed: 20m/min

Line length: 5m

Material: CR Steel, HR Steel, Galvanized Steel etc.

Send the inquiry, Honger is ready to design the best machine solution for you!
