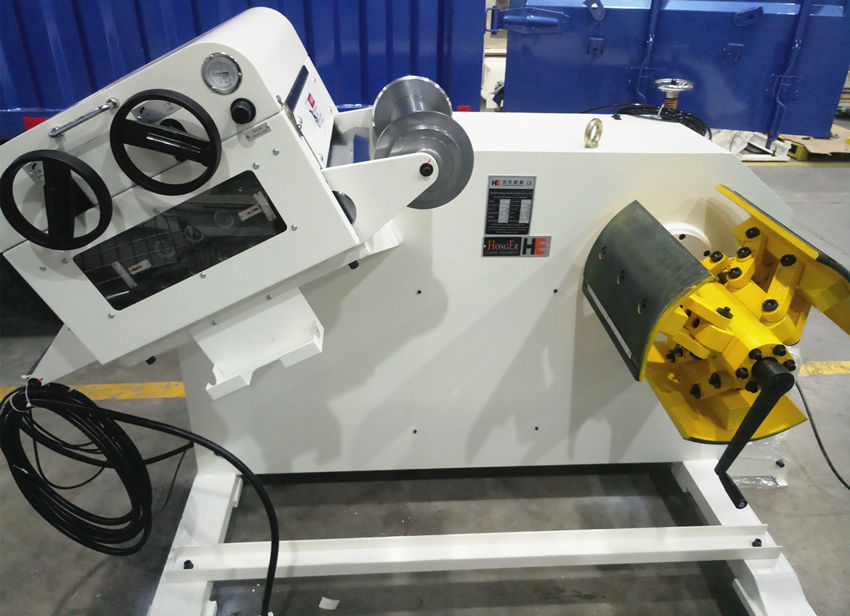

Honger Decoiler and Straightener 2 in 1 Machine GL-300 to Hungary
Honger Decoiler and Straightener 2 in 1 Machine GL-300 to Hungary
Honger combo decoiler straightener machine is widely used in metal stamping coil feeding line. With high precision working performance and convenient operating system, honger decoiler straightener 2 in 1 machine is the best choice for precise metal components/parts.
It is suitable to produce hardware products for small home appliance, mobile and computer accessories, auto parts, kitchenwares, transportation and contruction samll tools, etc.
It is suitable to produce hardware products for small home appliance, mobile and computer accessories, auto parts, kitchenwares, transportation and contruction samll tools, etc.
GL-300
Space-saving and easy-operating.
Coil width:300mm
Coil thickness:0.3-3.2mm
Coil inside diameter:460-520mm
Coil outside diameter:1200mm
Loading capacity:1000kg
Expansion style:Manual Expansion
Straightener roller:Ø48mm*7pcs
Uncoiler Motor:without
Straightener Motor:2HP
Roller pressing way:Pneumatic rod
Roller adsjuting way:Eccentric turbine worm adjusting
Inverter:Delta,Taiwan
Feeding speed:15m/min
Pressing arm:Without
Coil thickness:0.3-3.2mm
Coil inside diameter:460-520mm
Coil outside diameter:1200mm
Loading capacity:1000kg
Expansion style:Manual Expansion
Straightener roller:Ø48mm*7pcs
Uncoiler Motor:without
Straightener Motor:2HP
Roller pressing way:Pneumatic rod
Roller adsjuting way:Eccentric turbine worm adjusting
Inverter:Delta,Taiwan
Feeding speed:15m/min
Pressing arm:Without
