NCF (Servo Roll Feeder with Mechanical Release)
|Categories||Mechanical NC Feeder|
|Album||View larger image|
|NC servo feeder can be used in conjunction||Punching machine, shearing machine,hydraulic press|
|Feeding pitch||0-10m adjustable|
|Multi segment feeding function||In cooperation with multi station mold to complete diversified processing|
|Programmed induction feeding||Connected to punch cam, adjustable feeding and relaxation time|
|Installaton of material end detection device||Automatically stop the press when there is no material|
|Operation interface||7 inch touch screen|
|Feeding precision||0.02mm( when the mold has a positioning pin)|
|Four models for different thickness||0.1-1.6mm,0.2-3.2mm,0.5-4.5mm,1.0-6.0mm|
|Easy to operate||Parameters such as feeding length and speed can be set arbitrarily|

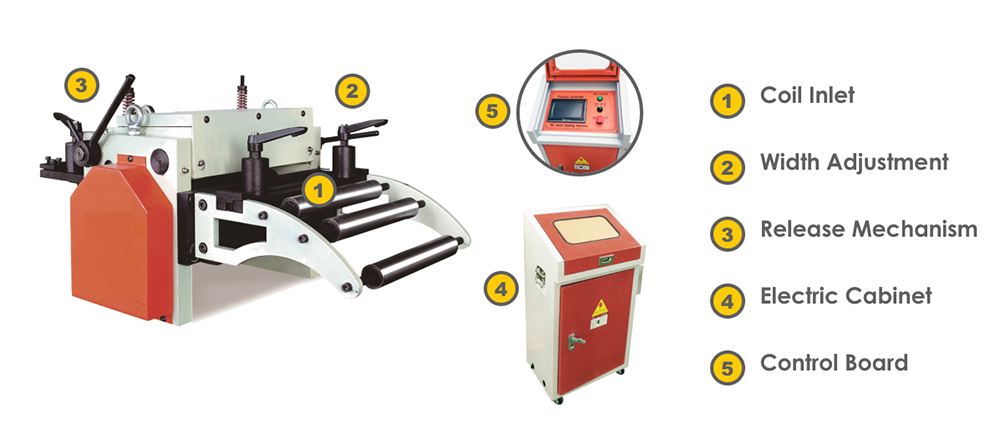

NCF SERVO FEEDER
NCF is HongEr SERVO FEEDER with mechanical release.
It can feeds sheet metal coil material thickness 0.1-1.6mm, with max. feeding speed 27m/min.
Thanks to Yaskawa servo system and Mitsubishi PLC, it can ensure +/-0.01mm feeding precision.
A mounting plate can help the servo feeder install to press machine easily.
Or you can choose a separate bracket for better stability.
Coil Width to
Mechanical Type Releasing System
Upper Roll Ø65mm, Bottom Roll Ø80mm
Max. 9999.99 mm
Max. 20 m/min
± 0.1 mm
NCF servo feeder can be found in many different product line such as oil filter production, saw blade stamping line, knives pressing line, car plate stamping etc.
RNC-400 servo feeder working with water jet cutting machine in New Zealand
RNC-300 servo feeder with KOMATSU press in our customer's new workshop
Send the inquiry, Honger is ready to design the best machine solution for you!
