GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)

GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)

GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)
GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)GLK2-800 Decoiler Straightener Feeder (0.3-3.2mm)
CategoriesGLK2 (0.3-3.2mm) Coil Feeding Line
AlbumView larger image
BrandHongEr
ModelGLK2-800
Applicable materialSPHC.SPHD,SPCC,SPCD,SPCE,Galvanized coil
Coiler carSafe and convenient coil loading operation with the assist
Uncoiler shaft synchronizes with feeder machineAdopting frequency control and gear motor.
Power driven pressing armprevents the material from being scattered and to assist the uncoiling
Uncoilling directionFrom bottom to up input coil
Straightener rollerΦ48mm x 11 pieces ,top 6/ bottom5,
Straightener number adjustment wayWorm adjusting by Manual
Straightener roller drive waySide gear drive
Straightening precision≤1.5mm/㎡
Feeding line height adjust wayMotor-driven , Feeding line height ±100mm
Update Time2019-12-06
Detail Information
Product Description
Coil handling system deociler straightener feeder 3 in 1 machine GLK2-800

Capacities
Coil width: 50mm-800mm

Material thickness: 0.3mm-3.2mm

Coil weight: 5Ton

Line speed: 20m/min

Line length: 3.2m

Material: CR Steel, HR Steel, Stainless, Aluminum, Copper etc.

1. Coil Car
Hydraulic power, wear-resisting surface
2. Decoiler Mandrel
Hydraulic expansion, delta inverter
3. Pressing Arm
Coil well-knit, no disperse
4. "A" frame
Locating coil, avoid coil shuffing
5. Coil Inlet
Supporting arm for optional

6. Control Board
Weinview touchscreen
7. Straightening Part
11pcs GCr15 straightener rolls
8. Handwheel
Precision straightening value adjustment
9. Outlet Support Bracket
Adjustable in length
10. Optional Lubrication Unit
Automatic lubrication control, 20L
11. Servo System
Yaskawa servo motor and servo dirve
Specification
Model
GLK2-800
Material
Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Painted Steel, Stainless Steel, Copper, Aluminum etc.
Coil Width
50-800 mm
Strip Thickness
0.3-3.2 mm
Feeding Length
Max. 9999.99 mm
Coil I.D.
Φ480-Φ520
Coil O.D.
Φ1200
Loading Capacity
5000 kgs
Feeding Speed
Max. 20m/min
Feeding Precision
±0.1mm
Straightener Rolls
Φ68mm * 7pcs
Pinch Rolls
Φ88mm * 2pcs
Pressing Arm
Pneumatic Type
Expansion
Hydraulic Expansion
Uncoiler Motor
2.2 Kw
Servo Motor
4.5 Kw
* Machine Spec can be customized according to your specific demands.
* Coil Feeding line for high strength material, please check our GLK-H series
Application

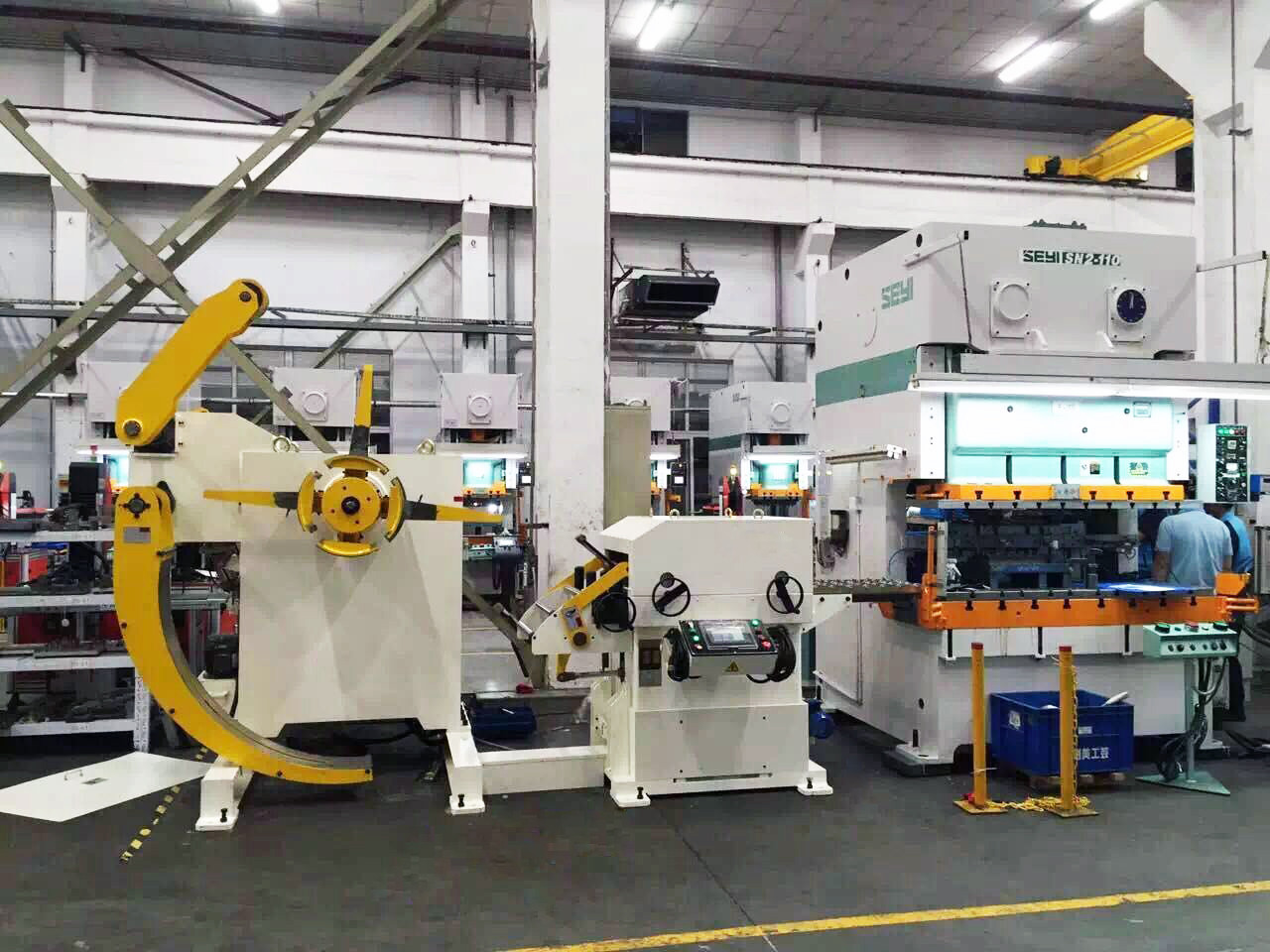

GLK2-800 decoiler straightener feeder with SEYI progressive stamping press:
Electronic components, Electrical accessories, Household appliance, Hardware tools
