RNC-600 (Thickness 0.2-3.2mm, Width 600mm)

RNC-600 (Thickness 0.2-3.2mm, Width 600mm)

RNC-600 (Thickness 0.2-3.2mm, Width 600mm)
RNC-600 (Thickness 0.2-3.2mm, Width 600mm)RNC-600 (Thickness 0.2-3.2mm, Width 600mm)RNC-600 (Thickness 0.2-3.2mm, Width 600mm)RNC-600 (Thickness 0.2-3.2mm, Width 600mm)RNC-600 (Thickness 0.2-3.2mm, Width 600mm)
CategoriesNC Servo Feeder
AlbumView larger image
BrandHongEr
ModelRNC-600
NC servo feeder can be used in conjunctionPunching machine, shearing machine,hydraulic press
Feeding pitch0-10m adjustable
Multi segment feeding functionIn cooperation with multi station mold to complete diversified processing
Programmed induction feedingConnected to punch cam, adjustable feeding and relaxation time
Installaton of material end detection deviceAutomatically stop the press when there is no material
Operation interface7 inch touch screen
Feeding precision0.02mm( when the mold has a positioning pin)
Four models for different thickness0.1-1.6mm,0.2-3.2mm,0.5-4.5mm,1.0-6.0mm
Easy to operateParameters such as feeding length and speed can be set arbitrarily
Update Time2018-12-16
Detail Information
Product Description
RNC-600 High precision servo feeder for press feeding metal stamping

RNC-600 is HongEr press servo roll feeder machine with pneumatic release.

It can feeds sheet metal coil material thickness from 0.2mm to 3.2mm, with max. feeding speed 20m/min.

Thanks to Yaskawa servo system and Mitsubishi PLC, it can ensure +/-0.01mm feeding precision.

A mounting plate can help the servo feeder install to press machine easily.

Or you can choose a separate bracket for better stability.
Specification
Model
RNC-600
Coil Width to
500 mm
Strip Thickness
0.2-3.2 mm
Release
Pneumatic Type Releasing System
Feed Roll
Upper Roll Ø65mm, Bottom Roll Ø80mm
Feed Length
Max. 9999.99 mm
Speed
Max. 20m/min
Accuracy
± 0.1 mm
Servo Motor
Yaskawa, Japan
Servo Drive
Yaskawa, Japan
PLC
Mitsubishi, Japan
Touch Screen
Weinview, Taiwan
Power
2.9 Kw
Application
RNC-600 High precision servo feeder for press feeding metal stamping applications:

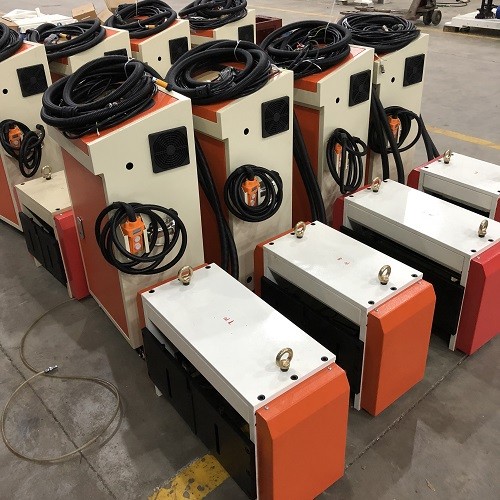

RNC High pricesion servo feeder for press feeding metal stamping to ready for delivery to Thailand


High precision servo feeder for press feeding metal stamping with KOMATSU press in our customer's new workshop
