GLK4-800H DECOILER STRAIGHTENER FEEDER FOR HIGH STRENGTH MATERIAL (0.6-6.0mm)

Capacities:
Coil width: 70mm-800mm

Material thickness: 0.6mm-6.0mm

Coil weight: 5T/7T

Line speed: 20m/min

Material: High strength material

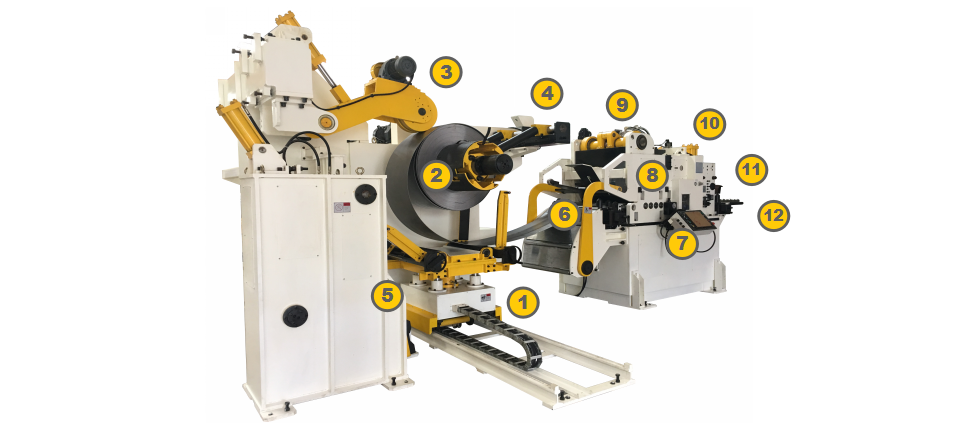

1. Coil Car
Hydraulic power, wear-resisting surface
2. Decoiler Mandrel
Hydraulic expansion, delta inverter
3. Pressing Arm
Coil well-knit, no disperse
4. Limiting Arm
Locating coil, avoid coil shuffing
5. Support Arm
Auxiliary support coil
6. Auxiliary Inlet Device
With swing arm to lead the material
7. Control Board
Mistubishi Touchscreen
8. Straightening Part
GCr15 steel straightener rolls
9. Electrical Circuitry Control
Electric straightening adjustment
10. Shearing Unit
Hydraulic shear
11. Lubrication Unit
Automatic lubrication control, 20L
12. Outlet Bracket
Adjustable length
Specification
Model
GLK4-800H
Material Yield Strength
≤613 N/mm2
Material Tensile Strength
≤882 N/mm2
Sheet Metal Coil Width Range
70-800 mm
Metal Strip Thickness
0.6-6.0 mm
Feeding Length
Max. 9999.99 mm
Coil I.D.
Φ508
Coil O.D.
Φ1500
Loading Capacity
7000 kgs
Feeding Speed
16-24 m/min
Feeding Precision
±0.15mm
Straightener Rolls
9pcs (Up5/Down4)
Pinch Rolls
2pcs
Auxiliary Rolls
2 groups
Pressing Arm
Pneumatic Type
Expansion
Hydraulic Expansion
Servo Motor
15 Kw
* Machine Spec can be customized according to your specific demands.
Application

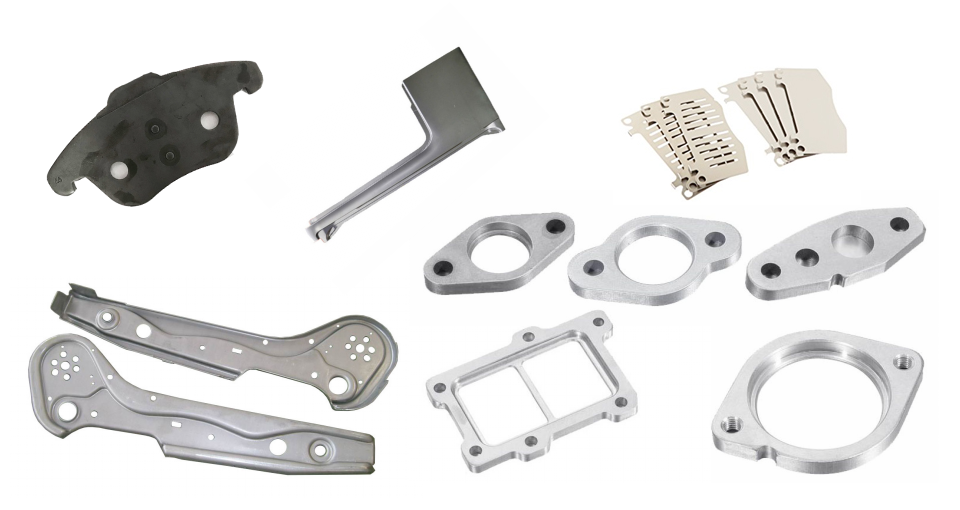

Automotive parts: Tie bar, Bracket, Damper, Brake pad
Electrical accessory: Shell parts of printers, computers etc.
Hardware parts

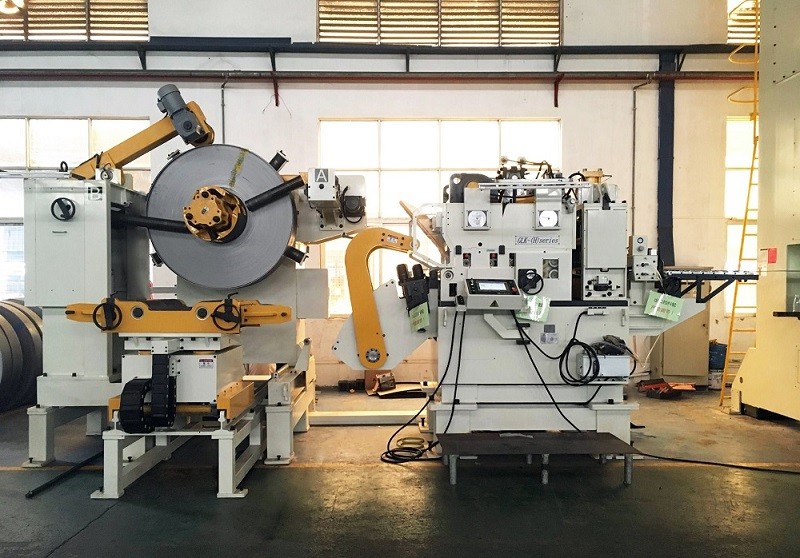

Coil feeding line for high strength steel, GLK4-1600H for Volkswagen's auto parts stamping

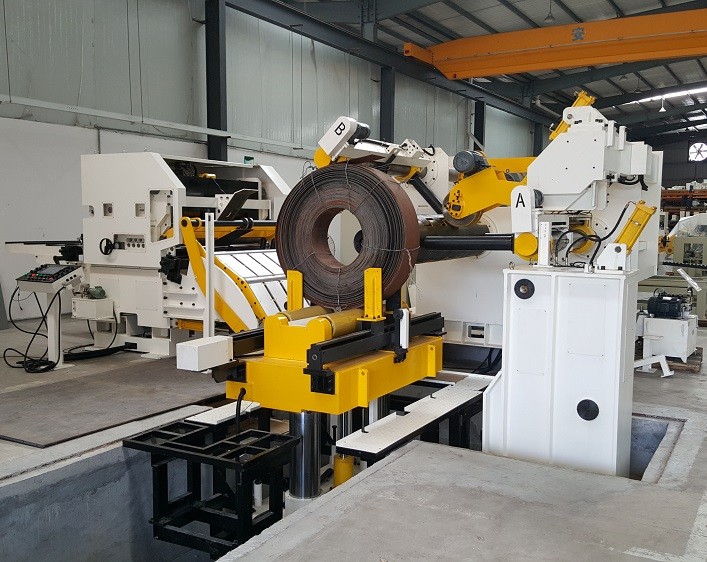

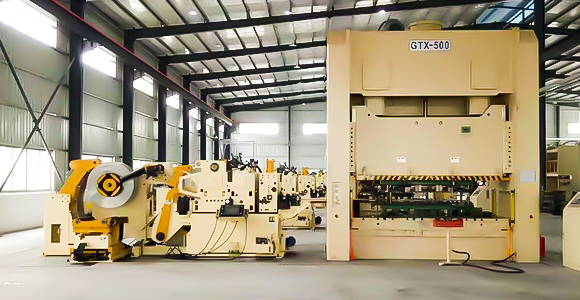

Combined decoiler straightener feeder GLK-H coil feeding line for auto parts stamping line
