RNC-300H (Thickness 0.5-6.0mm, Width 300mm)

RNC-300H (Thickness 0.5-6.0mm, Width 300mm)

RNC-300H (Thickness 0.5-6.0mm, Width 300mm)
RNC-300H (Thickness 0.5-6.0mm, Width 300mm)RNC-300H (Thickness 0.5-6.0mm, Width 300mm)RNC-300H (Thickness 0.5-6.0mm, Width 300mm)RNC-300H (Thickness 0.5-6.0mm, Width 300mm)RNC-300H (Thickness 0.5-6.0mm, Width 300mm)
CategoriesNC Servo Feeder
AlbumView larger image
BrandHongEr
ModelRNC-300H
NC servo feeder can be used in conjunctionPunching machine, shearing machine,hydraulic press
Feeding pitch0-10m adjustable
Multi segment feeding functionIn cooperation with multi station mold to complete diversified processing
Programmed induction feedingConnected to punch cam, adjustable feeding and relaxation time
Installaton of material end detection deviceAutomatically stop the press when there is no material
Operation interface7 inch touch screen
Feeding precision0.02mm( when the mold has a positioning pin)
Four models for different thickness0.1-1.6mm,0.2-3.2mm,0.5-4.5mm,1.0-6.0mm
Easy to operateParameters such as feeding length and speed can be set arbitrarily
Update Time2018-12-16
Detail Information
Product Description

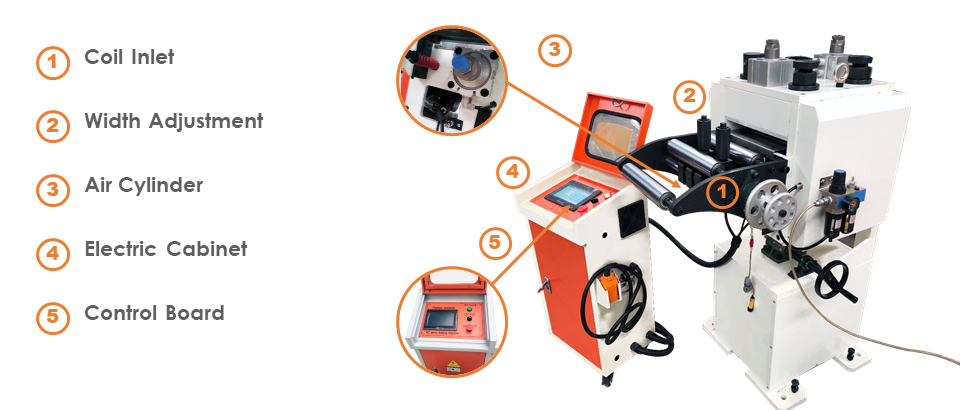

RNC-300H Pneumatic servo feeder for press machine sheet metal stamping process

RNC-300H is HongEr SERVO FEEDER with pneumatic release.

It can feeds sheet metal strip material thickness from 0.5mm to 6.0mm, and coil width up to 300mm.

With reliable Yaskawa servo system and Mitsubishi PLC, it can ensure +/-0.01mm feeding precision.

A mounting plate can help the servo feeder install to press machine easily.
Specification
Model
RNC-300H
Coil Width to
300 mm
Strip Thickness
0.5-6.0mm
Release
Pneumatic Type Releasing System
Feeder Rolls
Upper Roller Ø90mm, Bottom Roller Ø90mm
Feed Length
Max. 9999.99 mm
Speed
Max. 20m/min
Accuracy
± 0.1 mm
Servo Motor
Yaskawa, Japan
Servo Drive
Yaskawa, Japan
PLC
Mitsubishi, Japan
Touch Screen
Weinview, Taiwan
Power
1.8 Kw
Application

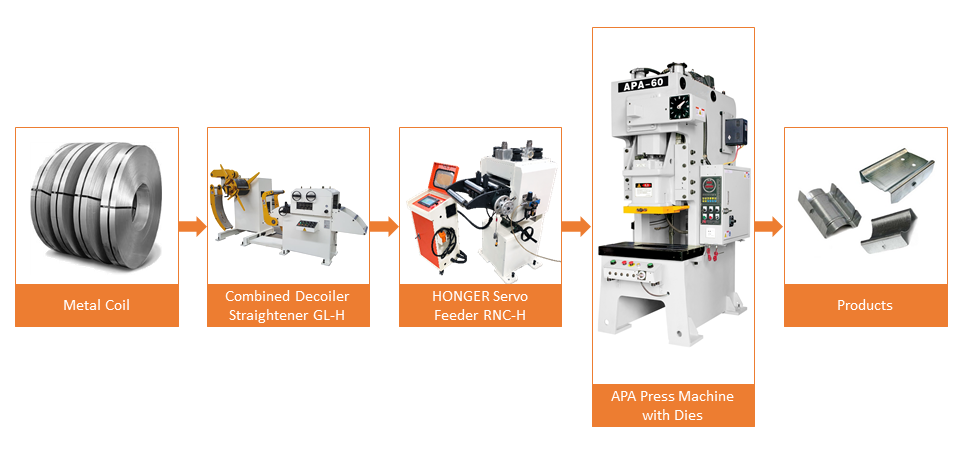

RNC servo feeder can be found in many different product line such as oil filter production, saw blade stamping line, knives pressing line, car plate stamping etc.

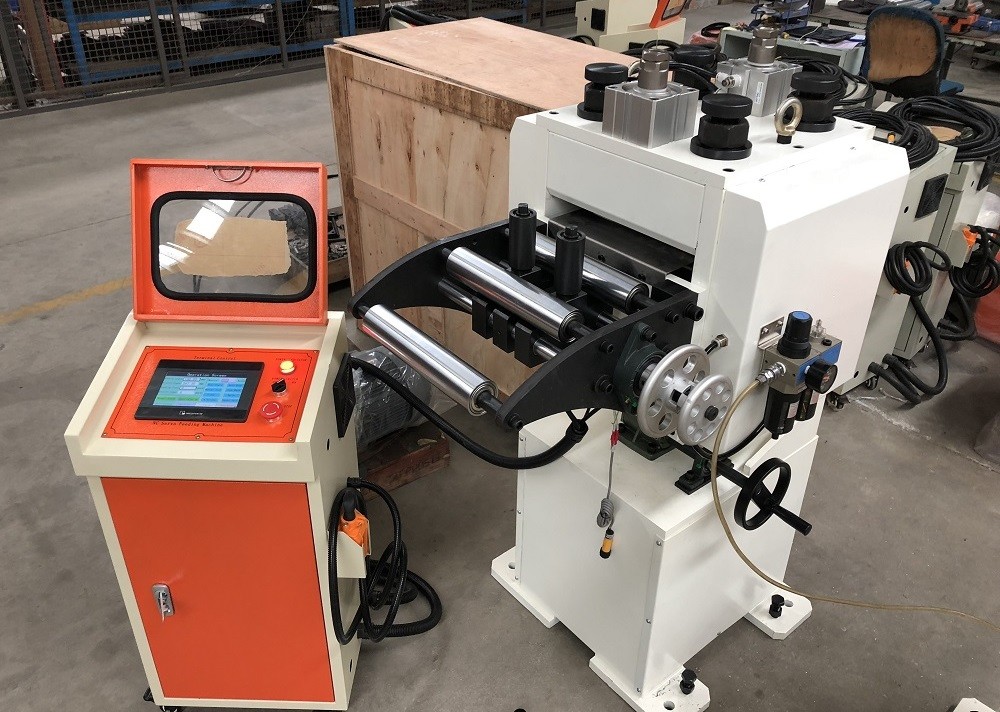

RNC-300H servo roll feeder ready for delivery to Indonesia
