Detail Information
Motorized Decoiler Machine Hydraulic Expansion Coil Cradle Steel Coil Decoiling


Production Description
1,specifications
Material width(mm): 1000
Material thickness(mm): 0.35-1.6
Material outer dia(mm): 1200
Material inner dia(mm): 450-530
Motor(HP): 2

2, features
1), Suitable for all kinds of coil material feeding.
2), It can work together with straightener, servo feeder, metal stamping machine.
3), Maximun load weight 5ton.

Special Equipment(selective)
1), Material pressing arm.
2), Hydraulic pressure expansion style.
3), Hydraulic pressure material loading device.
4), Frequency changer.
5), Coil keeper: fix the material.
6), Interaction: Mainly using photoelectric switch, proximity switch, micro switch to instead of standard induction pole, which are suited for the non-conducting materials and the surface highly required materials(avoiding scratching).
7), Quick change A type Iron equipement: using T type bolt, which can make coil keeper teared down easier.
8), Outside and inside diameter custom-made.

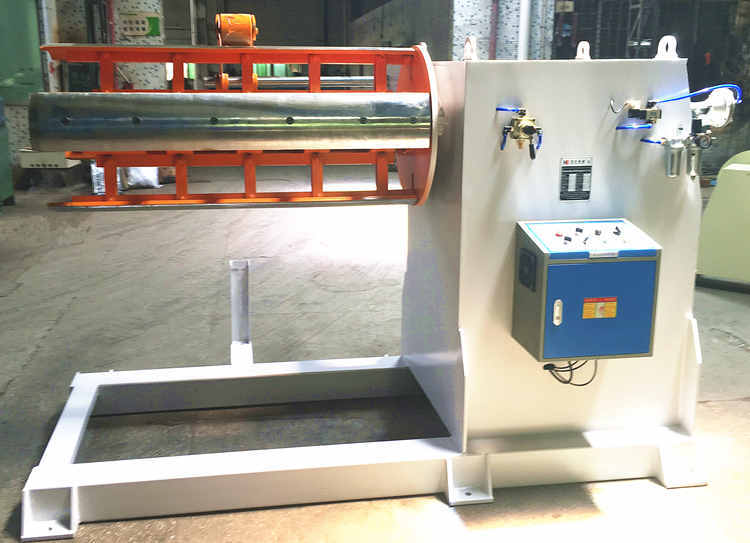

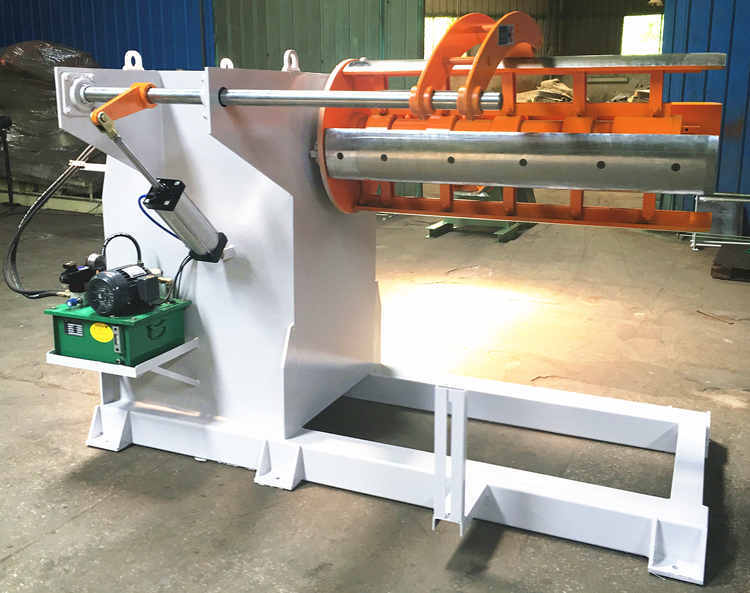

MT-1000F picture show




Customized MT-1000F Hydraulic Expansion Decoiler

Exported to Indonesia
Application

Most of our decoilers are used in press feed.
HongEr also provides customized decoilers for terminal production line, hing lineRoll forming line.
