[MT-400] Motorized Decoiler Machine Coil Cradle Steel Sheet Handling Equipment

[MT-400] Motorized Decoiler Machine Coil Cradle Steel Sheet Handling Equipment

[MT-400] Motorized Decoiler Machine Coil Cradle Steel Sheet Handling Equipment
[MT-400] Motorized Decoiler Machine Coil Cradle Steel Sheet Handling Equipment[MT-400] Motorized Decoiler Machine Coil Cradle Steel Sheet Handling Equipment[MT-400] Motorized Decoiler Machine Coil Cradle Steel Sheet Handling Equipment[MT-400] Motorized Decoiler Machine Coil Cradle Steel Sheet Handling Equipment[MT-400] Motorized Decoiler Machine Coil Cradle Steel Sheet Handling Equipment
CategoriesManual Decoiler
AlbumView larger image
BrandHongEr
ModelMT-400
Product nameMotorized Decoiler Machine Coil Cradle Steel Sheet
ApplicationSheet Metal Decoiling
MaterialCR Steel, HR Steel, Galvanized steel
Applicable Coil Width400mm
Applicable Coil Thickn0.1-1.6mm
Coil I.D.450-530mm
Coil O.D.1200mm
Power1Kw
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, T/T
Update Time2018-12-15
Detail Information
Motorized Decoiler Machine Coil Cradle Steel Sheet Handling Equipment
MT-400 Motorized Decoiler Machine Coil Cradle Steel Sheet Handling Equipment

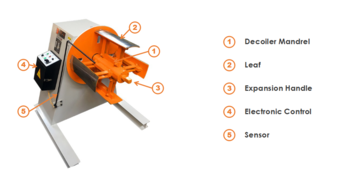

1. Electric control box is installed on the side of the body, and motor is installed inside. Electric control box is convenient for the contorl of equipment.

2. The outer surface of the heavy material bearing tile plate is covered with a wear-resistant shaft.

3. The outer side wall of the bottom of the fuselage is mounted with an induction lever through an insulating plate.

4. With wide application for producing car parts, electronics, motors, home appliance, toy and auto components, varying kinds of metal plates, kitchenware, furniture hardware parts, etc.

5. Suitable for most kind of coil material, such as CR Steel, HR steel, galvanized steel, stainless steel, pre-painted, aluminum, cooper etc.

6. Honger high quality decoiling equipment is better choice for coil handling and press feeding line with customized options.

Model
MT-400
Coil Width
400mm
Coil Thickness
0.1 mm-1.6mm
Coil I.D.
450-530 mm
Coil O.D.
1200 mm
Coil Weight
1000 kg
Expansion
Manual expansion
Pressing Arm
Optional
Power
1HP
Inverter
Without
Speed
16m/min

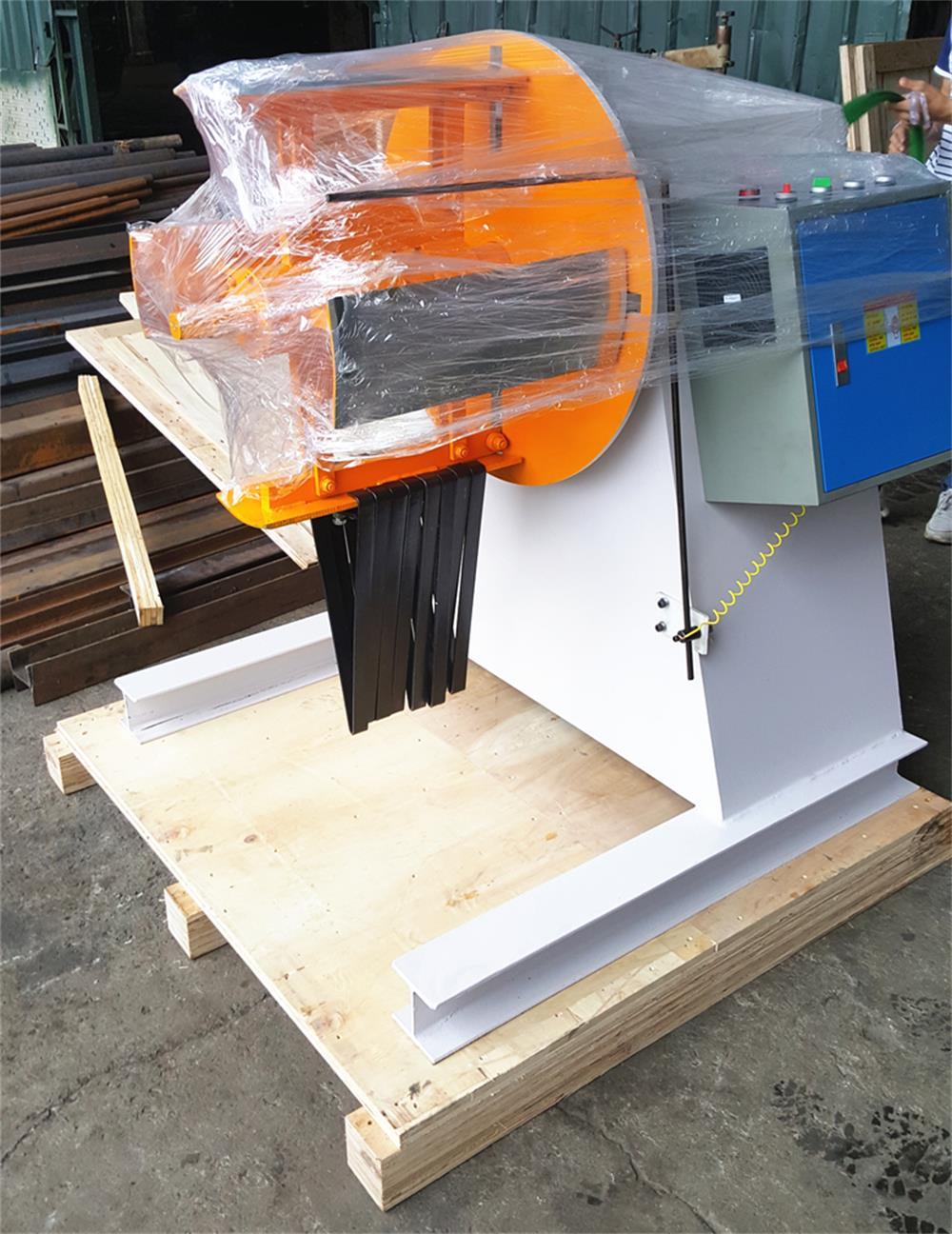

Machine wrapped up with plastic film
Fix decoiler machine into wooden case
Delivery packages to port

It is suitable for general metal stamping line.

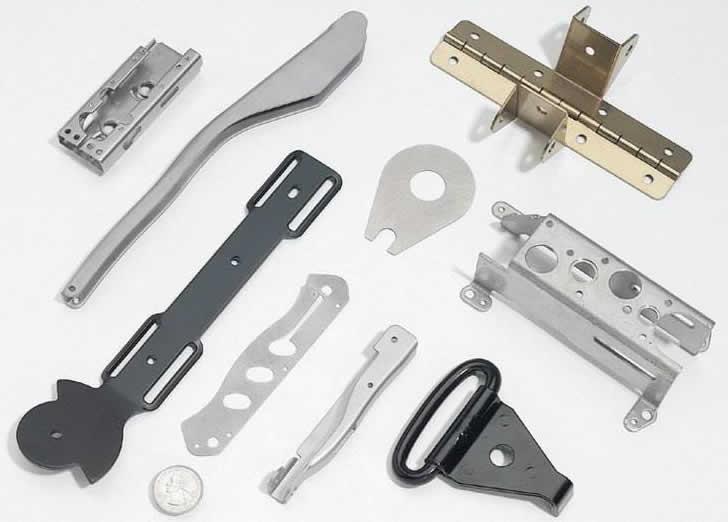

The main product including many kinds of metal sheet products such as door keeps, knives, purline, hinges and so on.
