[MT-600] Decoiler Coil Handling Systems For Press Room Automation

[MT-600] Decoiler Coil Handling Systems For Press Room Automation

[MT-600] Decoiler Coil Handling Systems For Press Room Automation
[MT-600] Decoiler Coil Handling Systems For Press Room Automation[MT-600] Decoiler Coil Handling Systems For Press Room Automation[MT-600] Decoiler Coil Handling Systems For Press Room Automation[MT-600] Decoiler Coil Handling Systems For Press Room Automation[MT-600] Decoiler Coil Handling Systems For Press Room Automation
CategoriesManual Decoiler
AlbumView larger image
BrandHongEr
ModelMT-600
Product nameDecoiler Coil Handling Systems For Press Room Auto
MaterialSteel Material
Applicable Coil Width600mm
Applicable Coil Thickness0.1-1.6mm
Coil I.D.450-530mm
Coil O.D.1200mm
Loading Weight2000kgs
Decoiler ExpansionManual
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, T/T
Update Time2018-12-15
Detail Information
Decoiler Coil Handling Systems For Press Room Automation

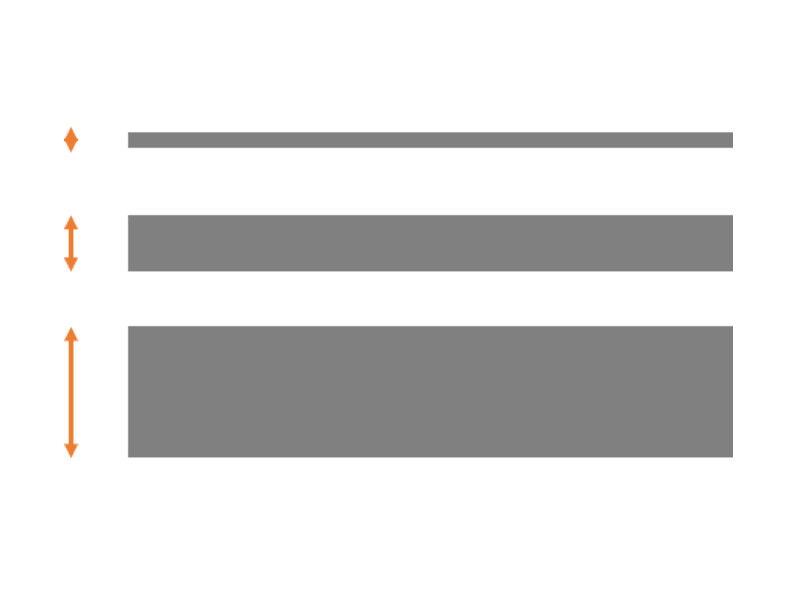

Material thickness
0.1mm to 2.0mm

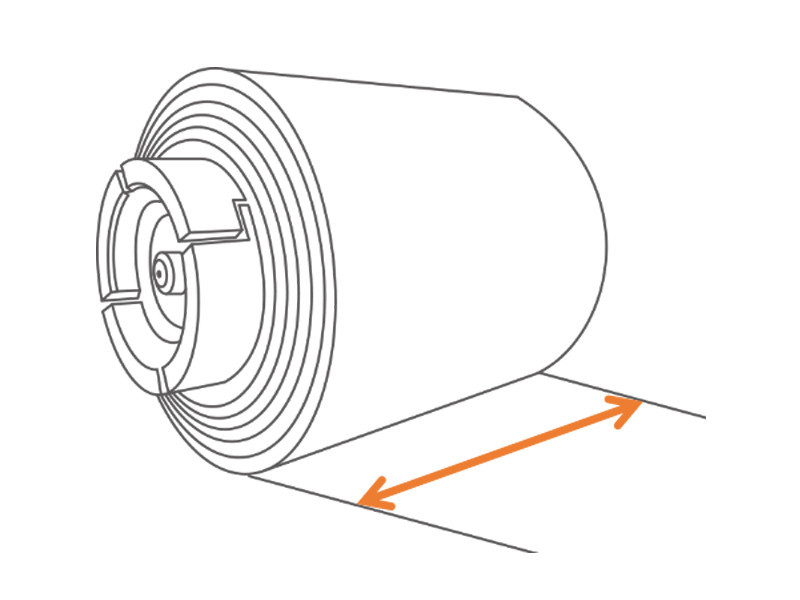

Strip Width
20mm to 600mm
Coil Weight
                              up to 2000kg

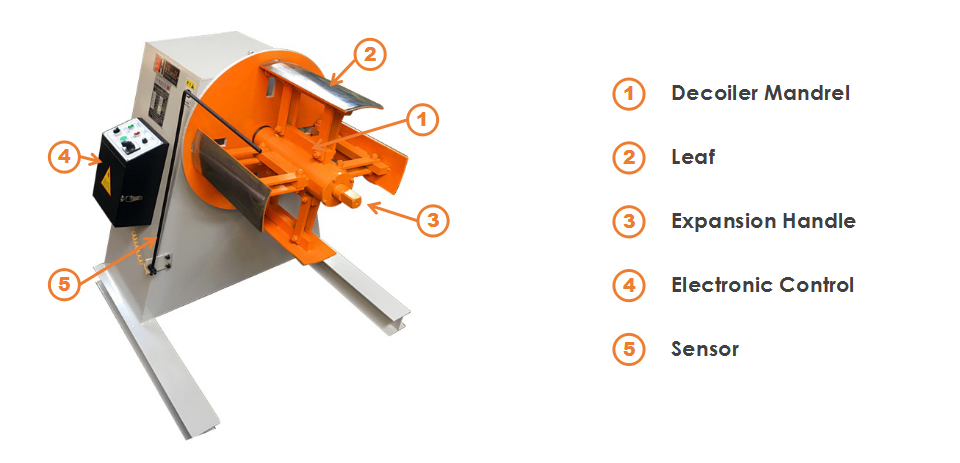

MT-600 Motorized decoiler with
manual expansion
Operation: Motorized

Mandrel Expansion: Manually

Application: Press Feed

Uncoiling speed:16 m/min

Pressing arm and coil car for optional

MT-600 is very suitable for mechanical、automotive、construction & buiding decoration.
Model
Coil width
Coil Thickness
Coil I.D.
Coil O.D.
Coil Weight
Expansion
Pressing Arm
Power
Inverter
Speed
MT-600
600
0.1 mm-2.0 mm
450-530 mm
1200 mm
2000 kgs
Manual expansion
Optional
2 HP
Without
16m/min
Application

Our MT-600 decoiler can be used for
press feeding;
cut to length line;
coil slitting line;
forming line.

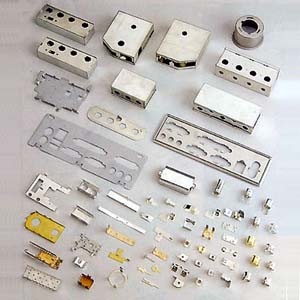

The main product including many kinds of metal sheet products such as terminals, knives, hinges and so on.

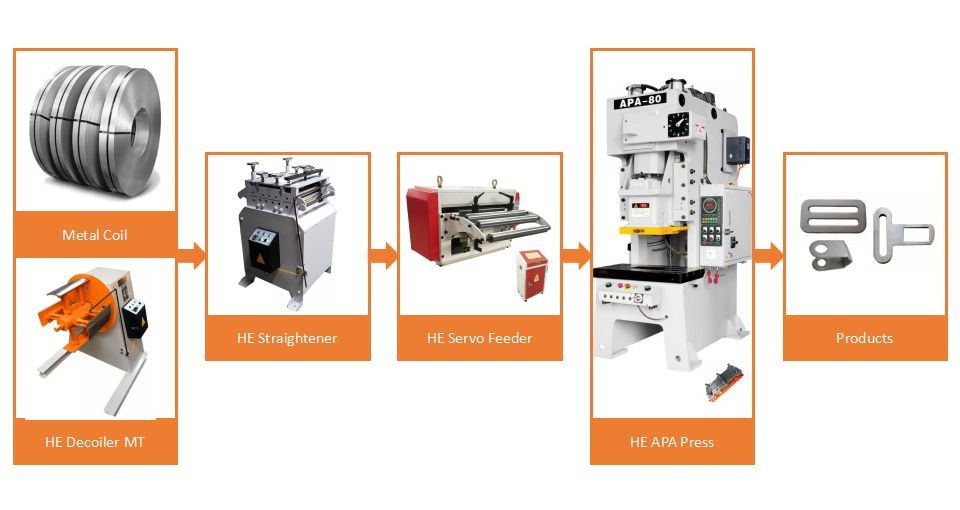

General configruation for press feeding line
Optional parts

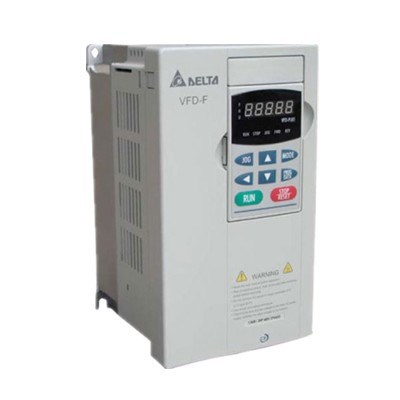

Frequency converter
For better control of the speed of decoiling. and more compatible for the straightener and feeder machine, It will decrease the vibration of the material and make the decoiling more stable.
OEM for ID and OD of coil
We can design the ID and OD of coil material according to customer's special requirements.

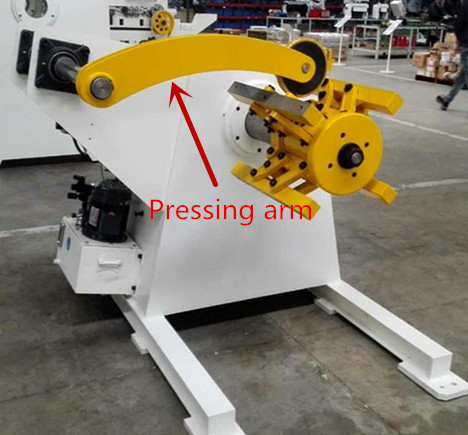

Pneumatic pressing arm
The main function of the pneumatic pressing arm is to press the coil material avoiding dispersing. Normally adopted when coil material thickness exceed 2.0 mm or high tension strength material.

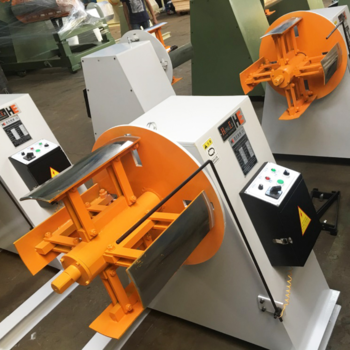

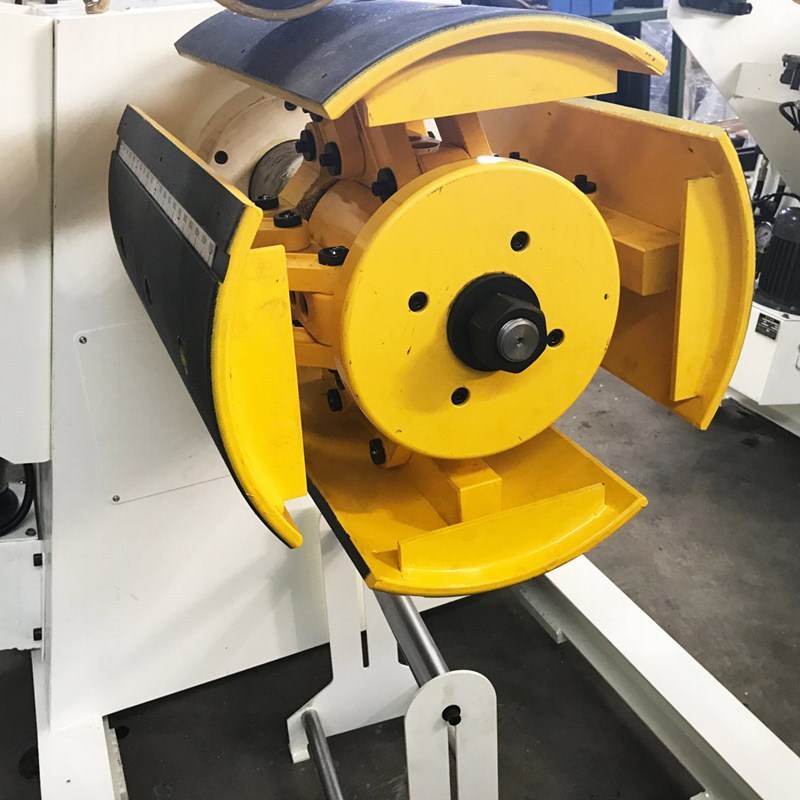

MT decoiler image


Standard MT-600

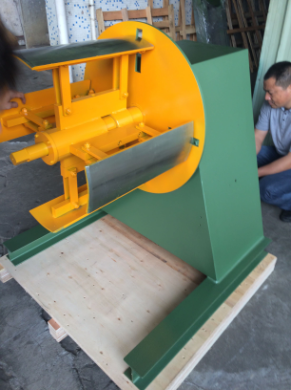

for Malaysia customer
