[MT-800] Heavy duty uncoiler machine steel coil reel with optional coil lifter

[MT-800] Heavy duty uncoiler machine steel coil reel with optional coil lifter

[MT-800] Heavy duty uncoiler machine steel coil reel with optional coil lifter
[MT-800] Heavy duty uncoiler machine steel coil reel with optional coil lifter[MT-800] Heavy duty uncoiler machine steel coil reel with optional coil lifter[MT-800] Heavy duty uncoiler machine steel coil reel with optional coil lifter[MT-800] Heavy duty uncoiler machine steel coil reel with optional coil lifter[MT-800] Heavy duty uncoiler machine steel coil reel with optional coil lifter
CategoriesManual Decoiler
AlbumView larger image
BrandHongEr
ModelMT-800
expansionmanual or hydrolic
featuredecoiler for motor stator
functionunwinder for metal pressing
usageuncoiler for roll forming machine
compactingdecoiler with servo feeder straightener
materialdecoiling for metal coil sheet
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, T/T
Update Time2018-12-16
Detail Information
MT Heavy duty uncoiler machine steel coil reel with optional coil lifter


Production Description
1,specifications
Material width(mm): 800
Material thickness(mm): 0.35-1.6
Material outer dia(mm): 1200
Material inner dia(mm): 450-530
Motor(HP): 2

2, features
1), Suitable for all kinds of coil material feeding.
2), It can work together with straightener.
3), Maximun load weight 3ton.

Special Equipment(selective)
1), Material pressing arm.
2), Hydraulic pressure expansion style.
3), Hydraulic pressure material loading device.
4), Frequency changer.
5), Coil keeper: fix the material.
6), Interaction: Mainly using photoelectric switch, proximity switch, micro switch to instead of standard induction pole, which are suited for the non-conducting materials and the surface highly required materials(avoiding scratching).
7), Quick change A type Iron equipement: using T type bolt, which can make coil keeper teared down easier.
8), Outside and inside diameter custom-made.

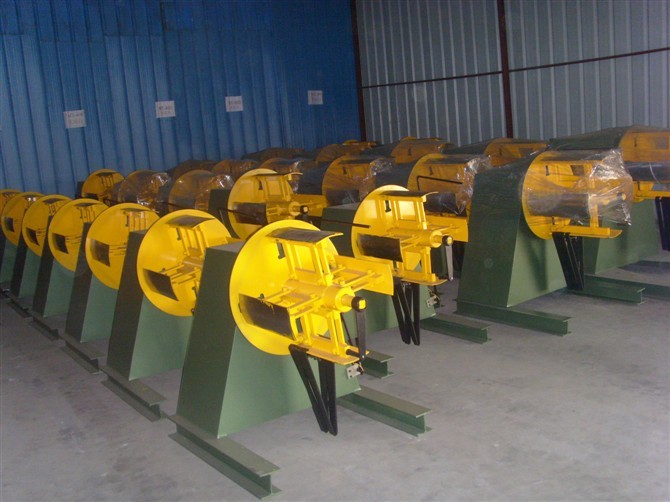

MT picture show

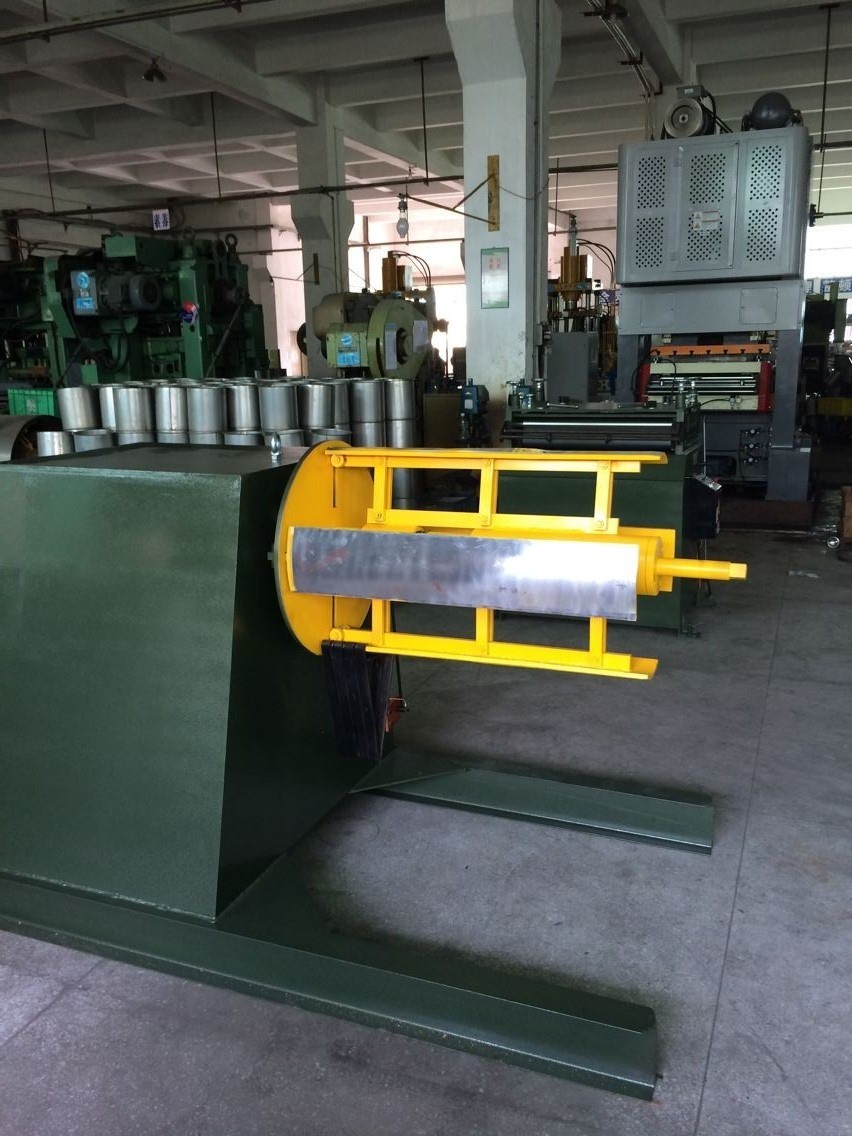

Customized MT-800  Manual Expansion Decoiler

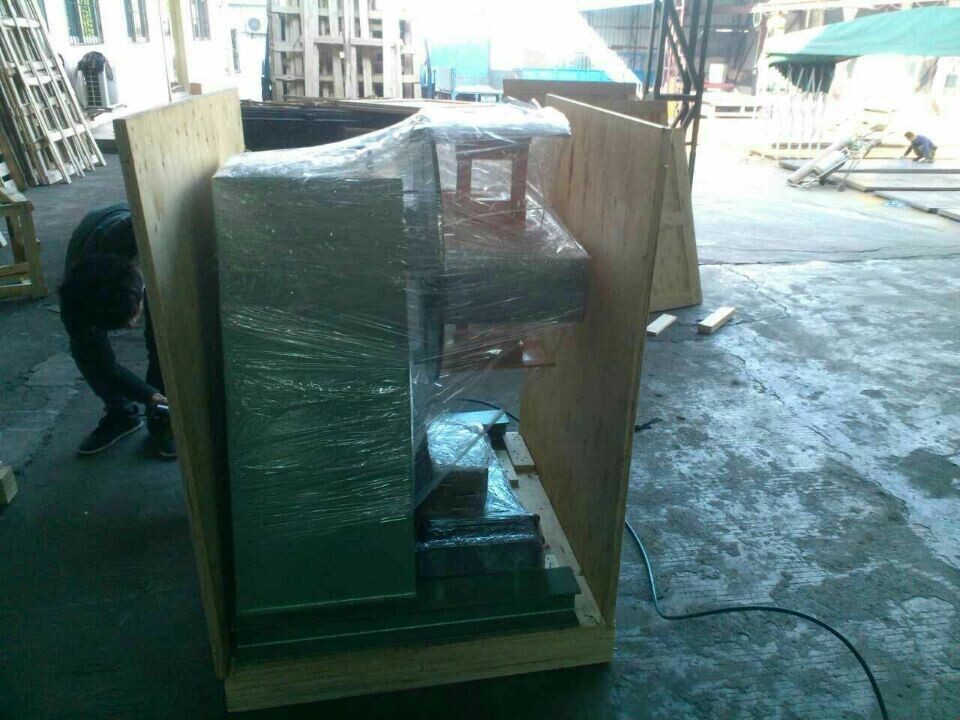

Exported to Mexico

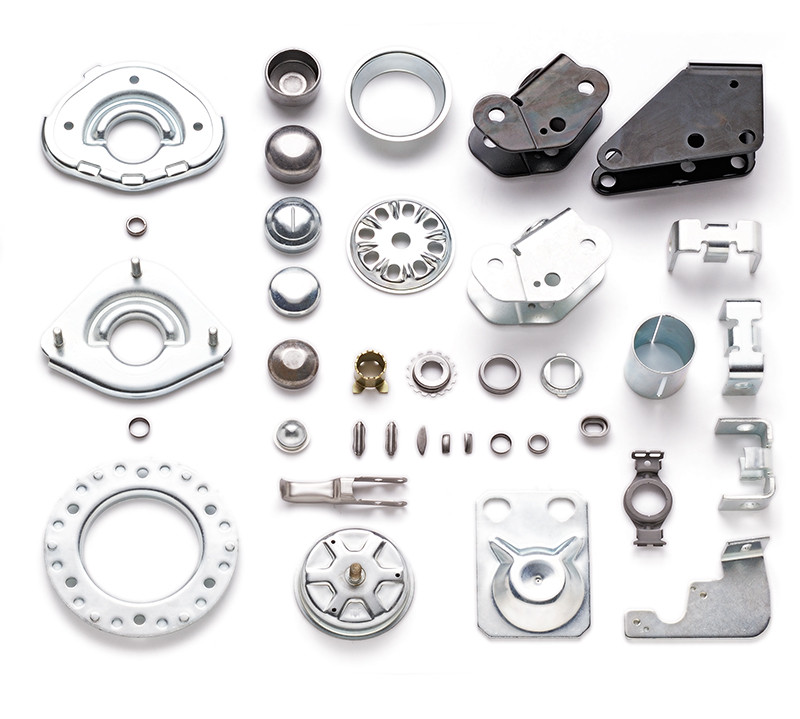

Application

Most of our decoilers are used in press feed.
HongEr also provides customized decoilers for terminal production line, hing lineRoll forming line.
