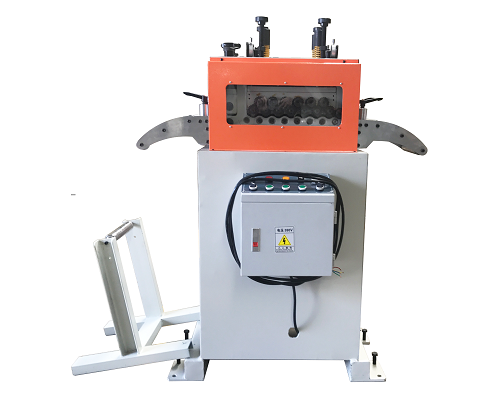

JM3 HIGH PRECISION SHEET METAL STRAIGHTENER

JM3 is HongEr high precision sheet metal straightener,
suitable for stainless steel, copper sheet, iron sheet, aluminum sheet from thickness 0.2 mm to 1.2 mm.

The leveling rollers adopt independent transmission, with an auxiliary roller to adjust the bending direction of the material according to requirements.

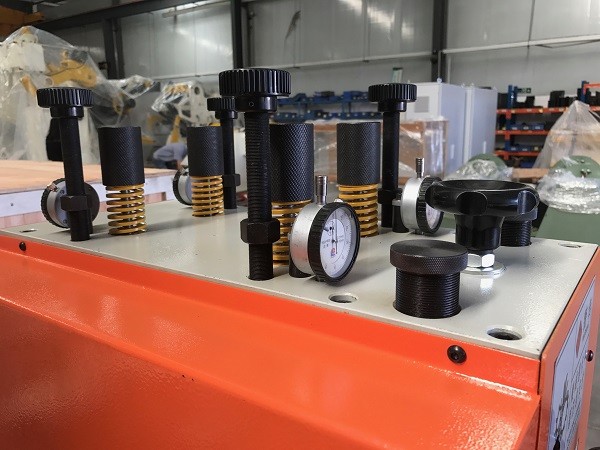

Scratch-type rolls adjustment method is used instead of traditional dial indicator adjustment method, no additional correction is required

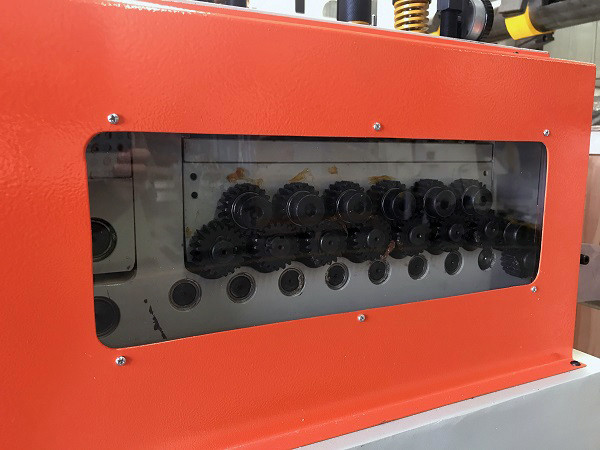

High quality GCr15 straightener rolls, 15pcs, hardness reach HRC60±2, wear resistance.

With Delta inverter for speed control
Specification
Model
JM3-200
JM3-300
JM3-400
JM3-500
JM3-600
Coil Width
200mm
300mm
400mm
500mm
600mm
Coil Thickness
0.2-1.2mm
Straightening
Rolls
Ø30mm * 15pcs
Speed
20 m/min
Motor
1 HP
1 HP
2 HP
2 HP
3 HP
Application

JM3 straightener can be found in many different sheet metal stamping line, especially the sheet metal shields which needs high precision leveling.
