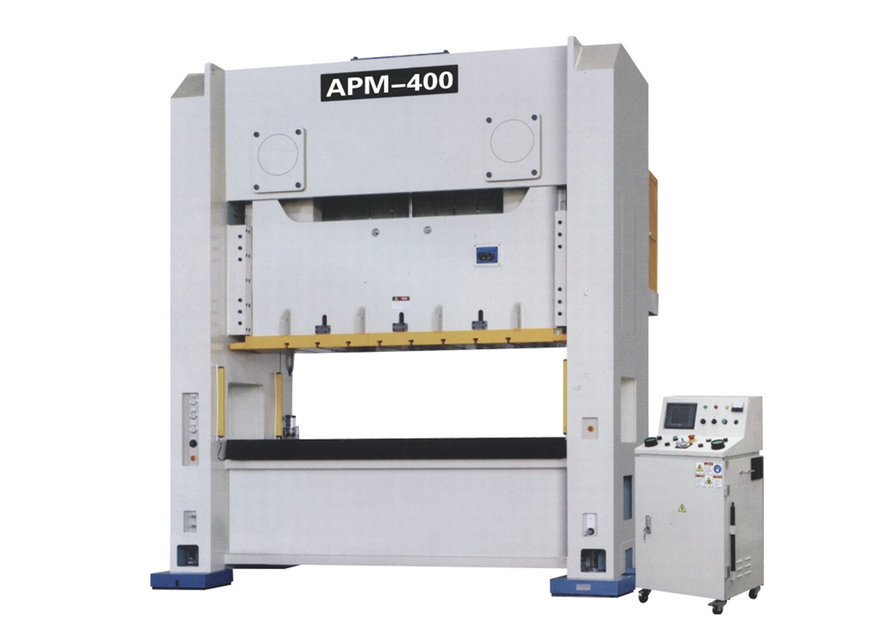

APM CLOSED TYOE DOUBLE CRANK PRESS

1. The machine body was welded of quality steel sheet and treated by tension elimination. Improve stability and reliability of precision of the machine.

2. In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two slid boards with balancer.

3. The precision of mold adjusting up to 0.1mm, safety, reliable and convenient.

4. Crank, Gear, Connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.

5. Reasonable structural design, is convenient for automatic production and line production.

6. Used reliable high intensity clutch / brake and twin electromagnetic valve, overloading protector an guarantee safe production all-around.

7. Used high-grade alloy steel ,double crank, wide work center with connection bar structure, the optimized design is suitable for large sizes and the mold. bearing large impact loading as well as pressing of eccentric mold.

8. Adopted closed electric, have compatible with any automatic equipments.

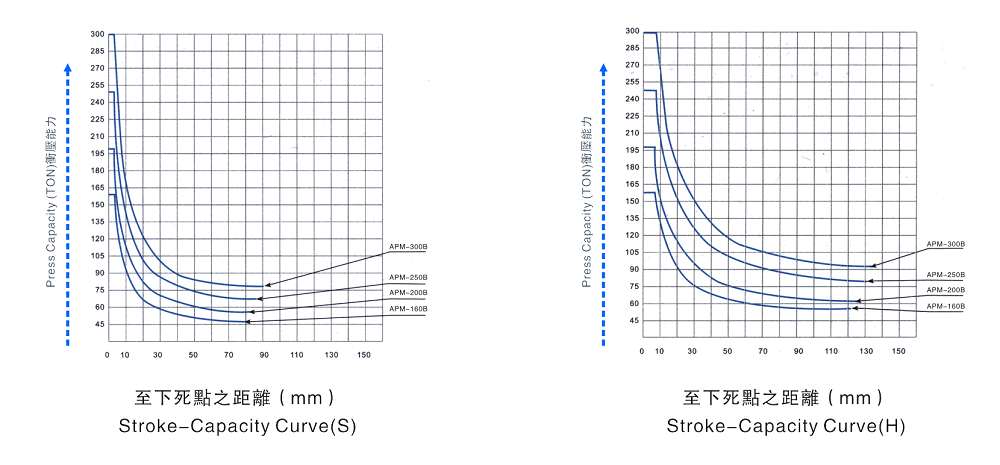

Specification

Model	APM-160T		APM-200T		APM-250T
Type	S	H	S	H	S	H
Capacity	160 tons		200 tons		250 tons
Stroke	180 mm	130 mm	250 mm	150 mm	280 mm	170 mm
S.P.M.	30-55	40-85	20-50	35-70	20-40	30-60
Tonnage Rating Point	6 mm	3 mm	6 mm	3 mm	7 mm	3 mm
Die Height	450 mm	400 mm	500 mm	450 mm	550 mm	450 mm
Slide Adjust	100 mm		120 mm		120 mm
Slide Area	1600 * 650 mm		1850 * 750 mm		2400 * 900 mm
Bolster Area	1800 * 760 mm		2200 * 940 mm		2500 * 1000 mm
Slide Opening	700 * 450 mm		900 * 600 mm		900 * 600 mm
Main Motor	VS15 * 4 (Kw*P)		VS18.5 * 4 (Kw*P)		VS22 * 4 (Kw*P)
Slide Adjustment Device	1 * 4 (Kw*P)		2 * 4 (Kw*P)		2 * 4 (Kw*P)
Air Presure	6 kg/cm³
Press Dimension	2309 * 2590 * 3682 mm		2523 * 3000 * 3915 mm		2799 * 3600 * 4593 mm

Model	APM-300T		APM-400T		APM-500T
Type	S	H	Big tabletop S	Small tabletop S	S	H
Capacity	300 tons		400 tons		500 tons
Stroke	300 mm	170 mm	300 mm	300 mm	350 mm	250 mm
S.P.M.	20-35	30-50	20-30	20-40	15-25	15-35
Tonnage Rating Point	7 mm	3 mm	7 mm	7 mm	12 mm	8 mm
Die Height	550 mm	450 mm	550 mm	550 mm	700 mm	600 mm
Slide Adjust	120 mm		120 mm		150 mm
Slide Area	2400*900 mm		3100*1000 mm	2700*1000 mm	3400*1200 mm	2700*1200 mm
Bolster Area	2500*1000 mm		3200*1000 mm	2700*1100 mm	3400*1200 mm	2700*1200 mm
Slide Opening	900*600 mm				1000*800 mm
Main Motor	VS30 * 4 (Kw*P)				VS55 * 4 (Kw*P)
Slide Adjustment Device	2 * 4 (Kw*P)				5 * 4 (Kw*P)
Air Presure	6 kg/cm³
Press Dimension	289936004729 mm		312938005257 mm

Standard Accessories:

High performance wet clutch & brake

Electronic crank angle led display

Electronic speed led display

Off/inching/safety/one stroke/continuous

Hydraulic overload protector

Main motor (adjustable)

Overrun detector

Portable2-hand push

Dual solenoid valve

Automatic slide adjust

Digital die height indication (unit0.1mm)

Automatic lubrication system

Total counter ,6 digits

Preset counter , 6 digits

Maintenance counter , 6 digits

Life counter, 6 digits

Electronic rotary cam switch (6 spare channel)

Air ejector 1/2”one channel

Air source receptacle 1/2”two channel

Missfeed detection circuit

Power receptacle (available only for single phase 110V power source siring by used)

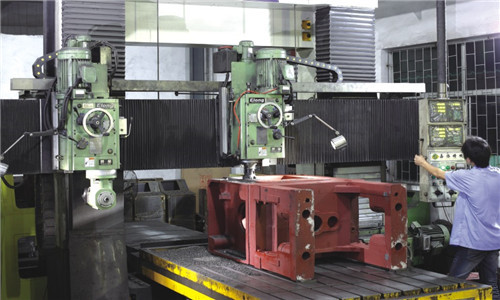

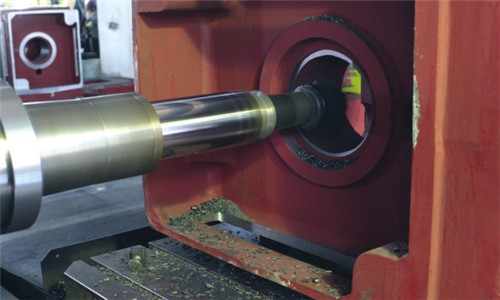

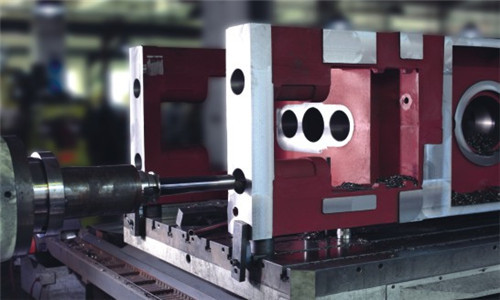

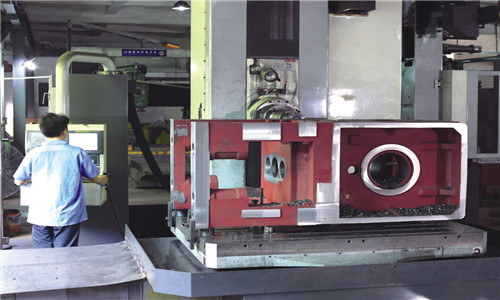

Press Manufacturing Workshop
