RH (High Speed H Frame Press)

RH (High Speed H Frame Press)

RH (High Speed H Frame Press)
RH (High Speed H Frame Press)RH (High Speed H Frame Press)RH (High Speed H Frame Press)RH (High Speed H Frame Press)RH (High Speed H Frame Press)
CategoriesHigh Speed Press H Frame
AlbumView larger image
BrandHongEr
ModelRH
Terms of PaymentL/C, Western Union, T/T
Update Time2018-12-16
Detail Information
Product Description

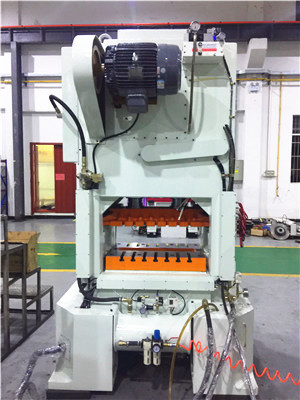

RH H FRAME STRAIGHT SIDE HIGH SPEED PRESS

Machine body made by high intensive cast iron, through natural environment eliminates stress, echance machine durability.

High accuracy performace in automatic feed, single stroke or progressive die applications.

Forced lubrication system ensures the operation reliabilty.

Electric control system achieve a high automation operation.
Specification
Model
RH-30T
RH-45T
Capacity
30 tons
45 tons
Stroke
20 mm
25 mm
30 mm
40 mm
20 mm
25 mm
30 mm
40 mm
S.P.M.
200-1000
200-900
200-800
200-600
200-1000
200-900
200-800
200-600
Die Height
195-235
192-232
190-230
185-225
210-250
208-248
205-245
200-240
Bolster Area
650 * 470 * 110 mm
800 * 550 * 110 mm
Slide Area
620 * 345 mm
750 * 380 mm
Blanking Hole
120 * 450 mm
120 * 550 mm
Motor
10 HP
15 HP
Weight
5200 kgs
8516 kgs
Loop System
Forceful Automation + Oil Cooler
Speed Control
Inverter
Clutch & Brake
Air & Friction
Vibration System
Mounting or pneumatic mounting for optional
Model
RH-65T
RH-85T
Capacity
65 tons
85 tons
Stroke
20 mm
30 mm
40 mm
50 mm
20 mm
30 mm
40 mm
50 mm
S.P.M.
200-800
200-600
200-500
200-400
200-800
200-700
200-600
200-500
Die Height
275-325
270-320
265-315
260-310
325-375
320-370
315-365
310-360
Bolster Area
950 * 700 * 195 mm
1200 * 900 * 145 mm
Slide Area
900 * 450 mm
1100 * 650 mm
Blanking Hole
125 * 600 mm
200 * 850 mm
Motor
25 HP
30 HP
Weight
16080 kgs
19000 kgs
Loop System
Forceful Automation + Oil Cooler
Speed Control
Inverter
Clutch & Brake
Air & Friction
Vibration System
Mounting or pneumatic mounting for optional
Dimensions

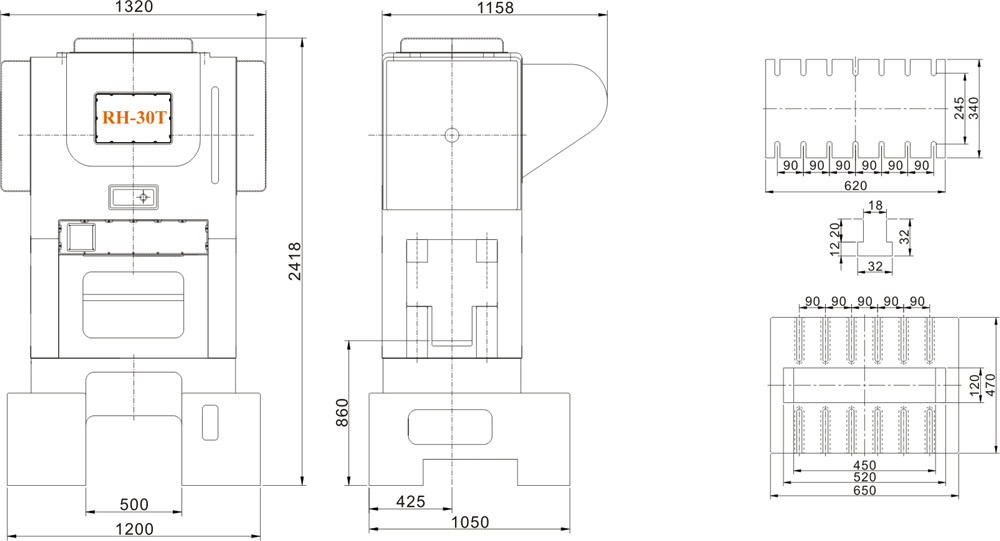

RH-30T

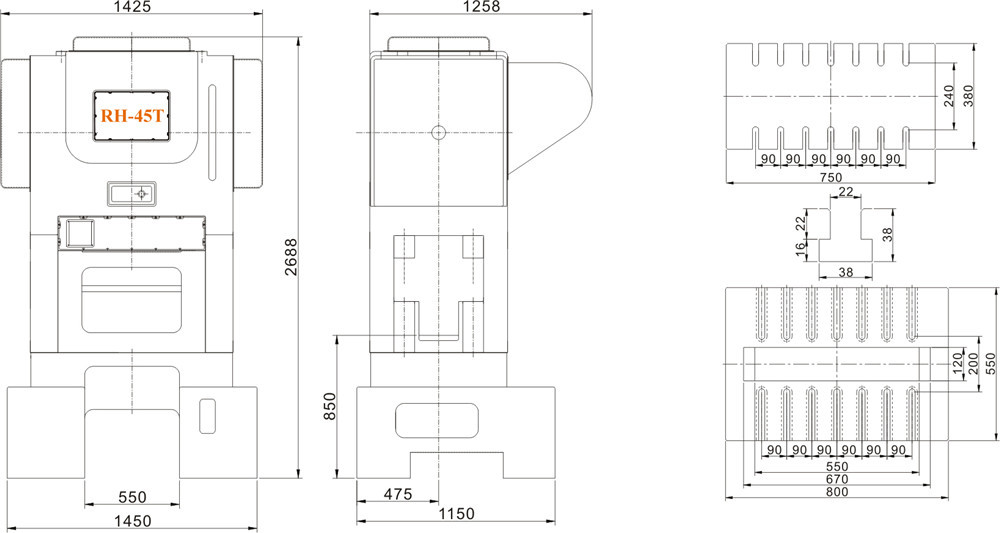

RH-45T

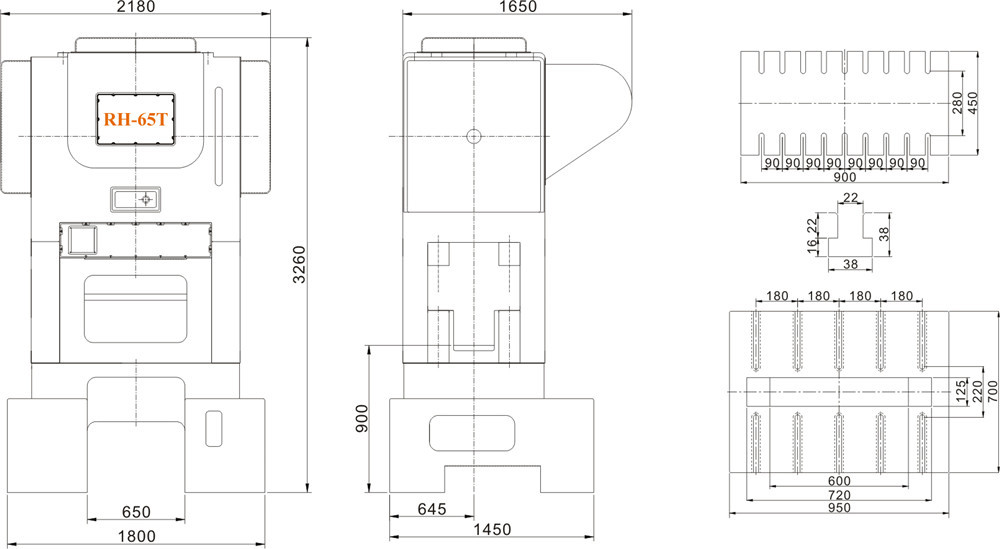

RH-65T

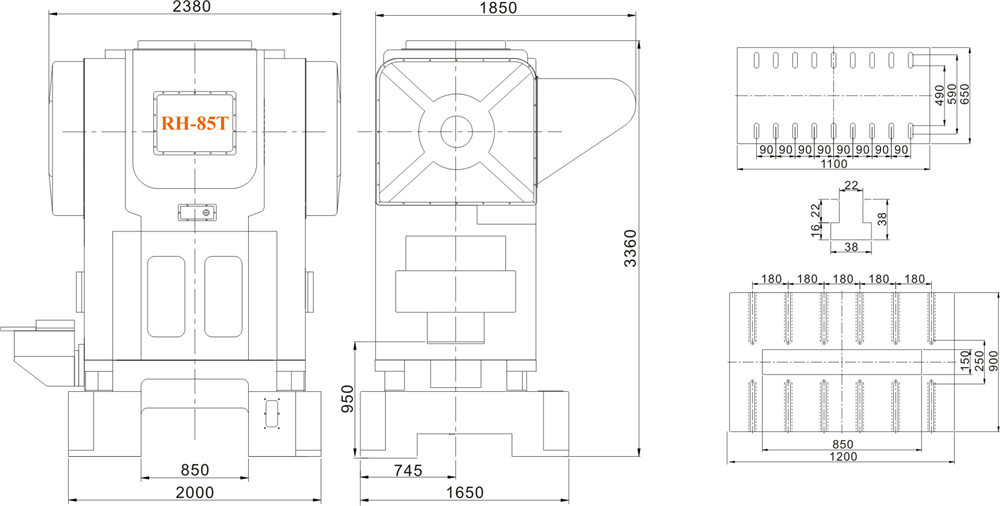

RH-85T

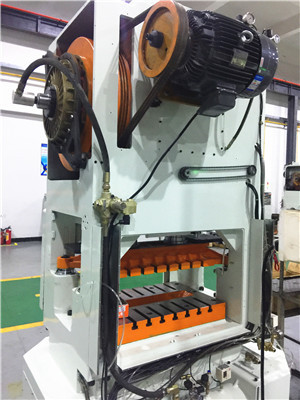

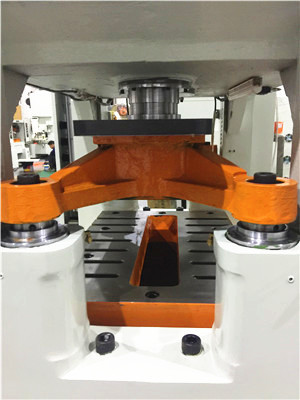

Detail Images
Application

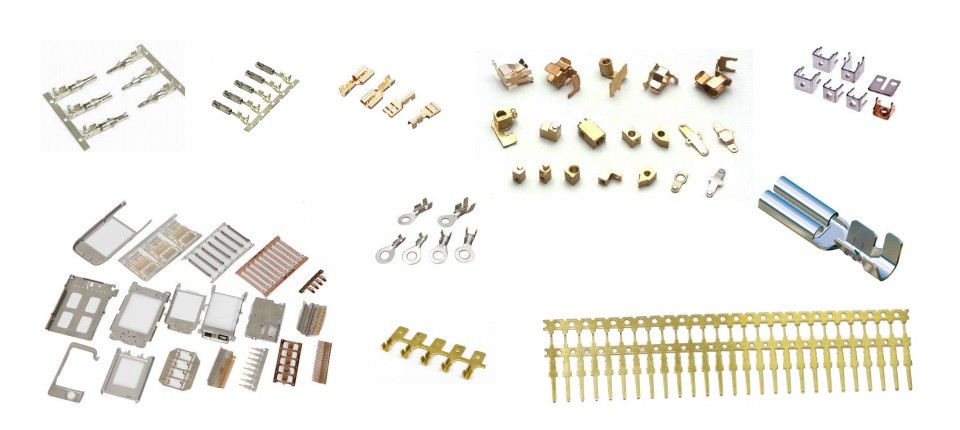

High speed terminal stamping, small sheet metal parts stamping, clip snap stamping etc.

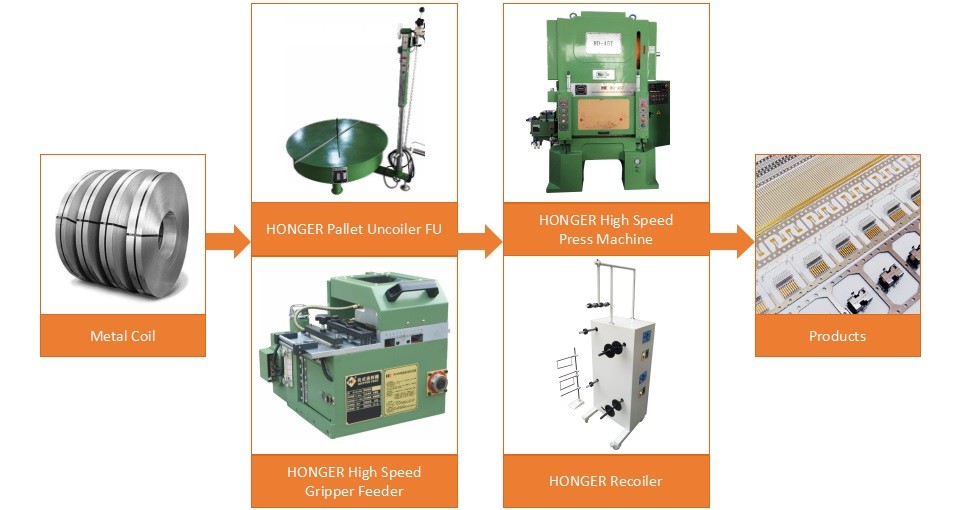

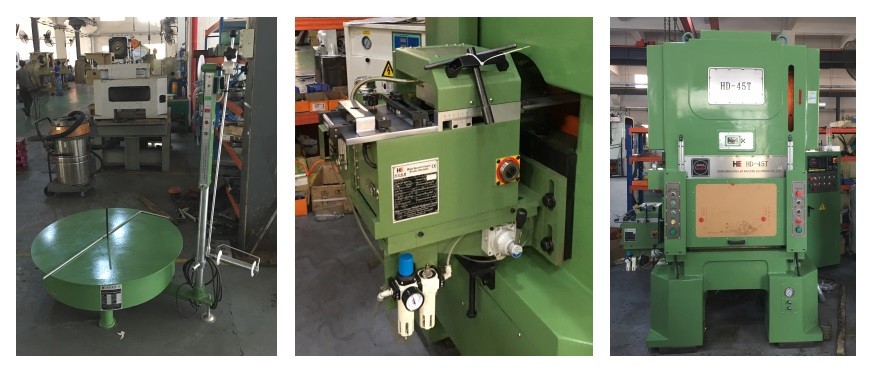

A general configuration of terminal stamping line:

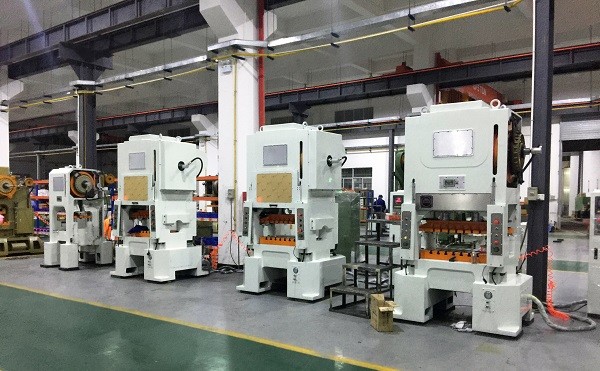

Our clip stamping line delivery to Brazil:

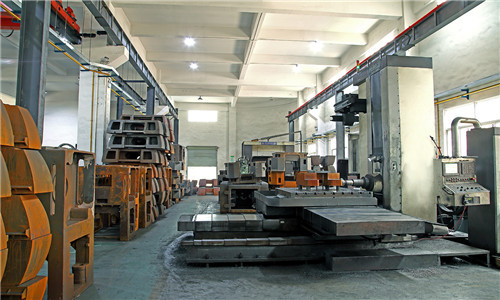

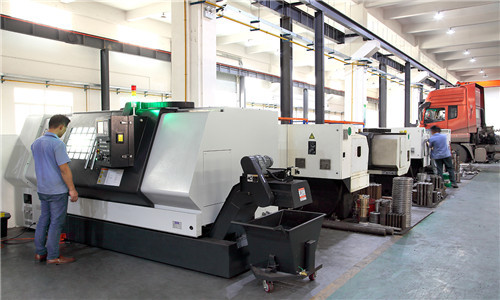

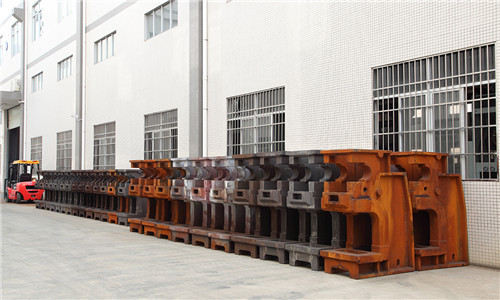

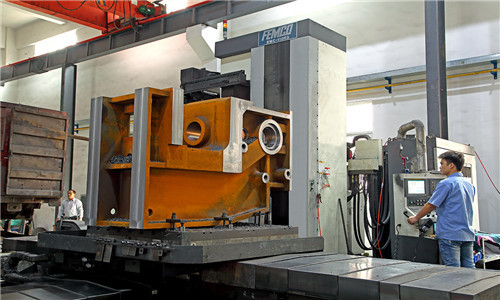

Press Manufacturing Workshop
