RC (High Speed C Frame Press)

Detail Information

Product Description

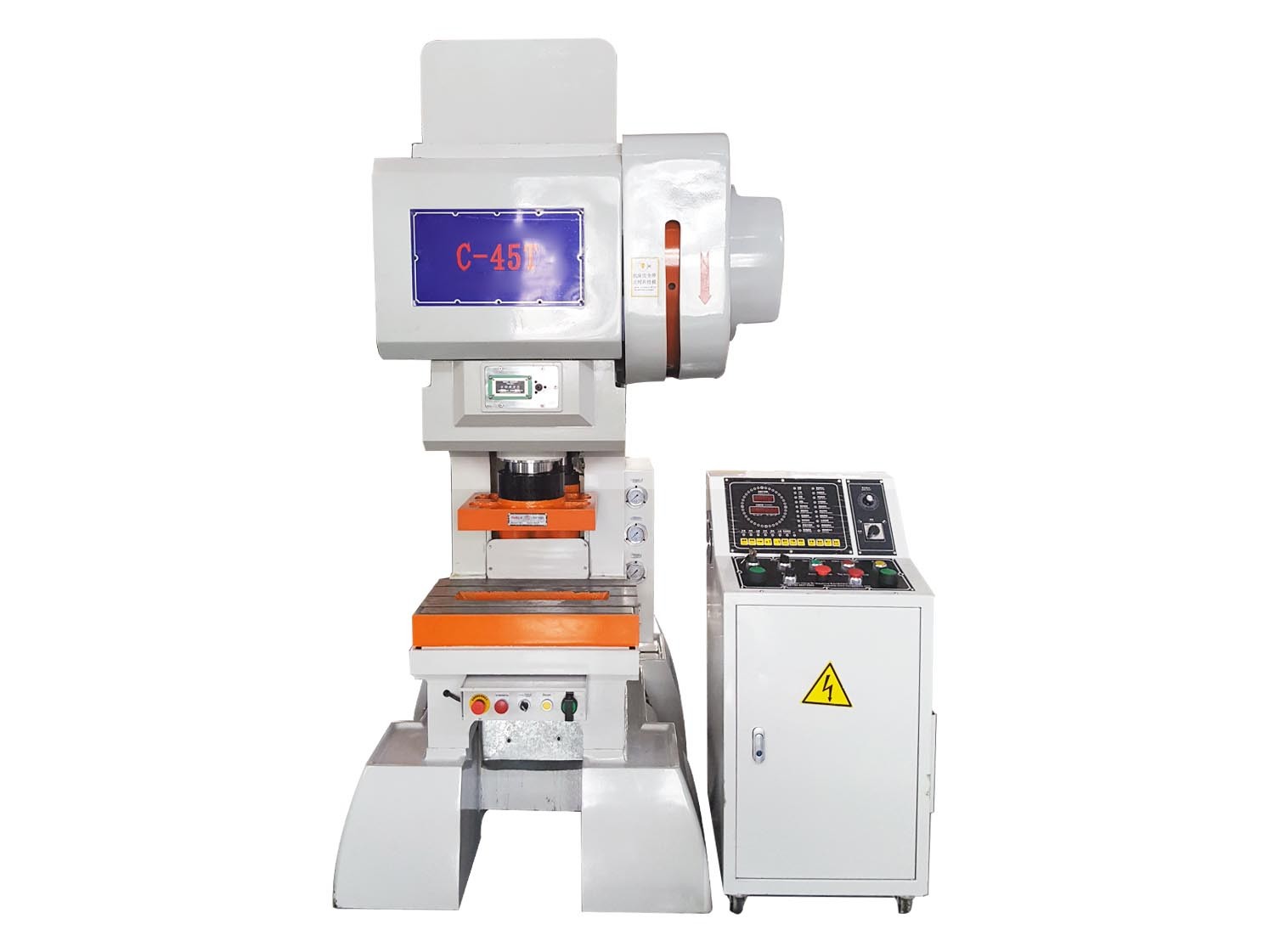

RC C FRAME HIGH SPEED PRESS

Features:

Machine body made by high intensive cast iron, through natural environment eliminates stress.

High accuracy transmission gears and high rigidity crank guarantee a long life and high accuracy of press machine.

Forced lubrication system ensures the operation reliabilty.

Electric control system achieve a high automation operation.

Specification

Model	RC-25T			RC-45T
Capacity	25 tons			45 tons
Stroke Length	20 mm	25 mm	30 mm	25 mm	30 mm	40 mm
Stroke per Min	200-1000	200-900	200-800	200-800	200-700	200-600
Die Height	185-215	183-213	180-210	213-243	210-240	205-235
Bolster Area	600 * 300 * 80 mm			680 * 420 * 90 mm
Slide Area	330 * 225 mm			420 * 320 mm
Blanking Hole	100 * 300(400) mm			100 * 400(500) mm
Motor	5 HP			7.5 HP
Gross Weight	2919 kgs			5080 kgs
Loop System	Forceful Automation
Speed Control	Inverter
Clutch & Brake	Air & Friction
Vibration System	Mounting or pneumatic mounting for optional

Model	RC-65T			RC-85T
Capacity	65 tons			85 tons
Stroke Length	30 mm	40 mm	50 mm	40 mm	50 mm	60 mm
Stroke per Min	200-700	200-600	200-500	200-400	200-300	200-300
Die Height	206-256	200-250	196-246	310-360	305-355	300-350
Bolster Area	890 * 520 * 130 mm			1000 * 600 * 140 mm
Slide Area	540 * 340 mm			700 * 450 mm
Blanking Hole	120 * 460(660) mm			170 * 460(700) mm
Motor	15 HP			30 HP
Gross Weight	8016 kgs			14500 kgs
Loop System	Forceful Automation
Speed Control	Inverter
Clutch & Brake	Air & Friction
Vibration System	Mounting or pneumatic mounting for optional

Dimensions

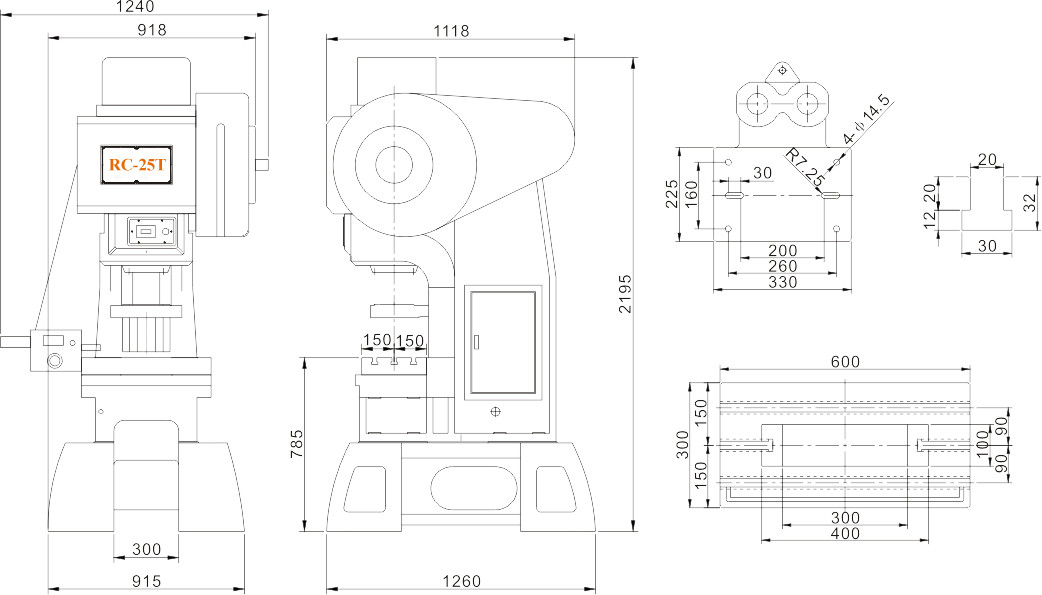

RC-25T

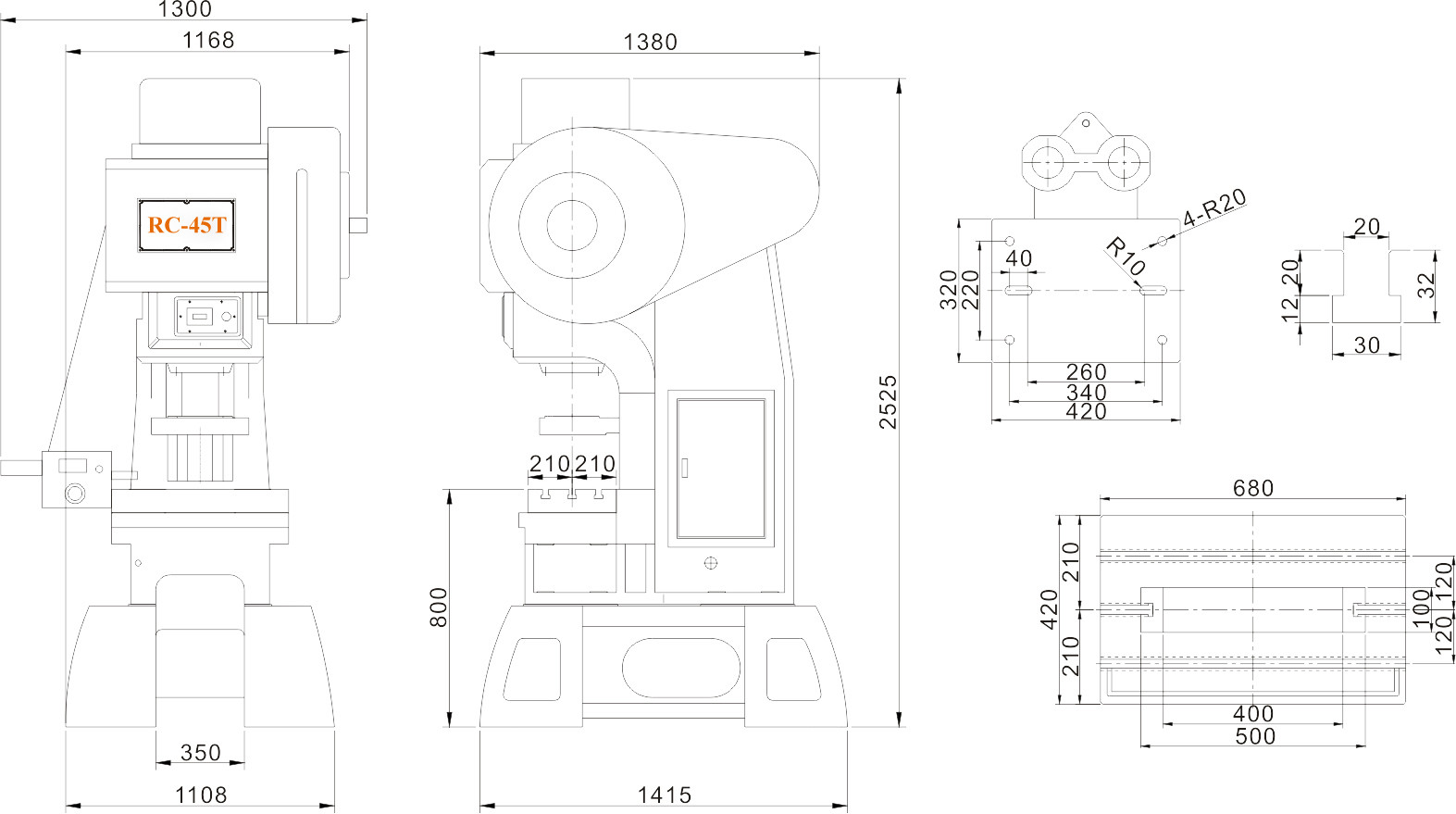

RC-45T

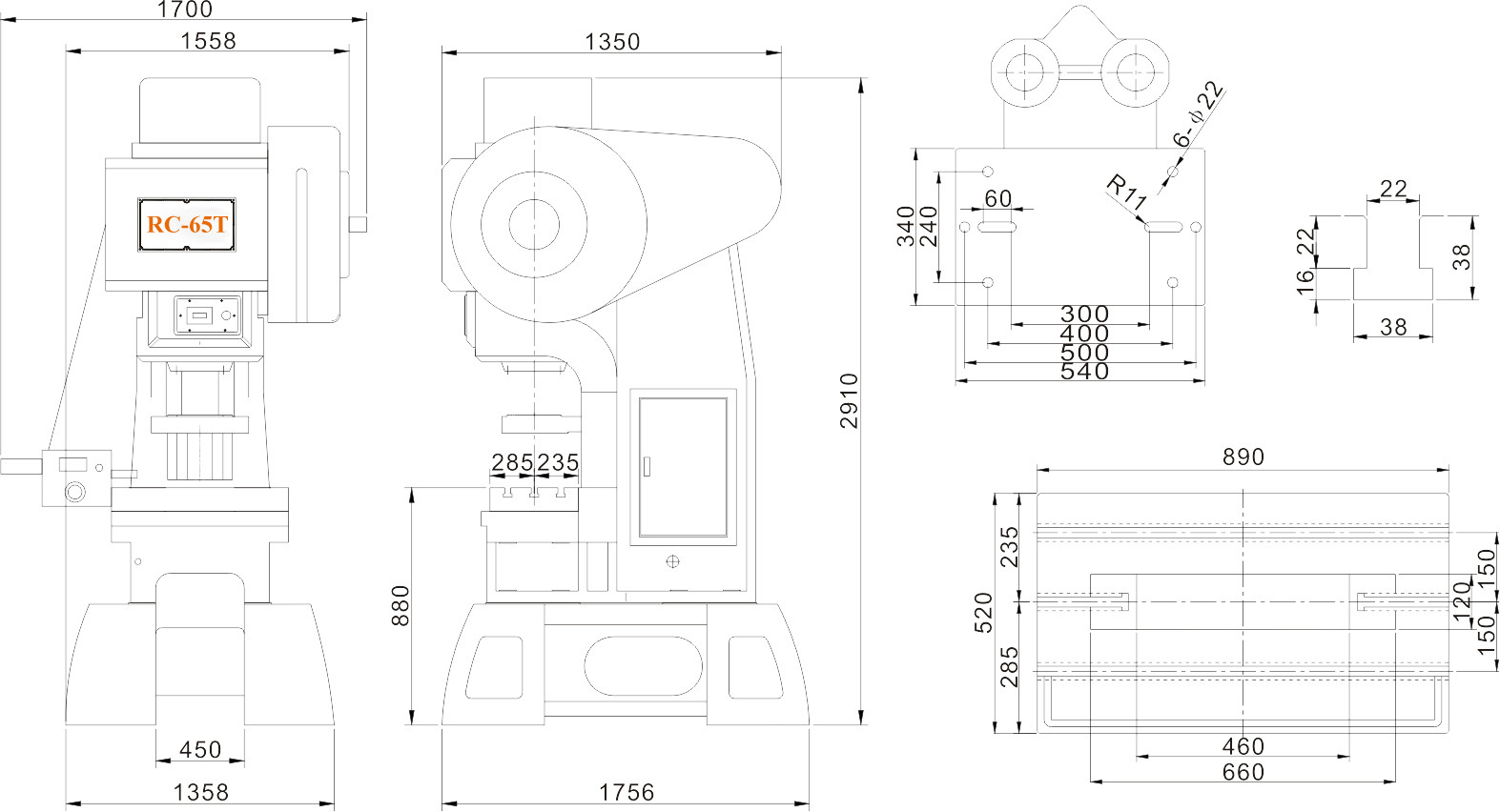

RC-65T

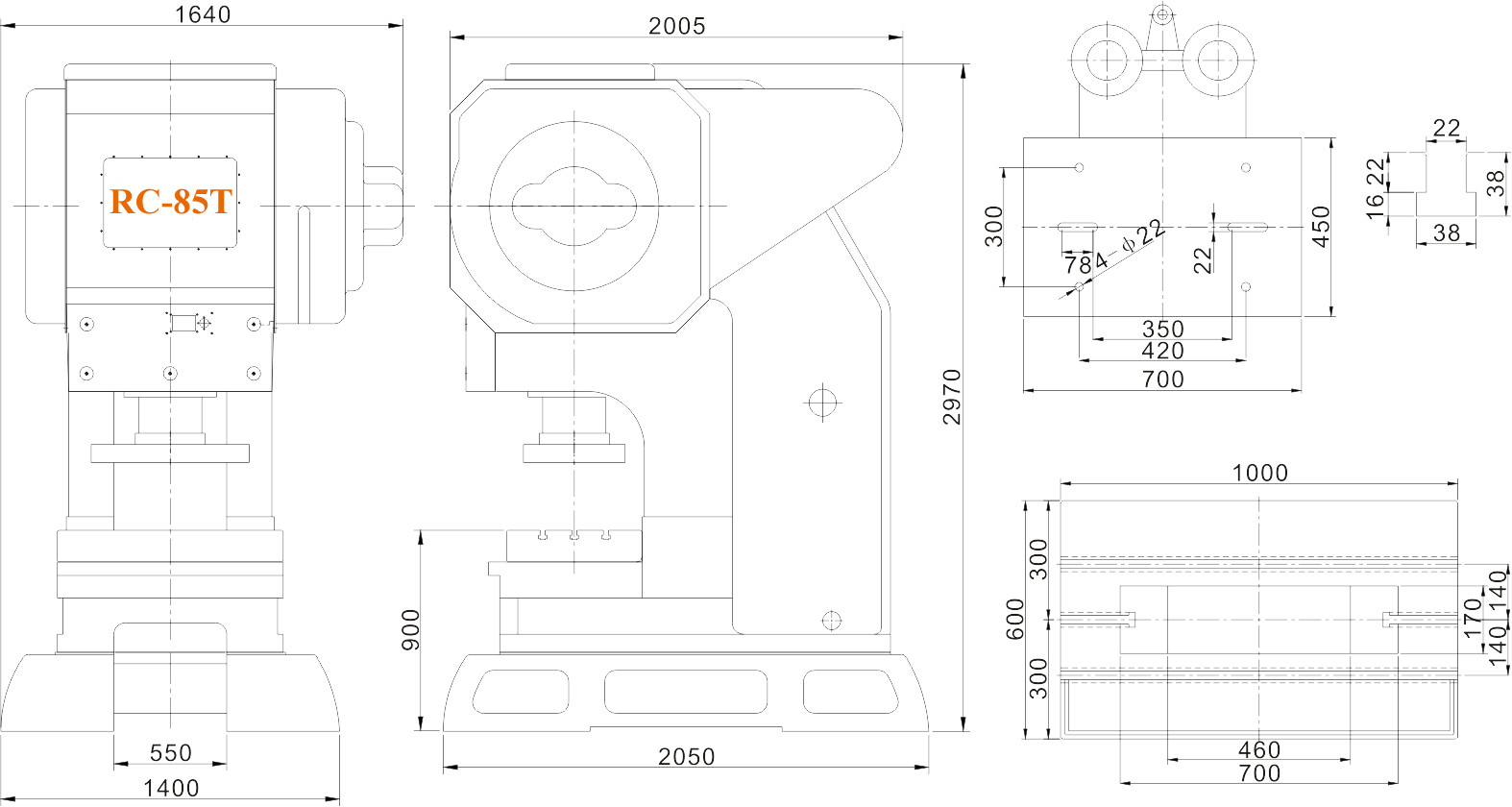

RC-85T

Application

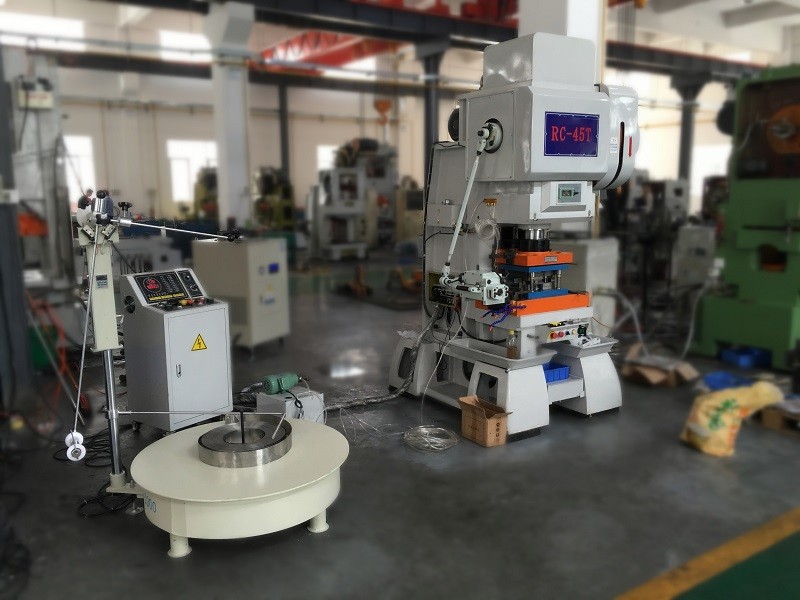

High speed snap button production line:

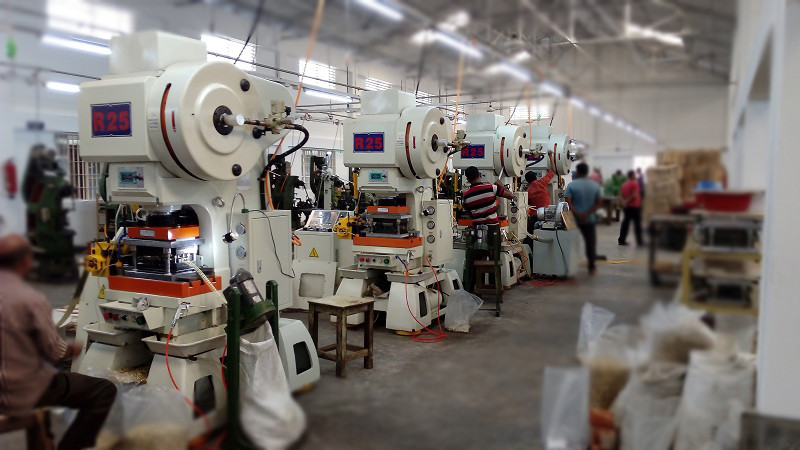

High speed metal button production line in our customer's factory:

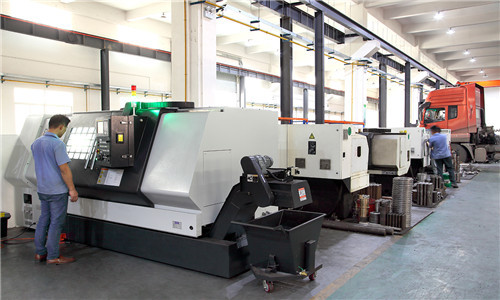

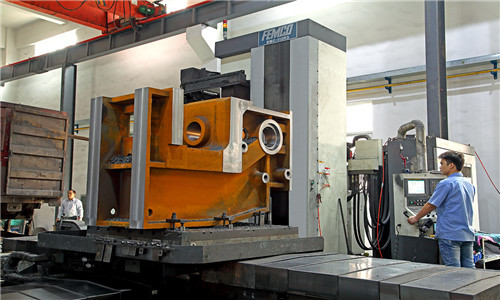

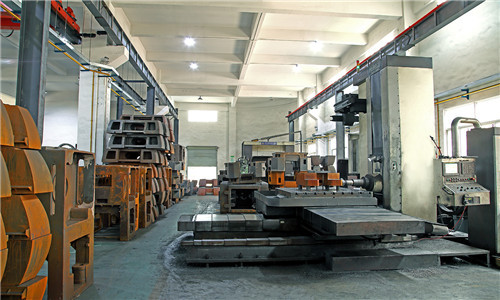

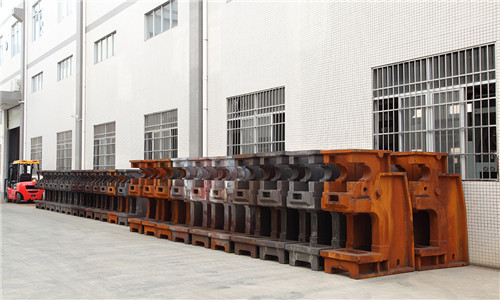

Press Manufacturing Workshop
