GLK-H Decoiler Straightener Feeder for High Strength Material

GLK-H Decoiler Straightener Feeder for High Strength Material

GLK-H Decoiler Straightener Feeder for High Strength Material
GLK-H Decoiler Straightener Feeder for High Strength MaterialGLK-H Decoiler Straightener Feeder for High Strength MaterialGLK-H Decoiler Straightener Feeder for High Strength MaterialGLK-H Decoiler Straightener Feeder for High Strength MaterialGLK-H Decoiler Straightener Feeder for High Strength Material
CategoriesGLK-H High Strength Material Coil Handling Systems
AlbumView larger image
BrandHongEr
ModelGLK-H
Applied industryPrecision stamping parts, automobiles, aerospace,
Applicable materialsCold rolled plate, pickled plate, high strength plate and hot rolled plate
Coil carThe support structure is type to assist the loading operation
Expansion styleHydraulic block driven
Limitting roller width adjustElectric adjustment
Coil input supporting armHydraulic drive, touch screen control
Straightener number adjustment wayElectric adjustment
Feeding line height adjust wayElectric adjustment
Upper correction rollerscan be lift off(optional design).
Update Time2018-11-21
Detail Information
Product Description
GLK-H DECOILER STRAIGHTENER FEEDER 3 IN 1

Capacities:
Coil width: 70mm-1300mm

Material thickness: 0.6mm-6.0mm

Coil weight: 7-15T

Line speed: 20m/min

Line length: 5m

Feeding length: Max.9999.99mm

Material: High Strength Material

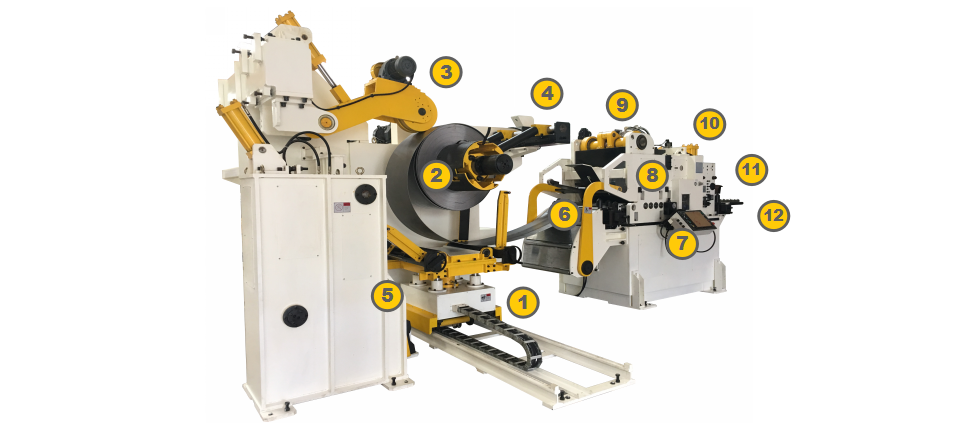

1. Coil Car
Hydraulic power, wear-resisting surface
2. Decoiler Mandrel
Hydraulic expansion, delta inverter
3. Pressing Arm
Coil well-knit, no disperse
4. Limiting Arm
Locating coil, avoid coil shuffing
5. Support Arm
Auxiliary support coil
6. Coil Inlet
With supporting swing arm
7. Control Board
Weinview touchscreen
8. Straightening Part
GCr15 steel straightener rolls
9. Electrical Circuitry Control
Precision electric adjustment
10. Shearing Unit
Hydraulic shear
11. Lubrication Unit
Automatic lubrication control, 20L
12. Outlet Bracket
Adjustable length
Specification
Model
GLK4-400H
GLK4-500H
GLK4-600H
GLK4-800H
GLK4-1000H
GLK4-1300H
Material
High Strength Material
Coil Width
70-400 mm
70-500 mm
70-600 mm
70-800 mm
70-1000 mm
70-1300 mm
Strip Thickness
0.6-6.0 mm
Feeding Length
Max. 9999.99 mm
Coil I.D.
Φ508
Coil O.D.
Φ1400
Loading Capacity
5000 kgs
5000 kgs
5000 kgs
7000 kgs
7000 kgs
10000 kgs
Feeding Speed
16-24 m/min
Feed Precision
±0.15mm
Straighten Rolls
Φ68mm * 7pcs (Up4/Down3)
Pinch Rolls
Φ88mm * 2pcs
Auxiliary Rolls
Φ68mm * 220mm *3 groups
Pressing Arm
Pneumatic Type
Expansion
Hydraulic Expansion
Uncoiler Motor
2.2 Kw
2.2 Kw
2.2 Kw
3.7 Kw
3.7 Kw
7.5 Kw
Servo Motor
7.5 Kw
7.5 Kw
11 Kw
11 Kw
14 Kw
14 Kw
* Machine Spec can be customized according to your specific demands.
Application

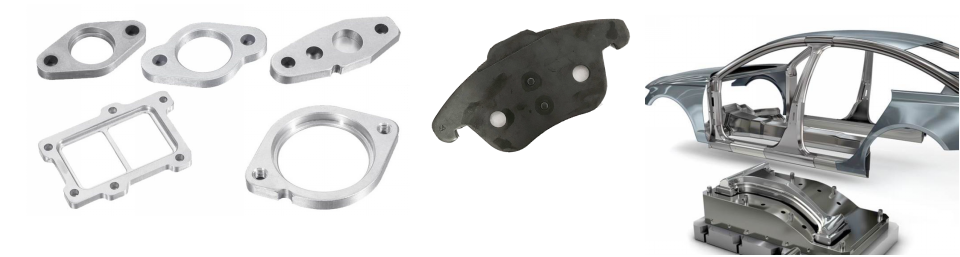

High strength automotive parts: Brake pad, Tie bar, Damper etc.
High strength hardware parts

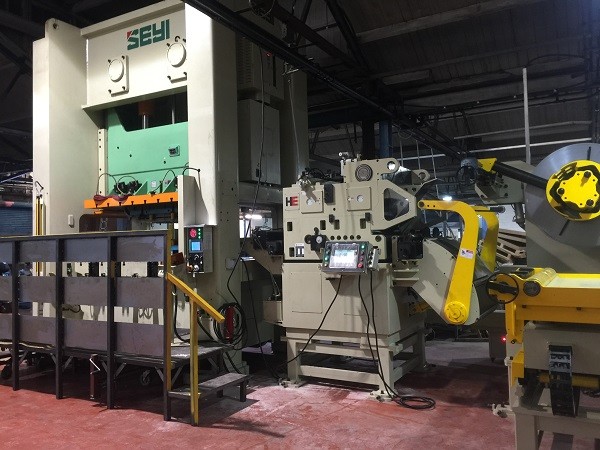

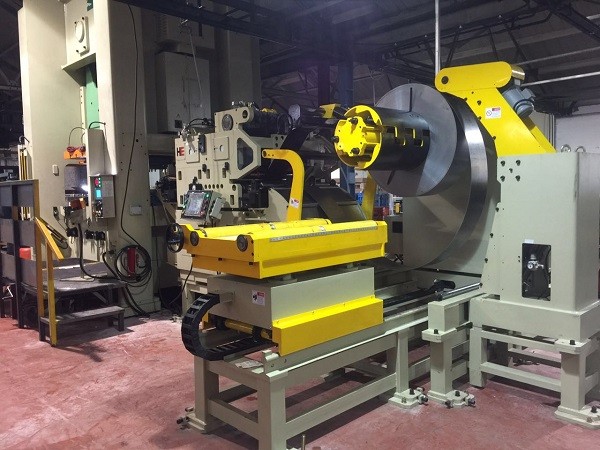

Decoiler straightener feeder 3 in 1 machine GLK4-1000GF for auto parts stamping in UK:

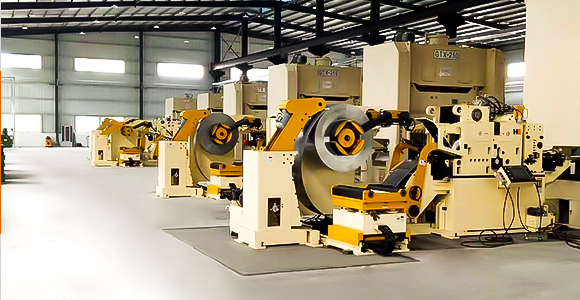

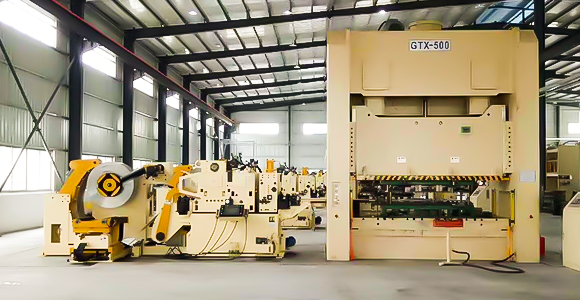

5 sets of decoiler straightener feeder 3 in 1 machine GLK4-H for automotive stamping:
