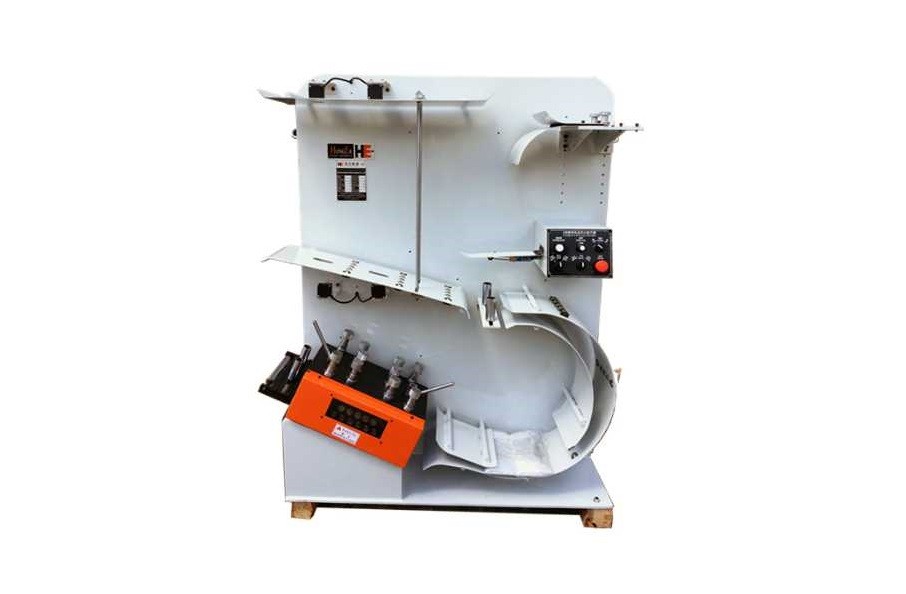

JMS S-LOOP STRAIGHTENER

JMS is HongEr S-loop type straightener, suitable for sheet metal strip thickness from 0.3mm to 1.2mm.

With S-loop material rack, JMS is ideal for high speed lamination stamping line.



High Quality Rolls:

Straightening Roll 15pcs

Material: GCr15

Hardness: HRC60±2
Specification
Model
JMS-200
JMS-300
Coil Width
200mm
300mm
Coil Thickness
0.3-1.2mm
Straightener Rolls
Ø32mm * 15pcs
Roller Adjustment
4 points adjusting
Transmission
Bottom Gear Drive
Power
1 HP
Application

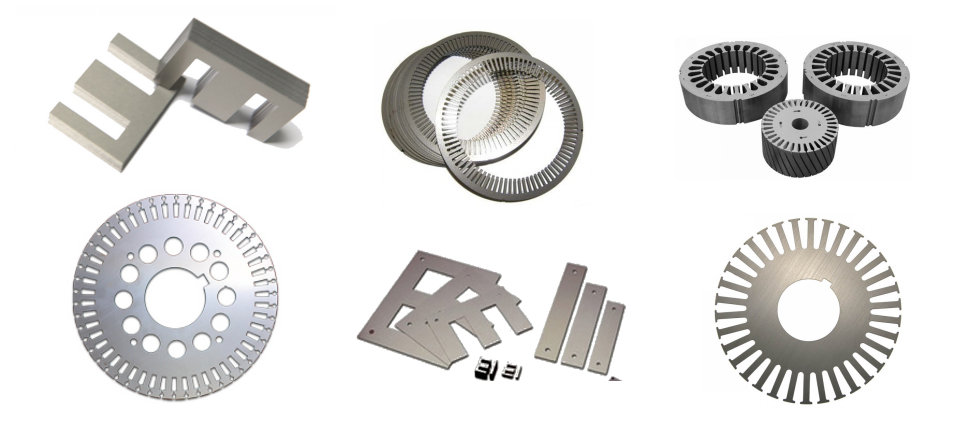

JMS S-loop straighteners are used in stator and rotor lamination stamping and EI laminations production line.

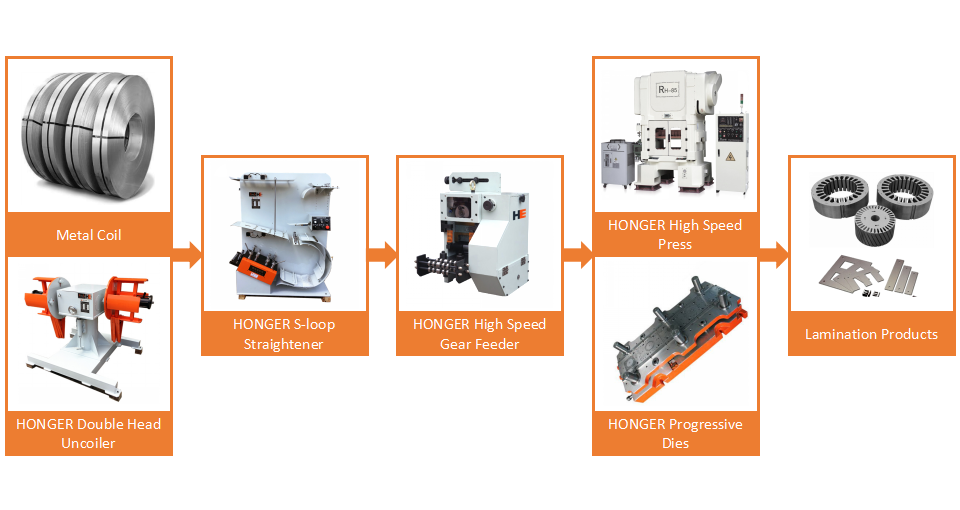

General configruation for lamination stamping line:
