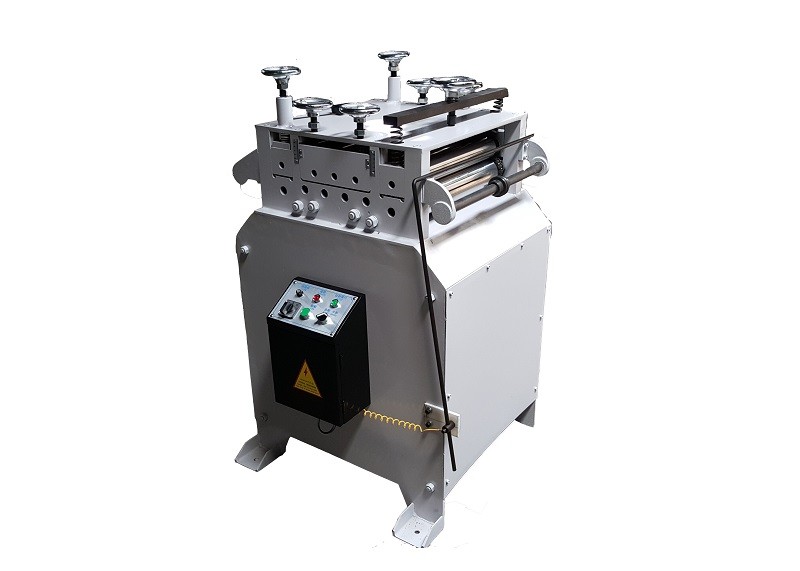

TL STANDARD SHEET METAL STRAIGHTENER

TL is HongEr standard sheet metal straightener.

Coil width up to 1300mm

Material thickness: 0.4mm-2.2mm

Line speed: 16m/min

Bottom gear drive, roller adjusted by handwheel


High Quality Rolls:

Straightening Roll 9pcs

Pinch Roll 2pcs

Material: GCr15

Hardness: HRC60±2
Specification
Model
TL-200
TL-300
TL-400
TL-500
TL-600
TL-700
TL-800
Coil Width
200mm
300mm
400mm
500mm
600mm
700mm
800mm
Coil Thickness
0.4-2.2mm
Straightening
Rolls
Ø50mm * 7pcs
Ø60mm * 7pcs
Pinch & Feed
Rolls
Ø60mm * 2pcs
Ø80mm * 2pcs
Ø70mm * 2pcs
Ø98mm * 2pcs
Power
1 HP
2 HP
3 HP
5 HP
Speed
16m/min
Application

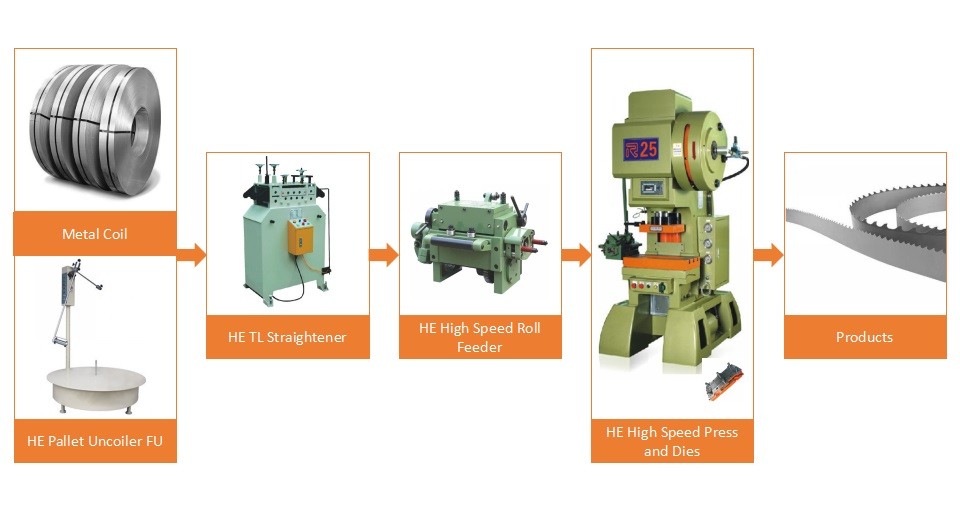

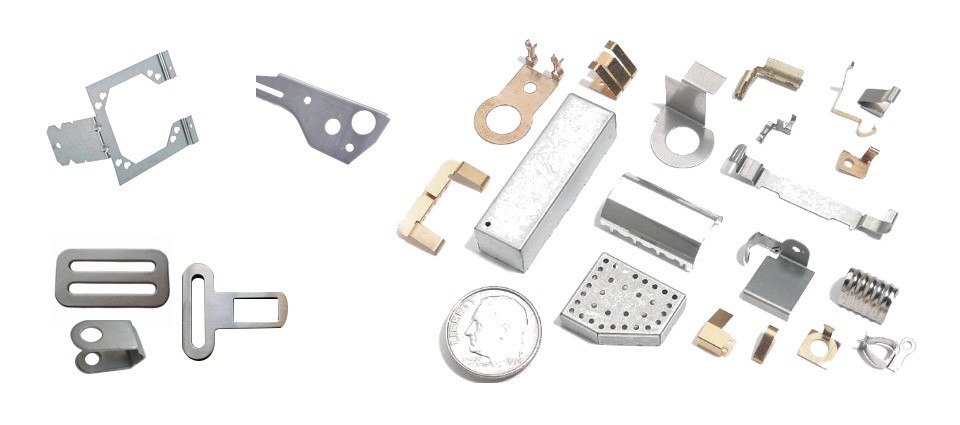

TL straightener can be found in many different sheet metal stamping line, such as small metal parts stamping, buckles production etc.

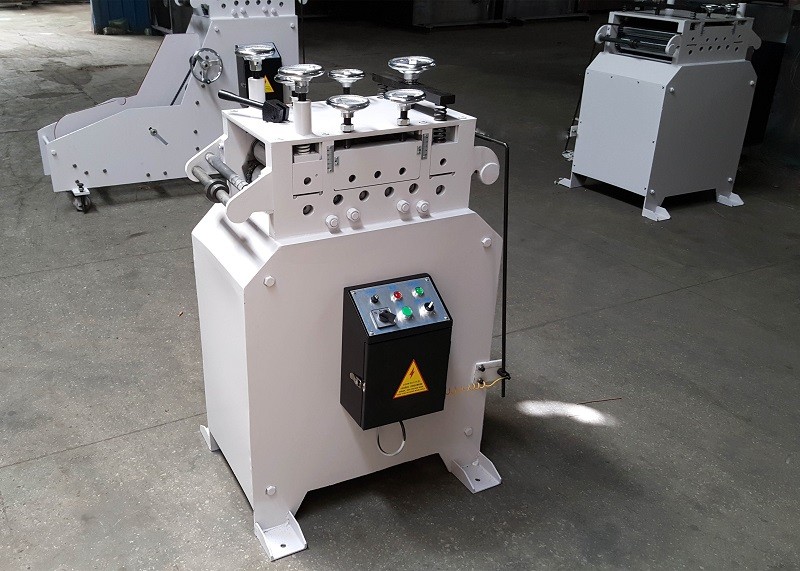

TL standard sheet metal
straightener machine
to Thailand
