Honger Machine - Decoiler Straightener Feeder 3 in 1 Machine GLK4-600

Honger Machine - Decoiler Straightener Feeder 3 in 1 Machine GLK4-600
Issue Time:2018-01-22

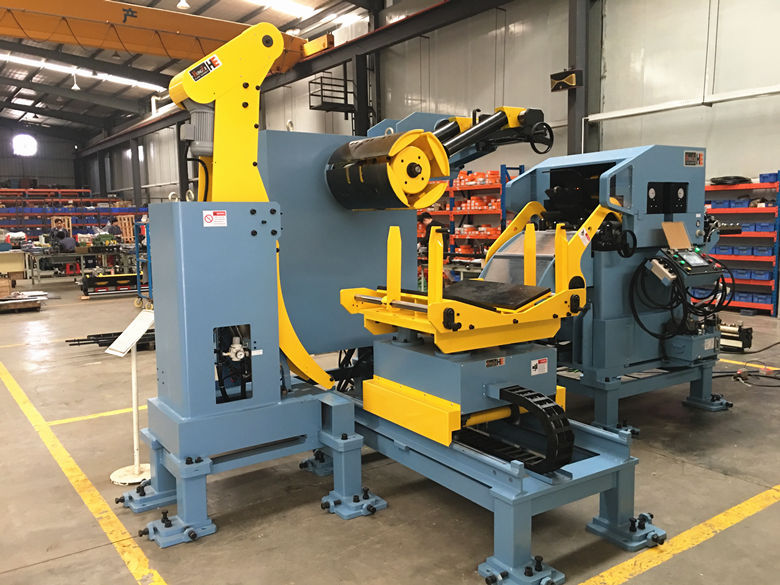

Honger Machine - Decoiler Straightener Feeder 3 in 1 Machine GLK4-600
This is the decoiler straightener feeder 3 in 1 machine GLK4-600 for our UK customer, also the second order placed from us.
Suitable for coil thickness:0.6-6.0mm
Coil width:70-600mm
Coil loading weight:5000kg
Coil I.D :508mm Coil O.D :1400mm

Honger 3 in 1 combined decoiling straightening feeder for steel coil flattening for press machine for stamping metal parts:
It used to uncoiling metal strip from coil stock, straightening it to required flatness and feed it to press machine for stamping process.
Thanks to a well-knit body and advanced mechanical structure, it can easily handle coil stock up to 10tons.
With YASKAWA servo drive, YASKAWA servo motor and MITSUBISHI PLC, the feeding line can achieve the very accurate feeding ±0.15mm.
Moreover, the whole compact feeding system is only 4.5m length, which will save a lot of workspace for your press workshop.

Send the inquiry, Honger is ready to design the best machine solution for you!
