Zigzag Feeder Machine NCP-800 for Indian Customer

Zigzag Feeder Machine NCP-800 for Indian Customer
Issue Time:2017-12-20
Zigzag Feeder Machine NCP-800 for Indian Customer

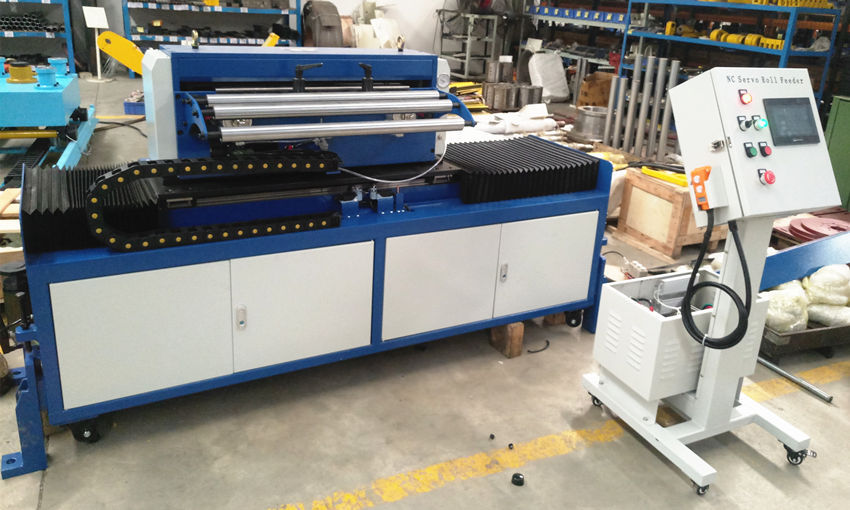

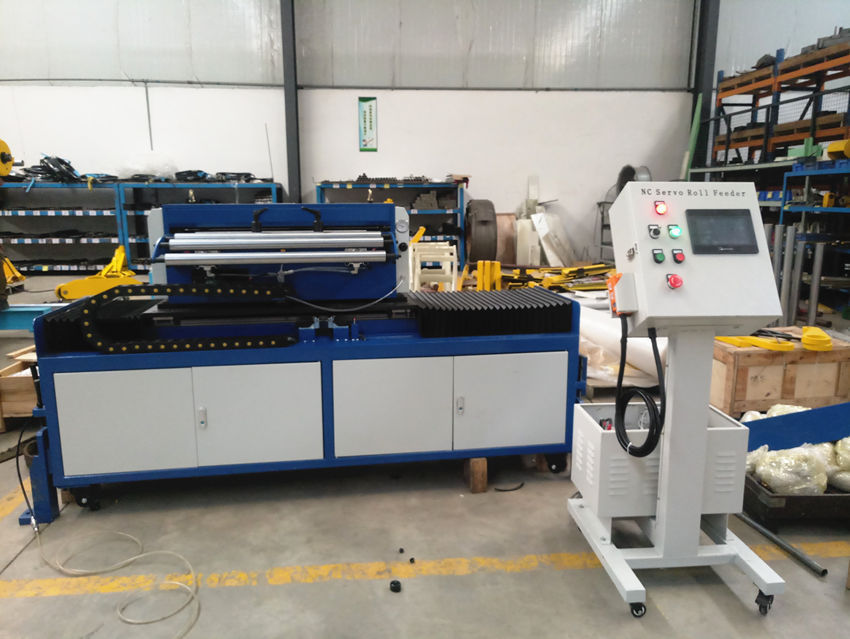

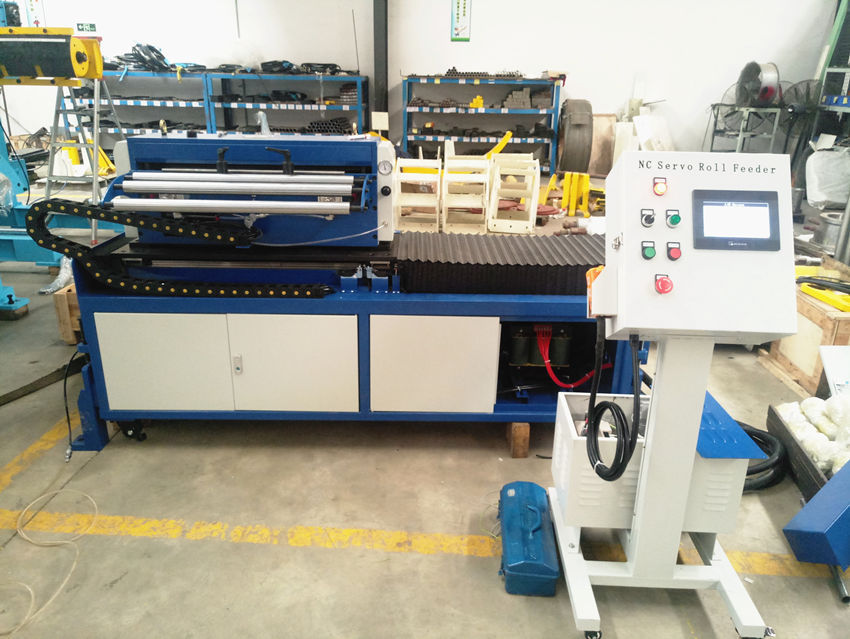

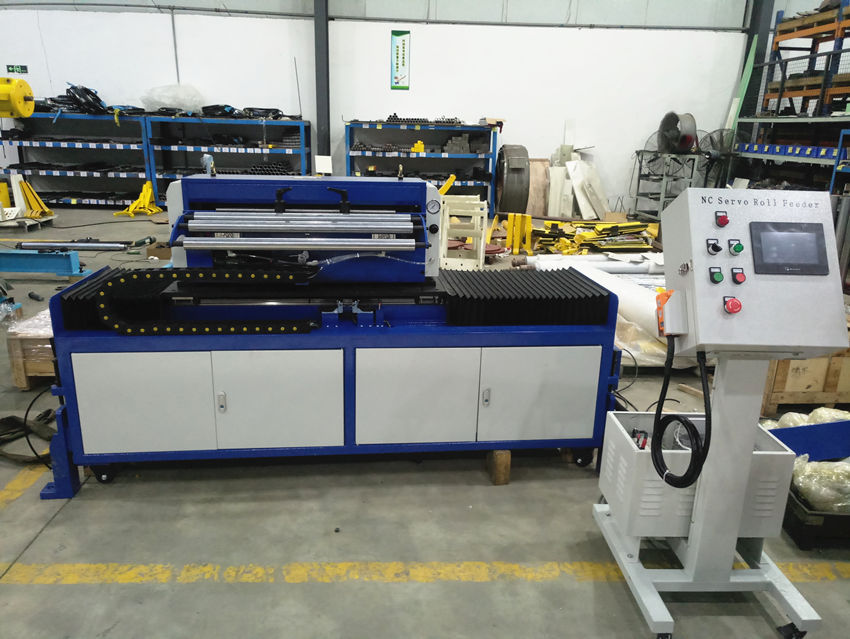

Honger zigzag feeder machine NCP-800 for Indian customer:
Zigzag feeder machine is widely used for circle blanking line, greatly saving coil material.
Suitable for all kinds of metal coil feeding, usually equipped with the deep throat for circle blanking line to make kitchenware, tray, filter, and other metal flat container.

Max. Coil width: 800mm

Max. Coil thickness: 0.5mm-1.0mm

Feeding length: 0-9999.99mm

Suitable material: σb≤500Mpa σs≤280Mpa
From left to right moving speed: Max. 18m/min
From from to back feeding speed: Max. 24m/min
From left to right moving distance: Max. 400mm
From left to right moving Motor: YASKAWA ,JAPAN. AC 7.5Kw.
From from to back feeding Motor: YASKAWA ,JAPAN. AC 5.5Kw.
Feeding stroke speed: 24 SPM (24 hits/minute)

Feeding accuracy: ±0.2mm
