Compact Coil Handling and Press Feeding Equipment

GLK2-400A

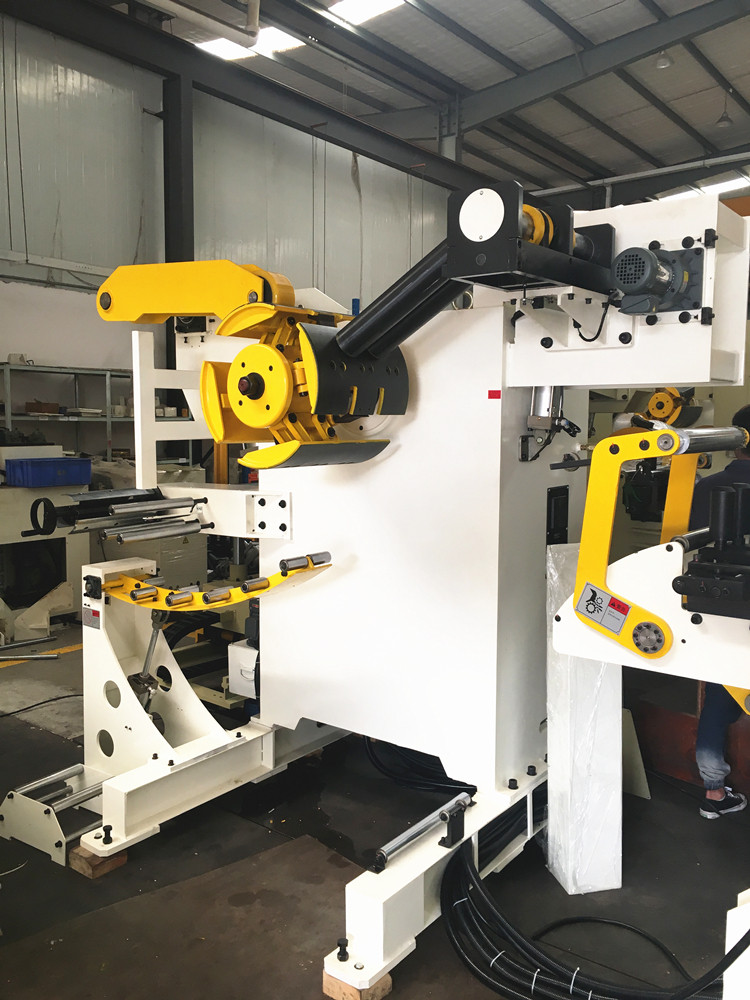

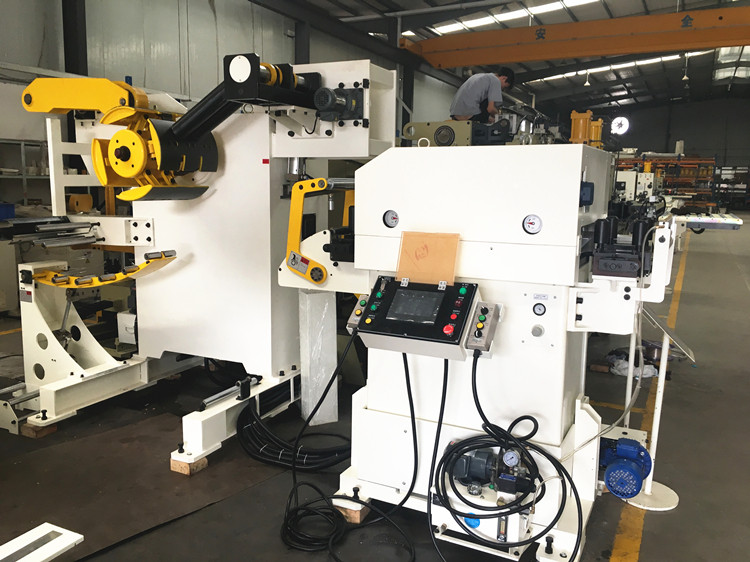

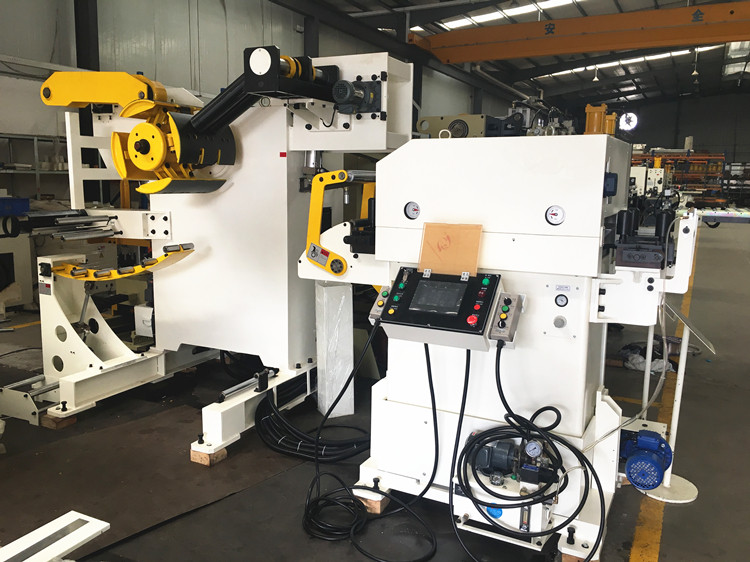

Honger Decoiler Straightener Feeder 3 in 1 Machine for Metal Stamping Line:

Model:GLK2-400A

Coil width: 50-400mm

Coil thickness: 0.2-3.2mm

Coil weight: 5000kg

Coil I.D.: 508mm

Coil O.D.: 1400mm

Feeding direction: from left to right

Feeding speed: 16m/min

Expansion way: hydraulic

Brake mode: pneumatic

Power supply: 380V 50HZ

Feeding line height: 1380±100

Feeding rolls: upper 1/ lower 1 Φ66

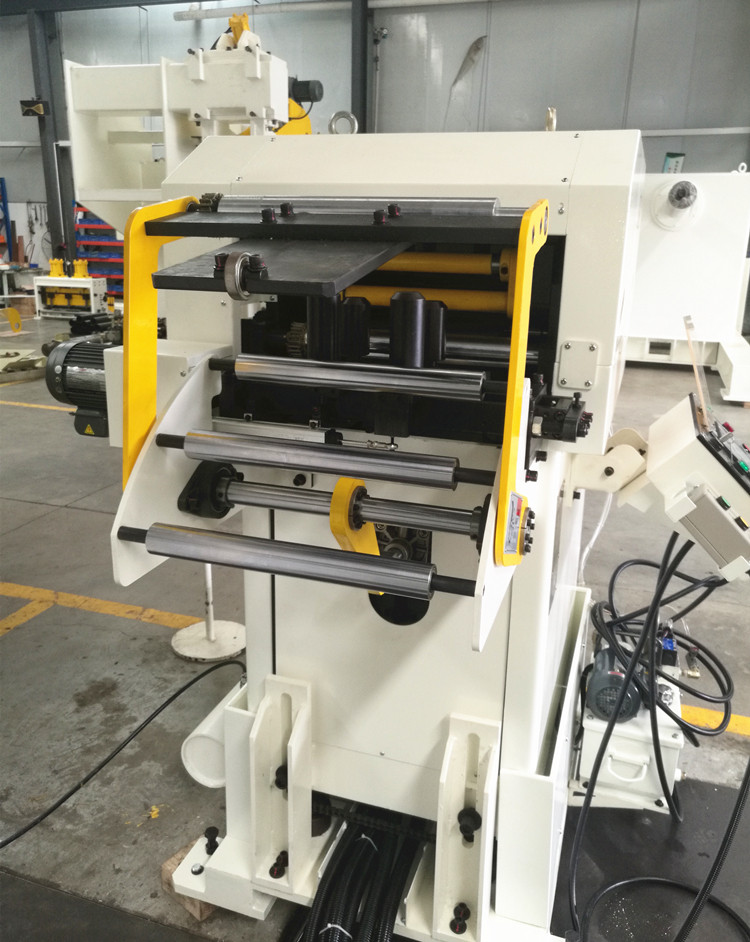

Straightening rolls: upper 6/ lower 5 Φ48

Servo motor: Yaskawa,Japan

Touch screen: Mitsubishi

With automatic oiling machine

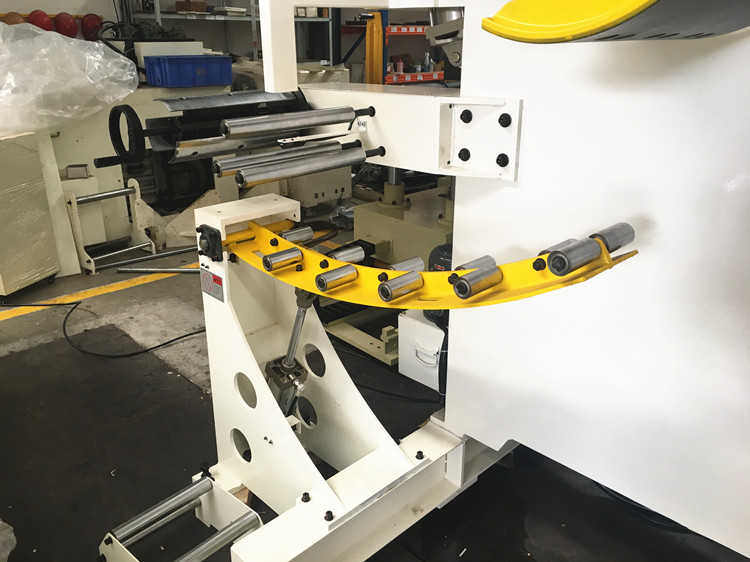

With wrapping papaer automatic collecting machine for the decoling part
