Uncoiler Straightener Feeder 3 in 1 Machine for Coil Thickness 0.6-6.0mm Stamping

Uncoiler Straightener Feeder 3 in 1 Machine for Coil Thickness 0.6-6.0mm Stamping
Issue Time:2017-10-18

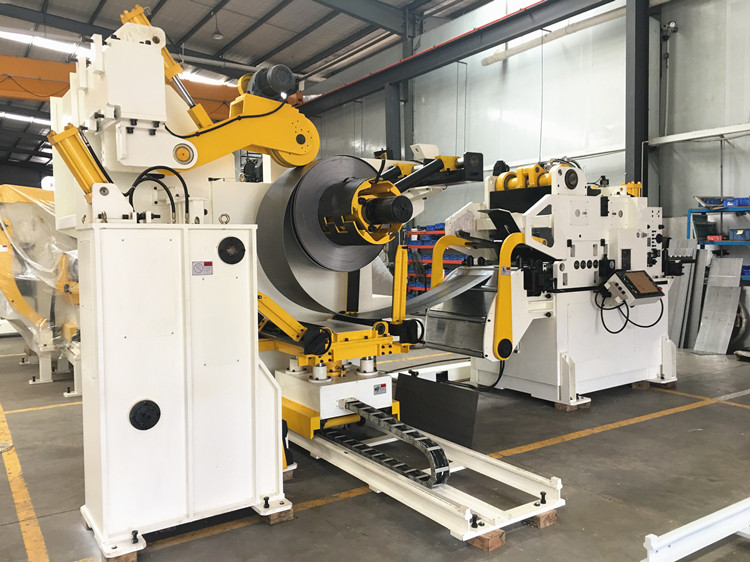

Uncoiler Straightener Feeder 3 in 1 Machine for Coil Thickness 0.6-6.0mm Stamping

Specifications:
Coil thickness: 0.6-6.0mm
Coil width: 100-800mm
Coil weight: 12000kg
Coil I.D.: 508-610mm
Coil O.D.: 1400-2000mm
Feeding speed: 22m/min
Feeding direction: From left to right
Expansion way: Hydraulic
With coil loading car

Features:
1. Working space will be greatly saved by innovative structure of the machine.
2. Human-computer intelligent interface is adopted to simplify operating and easy feeding.
3. Japanese servo motors YASKAWA are adopted to guarantee high precision feeding.
4. Feeding and straightening rolls material is GCR15, surface hardness can reach HRC60-62.
5. Various options are available for different sizes of punching machines and operational requirements.







































































































Send the inquiry, Honger is ready to design the best machine solution for you!
