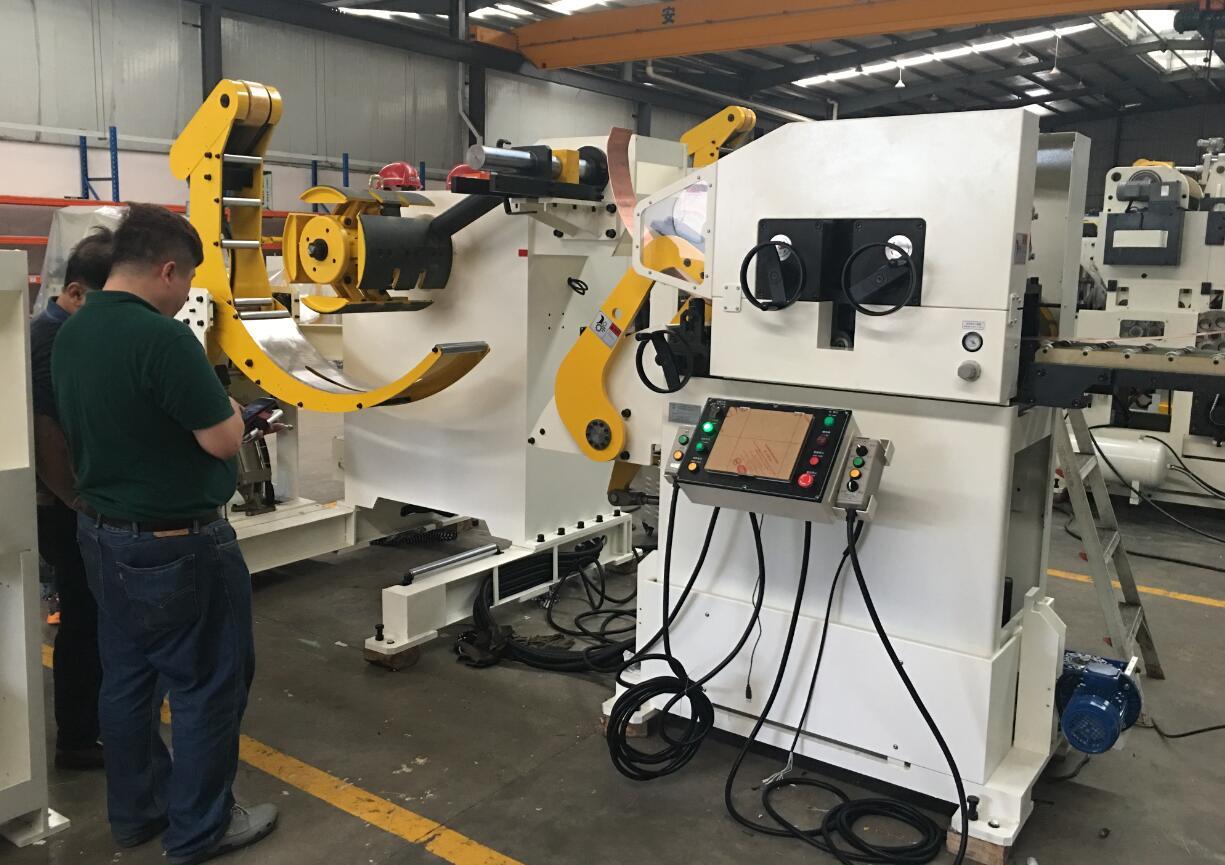

Decoiler Straightener Feeder 3 in 1 Machine for Copper Feeding

Decoiler Straightener Feeder 3 in 1 Machine for Copper Feeding
Issue Time:2017-07-05

3-in1 Feedlines: Innovative 3-in-1 Combination

 Servo Straighteners/Feeders/Uncoilers


GLK4-400 technical data as below:

Feeding direction: From Left to Right

Feeding speed: 22m/min

Coil width: 30-400mm

Coil thickness: 0.6-6.0mm

Coil weight: 5000kg

Inner diameter: ø508mm

Outer diameter: ø800-ø1400mm

Feeding line height: 1320mm ± 100mm

Feeding line height adjusted: Electric control

Expansion way: Manual

Braking way: Pneumatic disc brake



Send the inquiry, Honger is ready to design the best machine solution for you!
