GLK5-800 Decoiler And Coil Feeder Machine For Automation Feeding System (0.8-9.0mm)
GLK5-800 Decoiler And Coil Feeder Machine For Automation Feeding System (0.8-9.0mm)
![GLK5-800 Decoiler And Coil Feeder Machine For Automation Feeding System (0.8-9.0mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6996107.jpg?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![GLK5-800 Decoiler And Coil Feeder Machine For Automation Feeding System (0.8-9.0mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6996107.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GLK5-800 Decoiler And Coil Feeder Machine For Automation Feeding System (0.8-9.0mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6996108.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GLK5-800 Decoiler And Coil Feeder Machine For Automation Feeding System (0.8-9.0mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6996109.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GLK5-800 Decoiler And Coil Feeder Machine For Automation Feeding System (0.8-9.0mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6996110.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GLK5-800 Decoiler And Coil Feeder Machine For Automation Feeding System (0.8-9.0mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6765494.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | GLK5 (0.8-9.0mm) servo coil feeding system |
---|---|
Brand | HongEr |
Model | GLK5-800 |
Applicable material | SPCC ,SPHC,Galvanized coil,Aluminium coil etc. |
Coil car | The support structure isshape, the surface is treated with sandblasting and rust prevention |
Pressing arm and supporting arm | Pressing arm and supporting arm |
Expansion style | Hydraulic pull rod driven |
Limitting roller width adjust | Screw rod + hand wheel. Center alignment reference with scales; |
Coil Input supporting arm | Pneumatic driven, touch screen controlled |
Straightener roller adjustment | Worm gear drive,adjusted by electric |
Straightener auxiliary roller | Placed on the center |
Feeding line height adjust way | Motor-driven , Feeding line height ±100mm |
Update Time | Jul 27,2024 |
Detail Information
Product Description

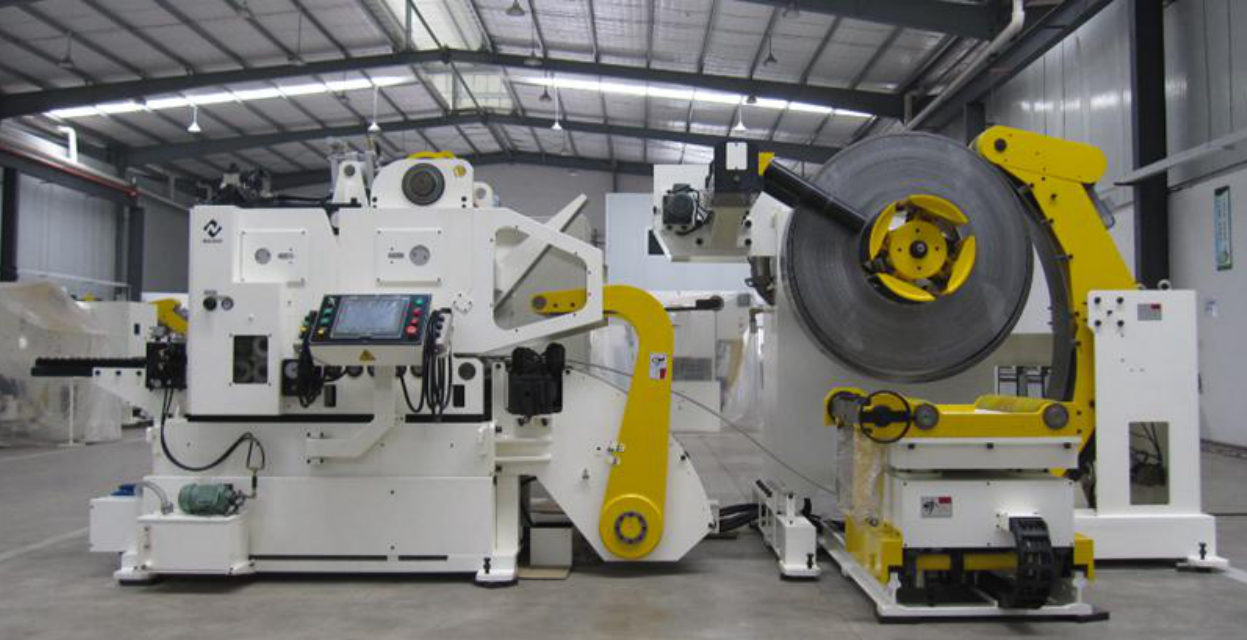

GLK5-800 DECOILER STRAIGHTENER FEEDER 3 IN 1 FOR AUTOMATION FEEDING
![](https://icdn.tradew.com/file/201405/1556694/png/6996166.png?x-oss-process=image/quality,Q_90)
Capacities:
Coil width: 70mm-800mm
Material thickness: 0.8mm-9.0mm
Coil weight: 5T
Line speed: 22m/min
Line length: 5m
Material: CR Steel, HR Steel, Galvanized Steel etc.
![](https://icdn.tradew.com/file/201405/1556694/png/6996173.png?x-oss-process=image/quality,Q_90)

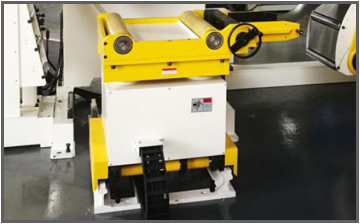

1. Coil Car
Hydraulic power, wear-resisting surface
![](https://icdn.tradew.com/file/201405/1556694/png/6996165.png?x-oss-process=image/quality,Q_90)

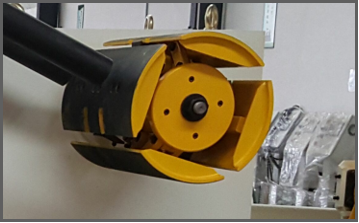

2. Decoiler Mandrel
Hydraulic expansion, delta inverter
![](https://icdn.tradew.com/file/201405/1556694/png/6765463.png?x-oss-process=image/quality,Q_90)
3. Pressing Arm
Coil well-knit, no disperse
![](https://icdn.tradew.com/file/201405/1556694/png/6765464.png?x-oss-process=image/quality,Q_90)
4. Limiting Arm
Locating coil, avoid coil shuffing
![](https://icdn.tradew.com/file/201405/1556694/png/6765465.png?x-oss-process=image/quality,Q_90)
5. Support Arm
Auxiliary support coil
![](https://icdn.tradew.com/file/201405/1556694/png/6765466.png?x-oss-process=image/quality,Q_90)
6. Coil Inlet
With supporting swing arm
![](https://icdn.tradew.com/file/201405/1556694/png/6765467.png?x-oss-process=image/quality,Q_90)
7. Control Board
Weinview touchscreen
![](https://icdn.tradew.com/file/201405/1556694/png/6765468.png?x-oss-process=image/quality,Q_90)

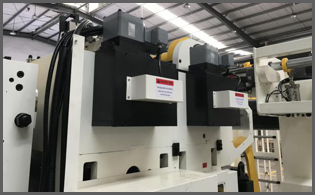

8. Straightening Part
GCr15 steel straightener rolls
![](https://icdn.tradew.com/file/201405/1556694/png/6996174.png?x-oss-process=image/quality,Q_90)
9. Electrical Circuitry Control
Precision straightening value adjustment
![](https://icdn.tradew.com/file/201405/1556694/png/6765470.png?x-oss-process=image/quality,Q_90)
10. Shearing Unit
Hydraulic shear
![](https://icdn.tradew.com/file/201405/1556694/png/6765358.png?x-oss-process=image/quality,Q_90)
11. Lubrication Unit
Automatic lubrication control, 20L
![](https://icdn.tradew.com/file/201405/1556694/png/6765471.png?x-oss-process=image/quality,Q_90)
12. Outlet Bracket
Adjustable length
Features & Funtions
![](https://icdn.tradew.com/file/201405/1556694/png/6996191.png?x-oss-process=image/quality,Q_90)

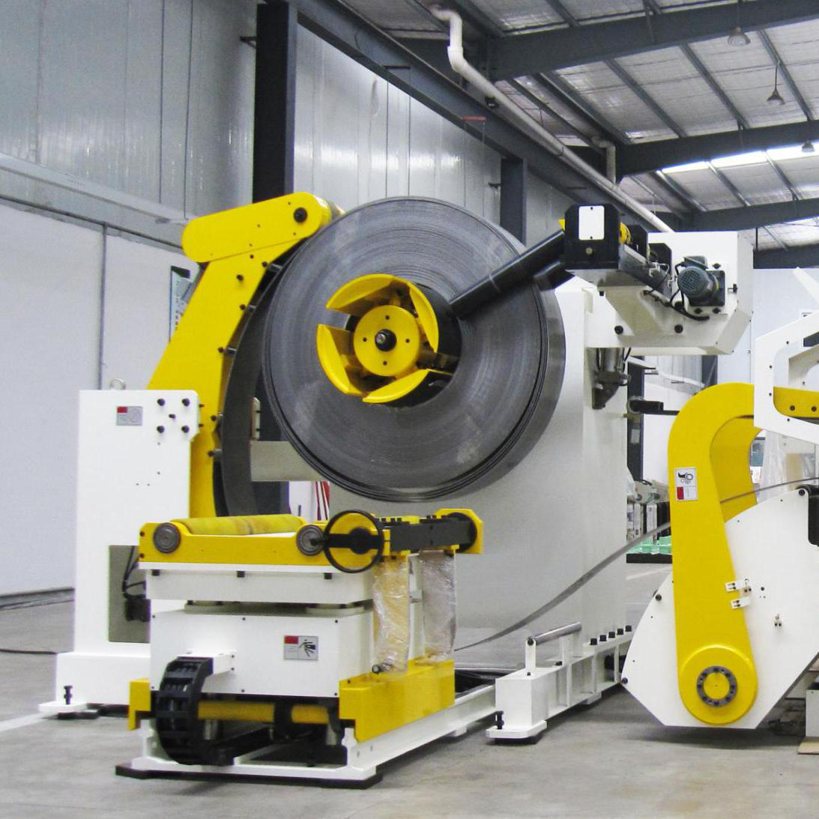

Decoiler
①, Decoiler mandrel loading width 70-800mm, loading weight 5000kgs
②, Expansion: Hydraulic connecting rod type, expansion range Φ475mm-Φ520mm
③, Drive Motor: AC gear motor, with inverter control
④, Driving Method: Big pitch double-row chain transmission
⑤, Brake Mode: Pneumatic disc brake
⑥, Uncoiling Direction: Counterclockwise
⑦, Pressing Arm: Add pressure on coil, prevent coil disperse, open/close by hydraulic ( PU wheel, 1pc). It is selective used when automatic operation.
⑧, Limiting Arms: Locating coil, prevent coil slip, open/close by air cylinder, distance between arms adjusted by hand wheel(electronic adjustment can be customized)
⑨, Supporting Arm: Auxiliary support the metal strip go to straightening part, powered by air cylinder
⑩, Loop control by photoelectric sensor

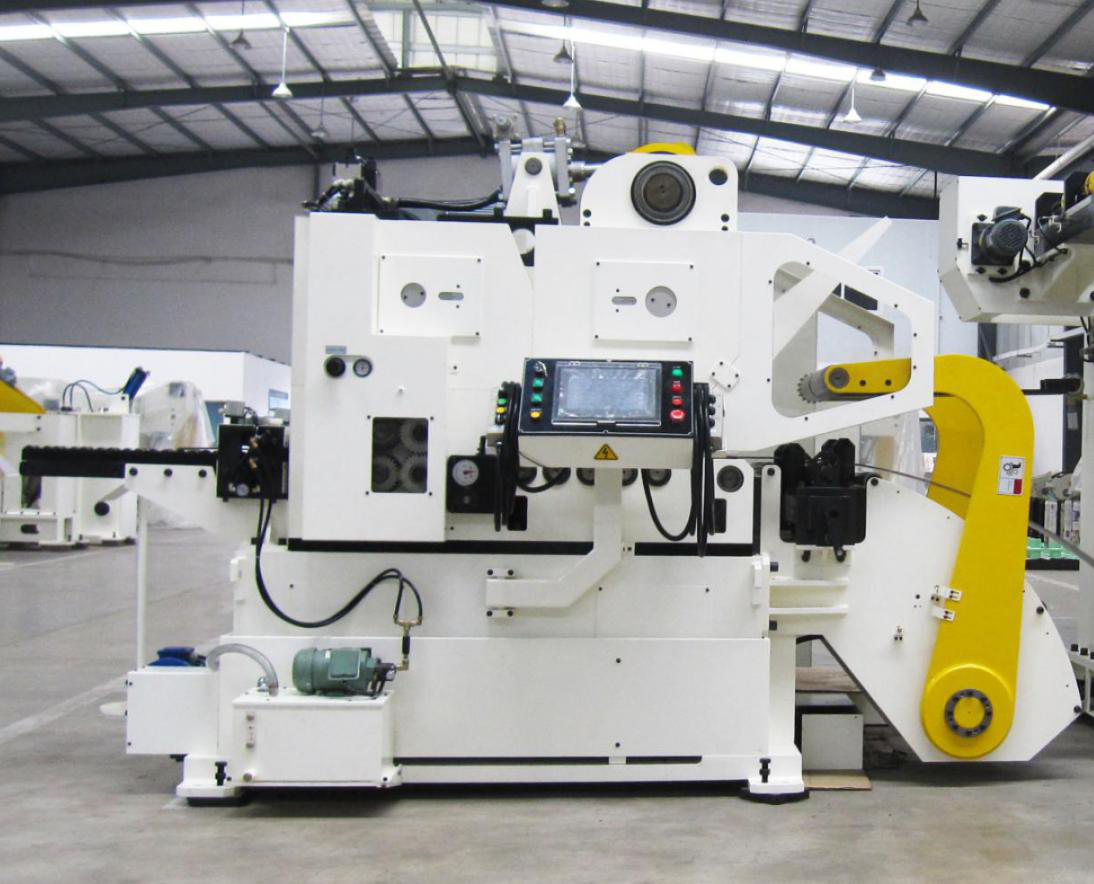

Straightener Feeder
①, Straightening Rolls: Φ88mm*12pcs (up6/down6)
②, Auxiliary Rolls: 1 group (up6/down5 for each group)
③, Feeding Rolls: 2pcs
④, Rolls Drive: Side gear drive
⑤, Straightening Rolls Support: Deep groove ball bearing
⑥, Straightening Rolls Release: Pneumatic type
⑦, Drive Method: AC servo motor, 15Kw
⑧, Straightening Pressure: Electric adjustment, displayed by dial scale, setting precision 0.1mm
Feeding Precision: ±0.15mm when feeding length 500mm
⑨, Max. Feeding Speed: 22m/min
⑩, Feeding Height Adjustment: Electric adjustment
![](https://icdn.tradew.com/file/201405/1556694/png/6996190.png?x-oss-process=image/quality,Q_90)
Specification
Model |
GLK5-800 |
|||||
Yield Strength | ≤245 | |||||
Tensile Strength | ≤392 | |||||
Coil Width |
70-800 mm |
|||||
Strip Thickness |
0.8-9.0 mm |
|||||
Feeding Length | Max. 9999.99 mm | |||||
Coil I.D. | Φ508 | |||||
Coil O.D. | Φ1400 | |||||
Loading Capacity | 5000 kgs | |||||
Feeding Speed | 16-24 m/min | |||||
Feed Precision | ±0.15mm | |||||
Straighten Rolls | Φ88mm * 12pcs (Up6/Down6) | |||||
Pinch Rolls | Φ120mm * 2pcs | |||||
Auxiliary Rolls | Φ68mm * 220mm *3 groups | |||||
Pressing Arm | Hydraulic Type | |||||
Expansion | Hydraulic Expansion | |||||
Uncoiler Motor | 2.2 Kw | |||||
Servo Motor | 15 Kw |
* Machine Spec can be customized according to your specific demands.
* Coil Feeding line for high strength material, please check our GLK-H series
Application
Automotive parts: Tie bar, Bracket, Damper, Brake pad
Electrical accessory: Shell parts of printers, computers etc.
Hardware parts
![](https://icdn.tradew.com/file/201405/1556694/png/6765477.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201405/1556694/jpg/6996193.jpg?x-oss-process=image/quality,Q_90)

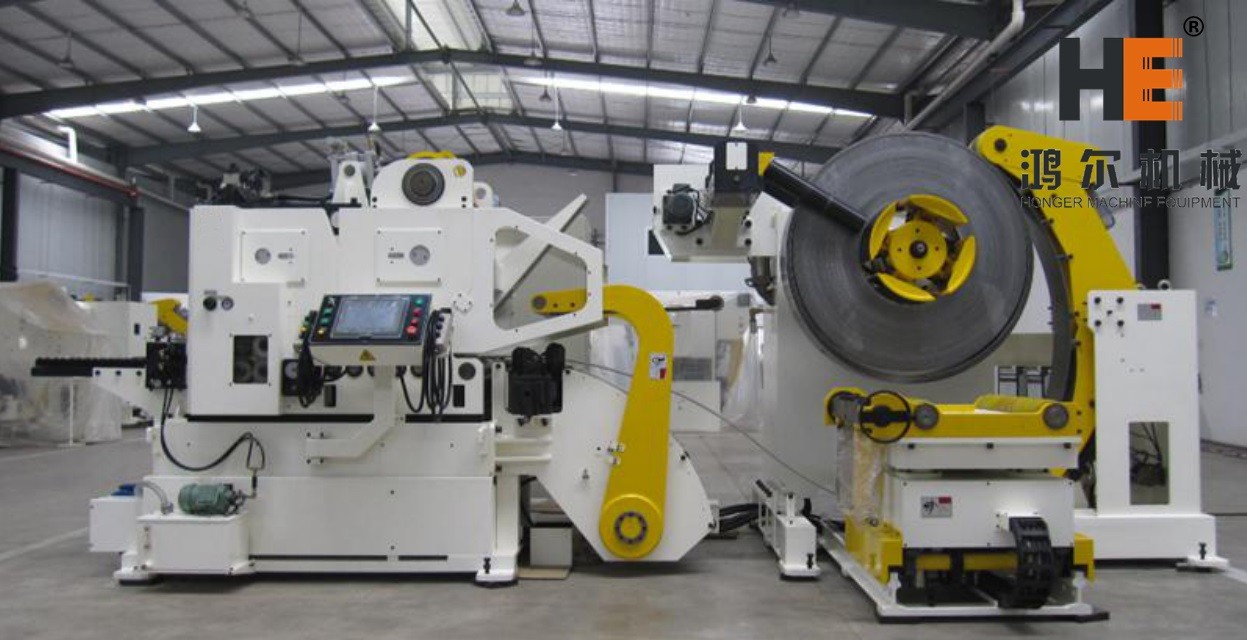

Uncoiler and coil feeder machine for automotive stamping line
