GLK3-500 (Coil Width 500mm, Thickness 0.5-4.5mm)
GLK3-500 (Coil Width 500mm, Thickness 0.5-4.5mm)
![GLK3-500 (Coil Width 500mm, Thickness 0.5-4.5mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6989516.jpg?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![GLK3-500 (Coil Width 500mm, Thickness 0.5-4.5mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6989516.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GLK3-500 (Coil Width 500mm, Thickness 0.5-4.5mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6989511.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GLK3-500 (Coil Width 500mm, Thickness 0.5-4.5mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6989512.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GLK3-500 (Coil Width 500mm, Thickness 0.5-4.5mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6989510.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GLK3-500 (Coil Width 500mm, Thickness 0.5-4.5mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6765428.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | GLK3 (0.5-4.5mm) Coil handling equipment |
---|---|
Brand | HongEr |
Model | GLK3-500 |
Applicable material | SPHC.SPHD,SPCC,SPCD,SPCE,Galvanized coil |
Coiler car | Safe and convenient coil loading operation with the assist |
Uncoiler shaft synchronizes with feeder machine | Adopting frequency control and gear motor. |
Power driven pressing arm | prevents the material from being scattered and to assist the uncoiling |
Uncoilling direction | From bottom to up input coil |
Straightener roller | Φ48mm x 11 pieces ,top 6/ bottom5, |
Straightener number adjustment way | Worm adjusting by Manual |
Straightener roller drive way | Side gear drive |
Straightening precision | ≤1.5mm/㎡ |
Feeding line height adjust way | Motor-driven , Feeding line height ±100mm |
Update Time | Jul 27,2024 |
Detail Information
Product Description

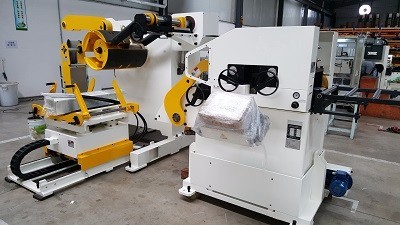

GLK3-500 Steel coil material handling equipment NC servo straightener feeder with uncoiler
![](https://icdn.tradew.com/file/201405/1556694/jpg/6989455.jpg?x-oss-process=image/quality,Q_90)
Capacities
Coil width: 40mm-500mm
Material thickness: 0.5mm-4.5mm
Coil weight: 3000kgs
Line speed: 20m/min
Material: CR Steel, HR Steel, Stainless, Aluminum, Copper etc.
![](https://icdn.tradew.com/file/201405/1556694/png/6989490.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201405/1556694/png/6765344.png?x-oss-process=image/quality,Q_90)

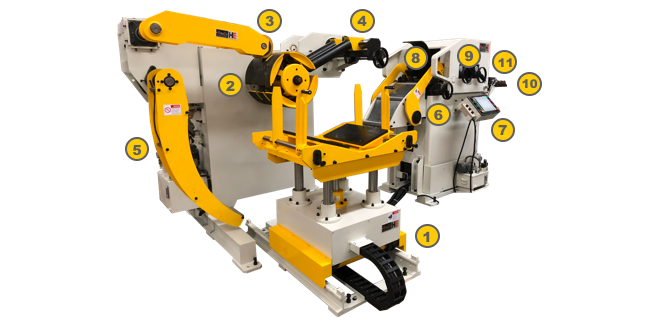

1. Coil Car
Hydraulic power, wear-resisting surface

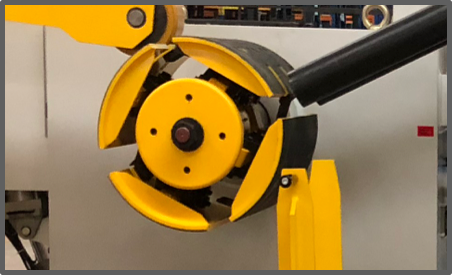

![](https://icdn.tradew.com/file/201405/1556694/png/6989480.png?x-oss-process=image/quality,Q_90)
2. Decoiler Mandrel
Hydraulic expansion, delta inverter

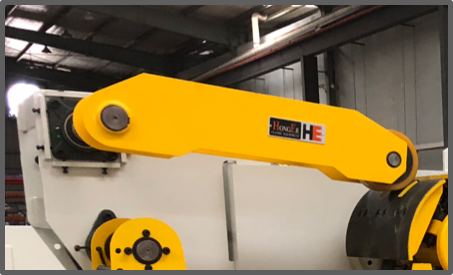

![](https://icdn.tradew.com/file/201405/1556694/png/6989484.png?x-oss-process=image/quality,Q_90)
3. Pressing Arm
Coil well-knit, no disperse
![](https://icdn.tradew.com/file/201405/1556694/png/6989486.png?x-oss-process=image/quality,Q_90)
4. Limiting Arm
Locating coil, avoid coil shuffing

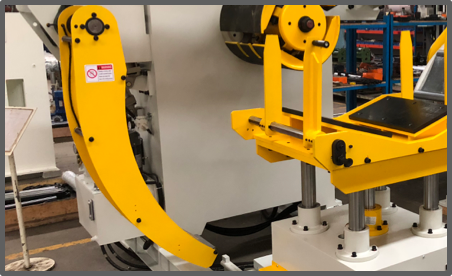

![](https://icdn.tradew.com/file/201405/1556694/png/6989487.png?x-oss-process=image/quality,Q_90)

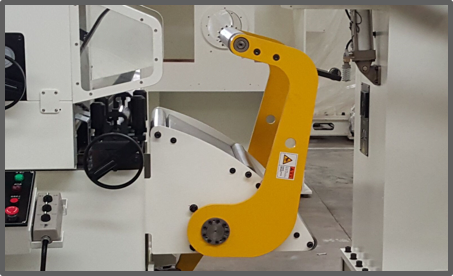

5. Support Arm
Auxiliary support coil
![](https://icdn.tradew.com/file/201405/1556694/png/6989488.png?x-oss-process=image/quality,Q_90)
6. Coil Inlet
With supporting swing arm
![](https://icdn.tradew.com/file/201405/1556694/png/6765353.png?x-oss-process=image/quality,Q_90)
7. Control Board
Weinview touchscreen
![](https://icdn.tradew.com/file/201405/1556694/png/6765354.png?x-oss-process=image/quality,Q_90)
8. Straightening Part
7pcs GCr15 straightener rolls
![](https://icdn.tradew.com/file/201405/1556694/png/6765355.png?x-oss-process=image/quality,Q_90)

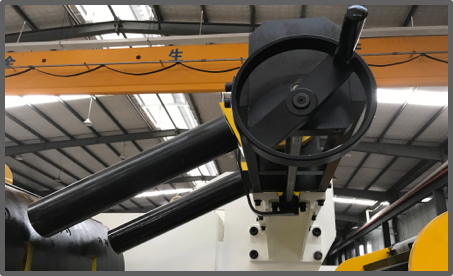

9. Handwheel
Precision straightening value adjustment
![](https://icdn.tradew.com/file/201405/1556694/png/6765357.png?x-oss-process=image/quality,Q_90)
10. Outlet Support Bracket
Adjustable in length
![](https://icdn.tradew.com/file/201405/1556694/png/6765358.png?x-oss-process=image/quality,Q_90)
11. Optional Lubrication Unit
Automatic lubrication control, 20L
![](https://icdn.tradew.com/file/201405/1556694/png/6765360.png?x-oss-process=image/quality,Q_90)
12. Servo System
Yaskawa servo motor and servo dirve
Specification
Model |
GLK3-500 |
Material | Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Painted Steel, Stainless Steel, Copper, Aluminum etc. |
Coil Width |
70-500 mm |
Strip Thickness |
0.5-4.5 mm |
Feeding Length | Max. 9999.99 mm |
Coil I.D. | Φ508 |
Coil O.D. | Φ1400 |
Loading Capacity | 3000 kgs |
Feeding Speed | Max. 20m/min |
Feeding Precision | ±0.1mm |
Straightener Rolls | Φ68mm * 7pcs (Up4/Down3) |
Pinch Rolls | Φ88mm * 2pcs |
Pressing Arm | Pneumatic Type |
Expansion | Hydraulic Expansion |
Uncoiler Motor | 1.5 Kw |
Servo Motor | 4.4 Kw |
* Machine Spec can be customized according to your specific demands.
* Coil Feeding line for high strength material, please check our GLK-H series
Application

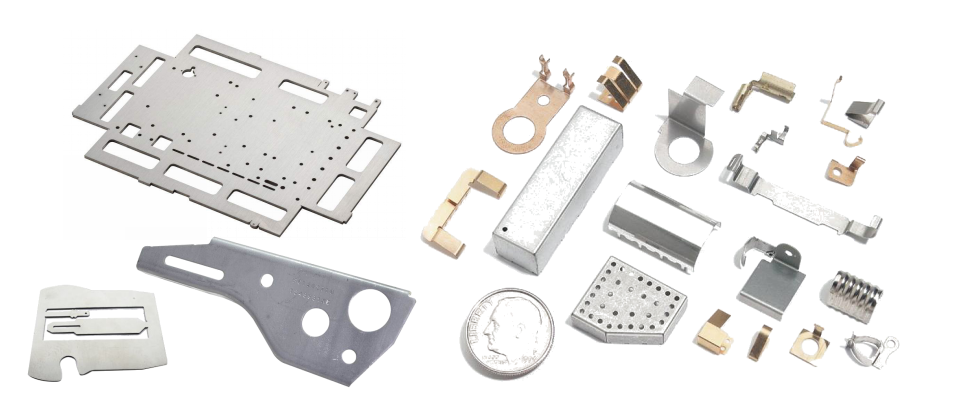

Electronic components, Electrical accessories, Household appliance, Hardware tools
![](https://icdn.tradew.com/file/201405/1556694/png/6765404.png?x-oss-process=image/quality,Q_90)

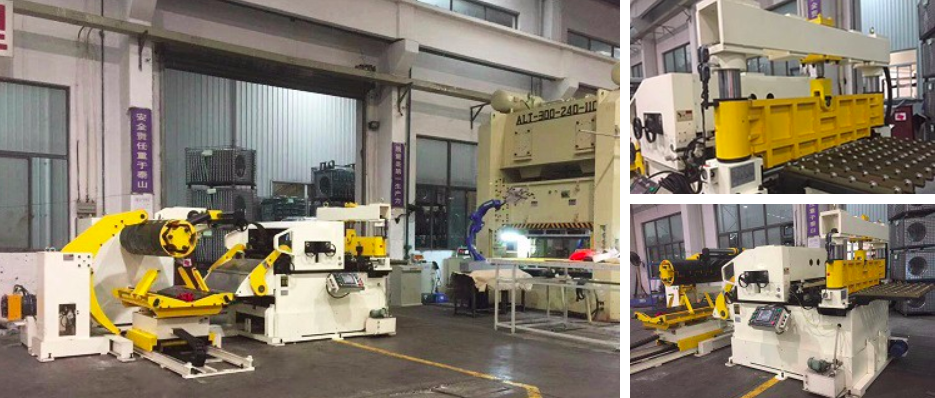

GLK3-1300 for air conditioner parts manufacturing
Equipped with hydraulic shearing machine and automatic oiling machine
![](https://icdn.tradew.com/file/201405/1556694/png/6989454.png?x-oss-process=image/quality,Q_90)
