CL-150 (Coil width 150mm, Thcikness 0.4-2.2mm)
CL-150 (Coil width 150mm, Thcikness 0.4-2.2mm)
| Categories | Decoiler Straightener Combination CL |
|---|---|
| Brand | HongEr |
| Model | CL-150 |
| Update Time | June 10,2023 |
Detail Information
Product Description

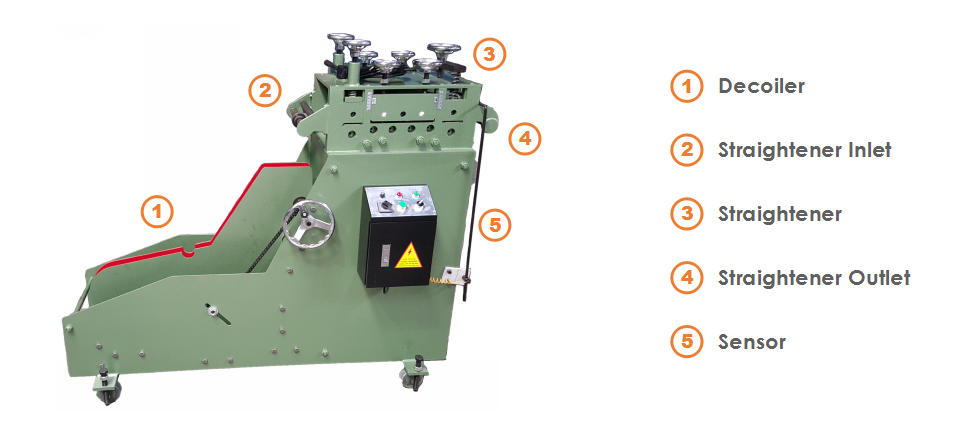

CL-150 Combined decoiler straightener for metal uncoiling leveling
CL is HongEr Combined decoiler straightener for metal uncoiling leveling, specially made for small inner diameter metal coil.
It accepts coil I.D. from 50mm to 530mm, sheet metal thickness from 0.4mm to 2.2mm.
Specification
Model |
CL-150 |
Max. Coil Width |
150 |
Strip Thickness |
0.4-2.2 mm |
Coil I.D. | 50-530 mm |
Coil O.D. | 1000 mm |
Loading Capacity | 300 kgs |
Expansion | Manual |
Straightener Roll | Ø52mm*7pcs |
Straightener Motor | 1 HP |
Roller Adjustment | Spring |
Feeding Speed | 16m/min |
Application

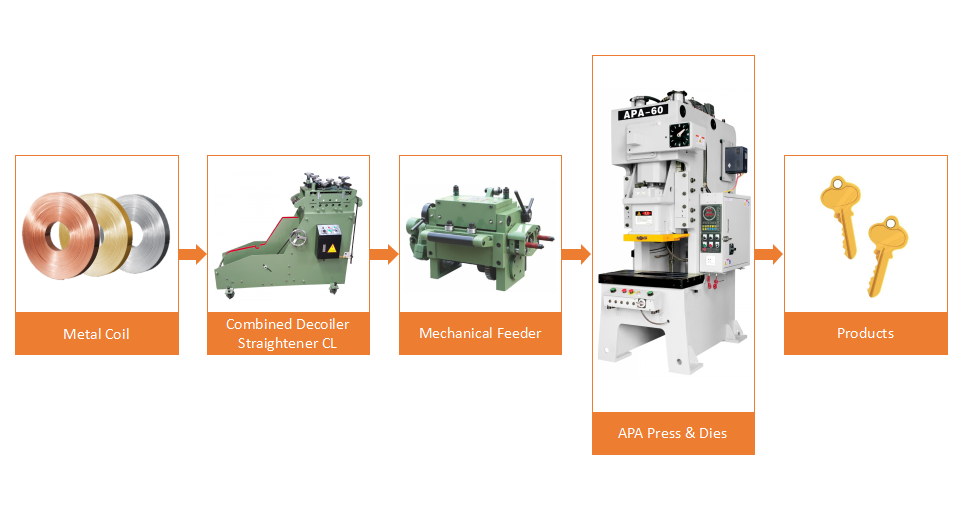

CL combined decoiler straightener can be used in keys stamping line, small copper parts production line etc. A general copper keys stamping line as follow:

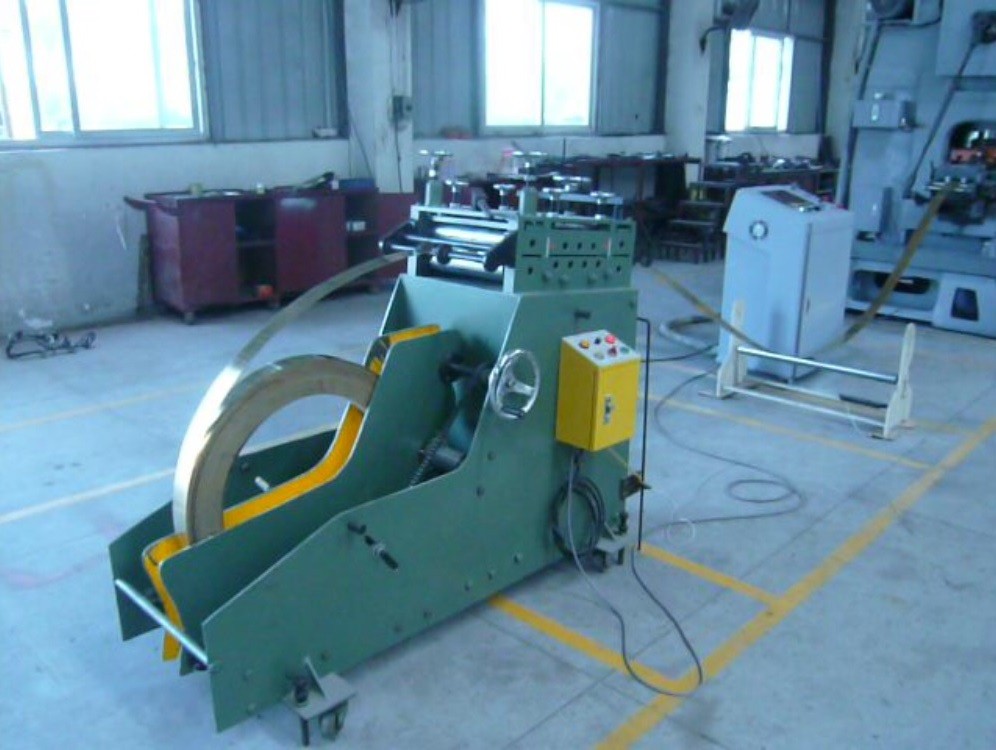

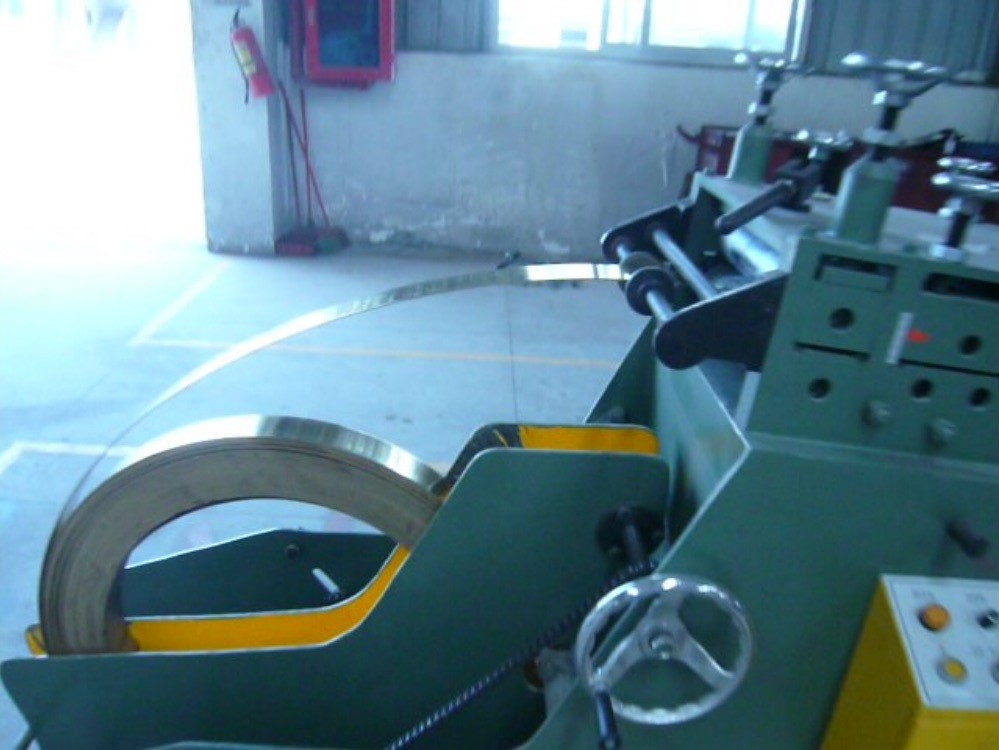

Our cooper keys stamping line in customer's workshop:
