Home / All / Decoiler and Straightener / Decoiler Straightener 2 in 1 GO /

GO-600 (Coil width 600mm, Thcikness 0.4-2.2mm)

GO-600 (Coil width 600mm, Thcikness 0.4-2.2mm)

GO-600 (Coil width 600mm, Thcikness 0.4-2.2mm)
GO-600 (Coil width 600mm, Thcikness 0.4-2.2mm)GO-600 (Coil width 600mm, Thcikness 0.4-2.2mm)GO-600 (Coil width 600mm, Thcikness 0.4-2.2mm)GO-600 (Coil width 600mm, Thcikness 0.4-2.2mm)GO-600 (Coil width 600mm, Thcikness 0.4-2.2mm)
CategoriesDecoiler Straightener 2 in 1 GO
BrandHongEr
ModelGO-600
Update TimeMar 29,2024
Detail Information
Product Description

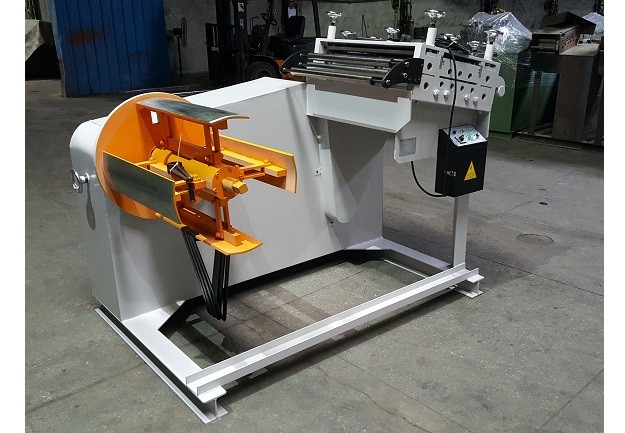

GO-600 press feeding line sheet metal uncoiling flattening machine

GO-600 is HongEr press feeding line sheet metal uncoiling flattening machine.

It can decoiling and straightening sheet metal coil from thickness 0.4mm to 2.2mm.

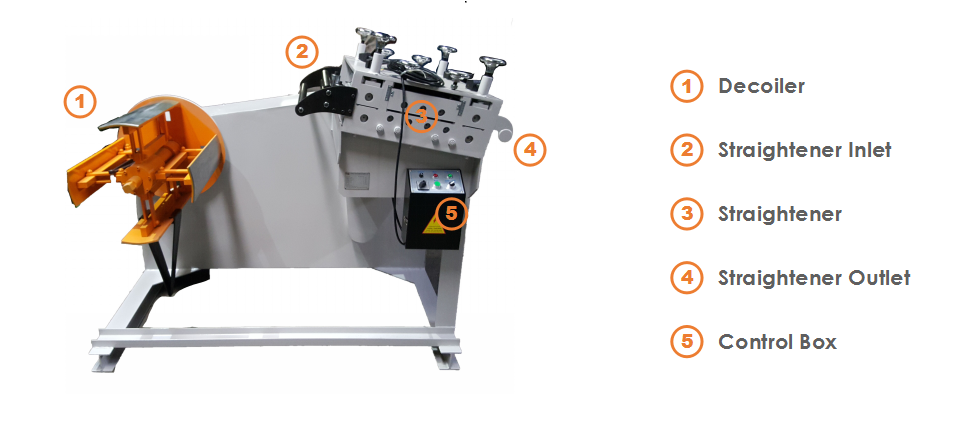

The combined structure guarantee a synchronization between decoiler and straightener and save work space.
Specification
Model
GO-600
Max. Coil Width
600 mm
Strip Thickness
0.4-2.2 mm
Coil I.D.
450-530 mm
Coil O.D.
1200 mm
Loading Capacity
2000 kgs
Expansion
Manual
Straightener Roll
Ø52mm*7pcs
Uncoiler Motor
No
Straightener Motor
3 HP
Roller Adjustment
Spring
Inverter
No
Feeding Speed
15m/min
Application
GO combined decoiler straightener can be found in many different product line such as oil filter production, saw blade stamping line, knives pressing line, car plate stamping etc.

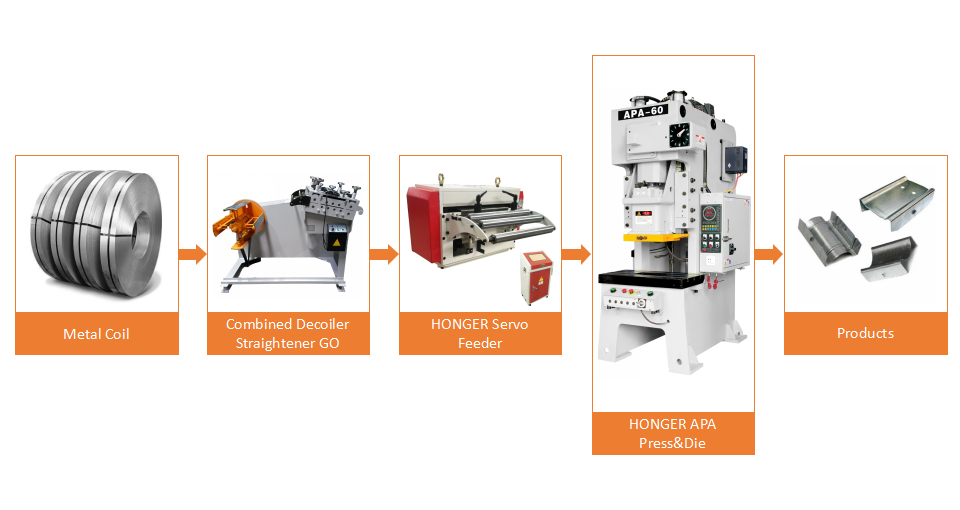

A general configuration for sheet metal parts stamping line:

GO-300 combined decoiler straightener to Thailand
