GL-400H (Coil Width 400mm, Thickness 0.5-4.5mm)

GL-400H (Coil Width 400mm, Thickness 0.5-4.5mm)

GL-400H (Coil Width 400mm, Thickness 0.5-4.5mm)
GL-400H (Coil Width 400mm, Thickness 0.5-4.5mm)GL-400H (Coil Width 400mm, Thickness 0.5-4.5mm)GL-400H (Coil Width 400mm, Thickness 0.5-4.5mm)GL-400H (Coil Width 400mm, Thickness 0.5-4.5mm)GL-400H (Coil Width 400mm, Thickness 0.5-4.5mm)
CategoriesDecoiler Straightener GL-H
BrandHongEr
ModelGL-400H
Applicable materialCold-rolled coil ,SPHC,Galvanized coil,Aluminium c
Straightener Roller Adjustment wayWorm Adjusting + 4 pionts fine adjustment by hand
Expansion wayManual expansion
BrakeCylinder disc brake
Pressing armPneumatic rod type
Supporting armPneumatic rod type
Motor drive wayDouble Rows Chain transmission
Intput pressing deviecePnumatic Cylinder
Straightening speed16m/min
Update TimeMar 29,2024
Detail Information
Product Description

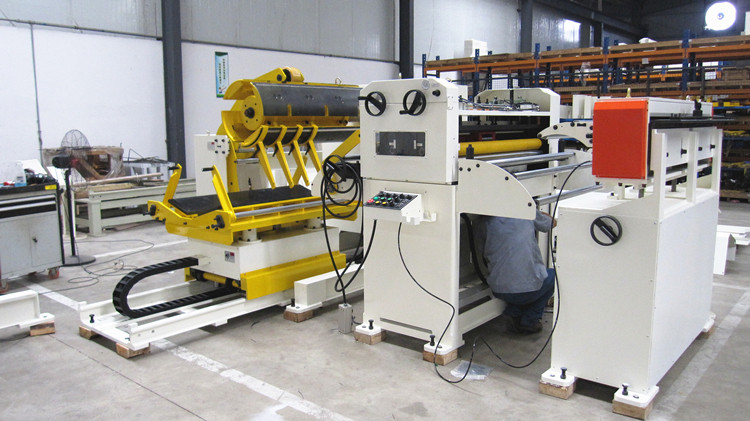

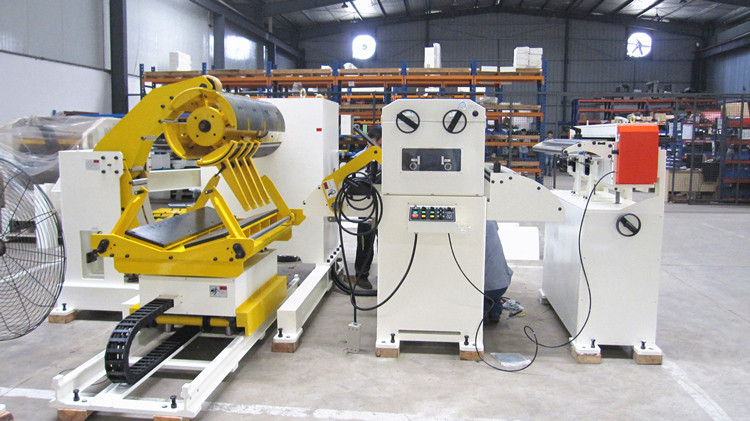

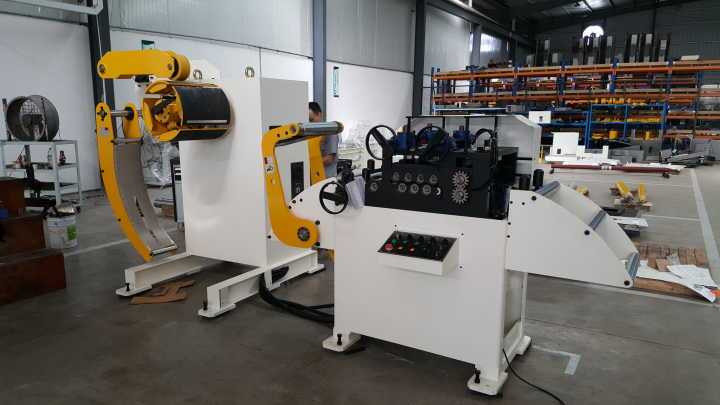

GL-400H Steel strip decoiling and straightening combination for metal stamping

GL-400H is HongEr steel strip decoiling and straightening combination for metal stamping.

It can decoiling and straightening sheet metal coil from thickness 0.5mm to 4.5mm.

With pneumatic pressure on straightener roller and worm gear adjusting, it can achieve presicion straightening performance for many different kind of material.

The combined structure guarantee a synchronization between decoiler and straightener and save work space.
Pneumatic Rod Pressing

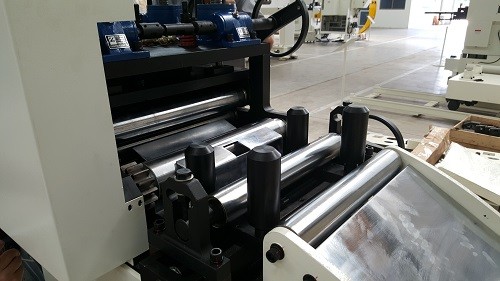

GCr15 Straightening Rolls, Hardness HRC60

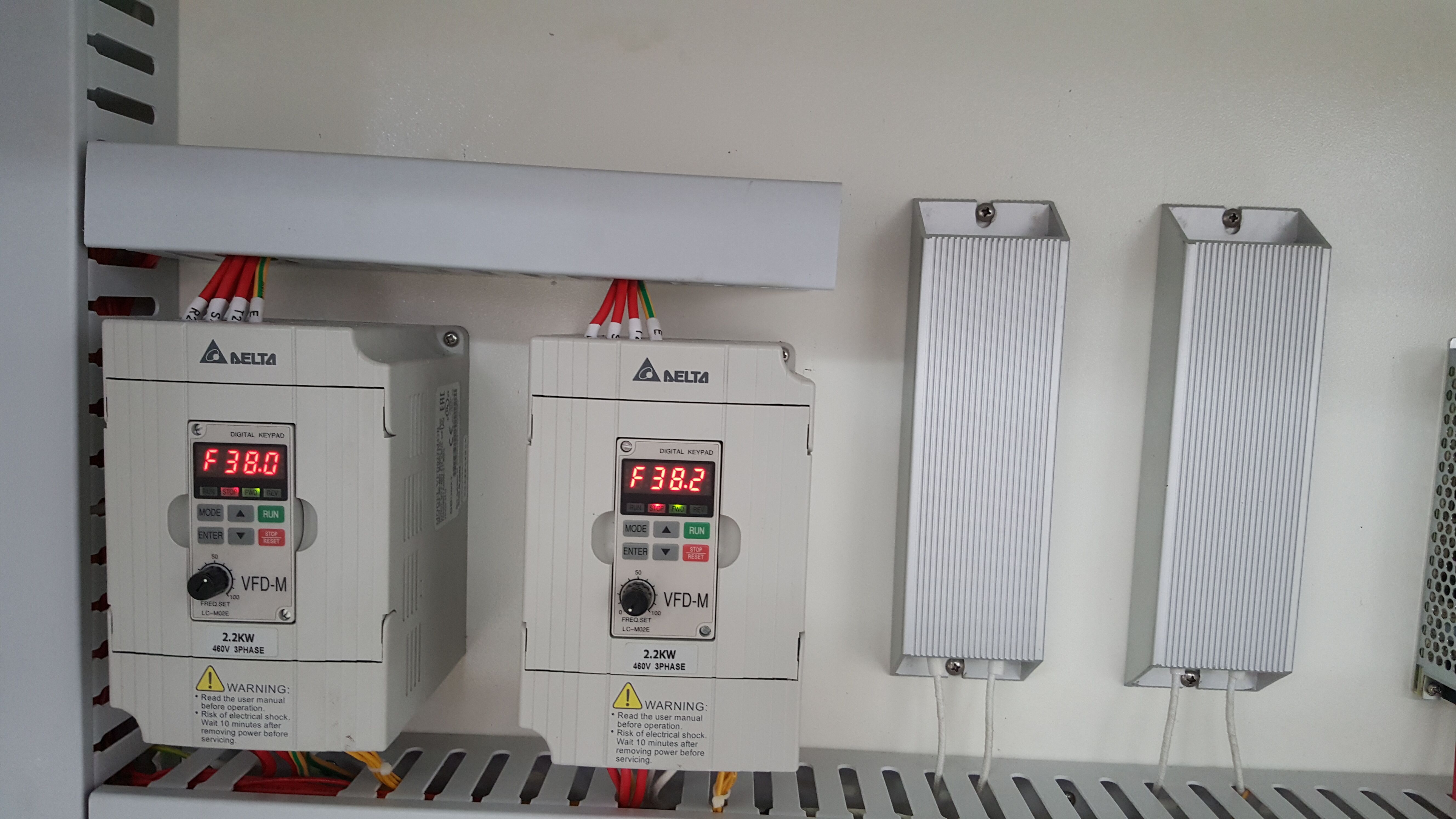

International Standard Electric Cabinet

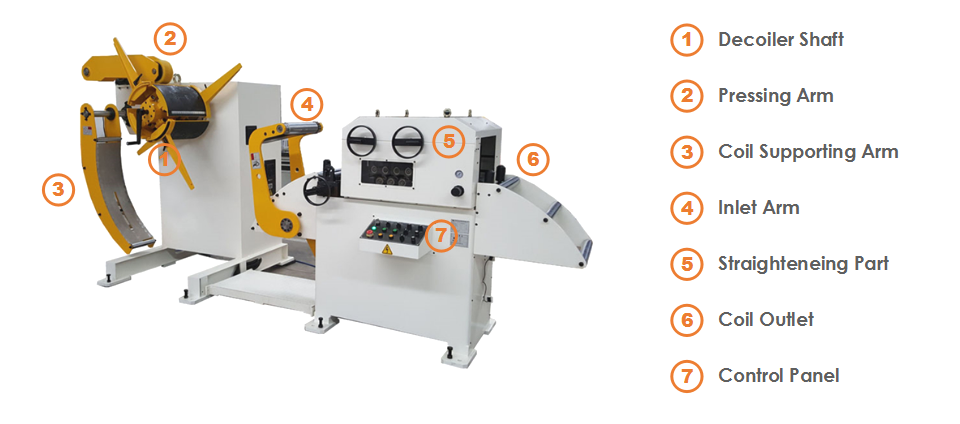

Innovative Structure
Specification
Model
GL-400H
Max. Coil Width
400 mm
Strip Thickness
0.5-4.5 mm
Coil I.D.
460-520 mm
Coil O.D.
1200 mm
Loading Capacity
2000 kgs
Straightener Roll
Ø68mm*7pcs
Uncoiler Motor
1.5 Kw
Uncoiler Expansion
Manual Expansion (Hydraulic for optional)
Pressing Arm
Pneumatic Pressing Arm for optional
Straightener Motor
2.2 Kw
Roller Pressing
Pneumatic Rod
Roller Adjustment
Eccentric turbine worm adjusting
Inverter
Delta, Taiwan
Feeding Speed
15m/min
Application
GL-H combined decoiler straightener can be found in many different product line, as a affordable solution for 3 in 1 decoiler straightener feeder compact coil feeding system.
