GLK2-600 Decoiler Straightener Feeder (0.3-3.2mm)

Name: GLK2-600 Decoiler Straightener Feeder (0.3-3.2mm)
Brand: HongEr
SKU: 18200075
Rating: 4.75 (10 reviews)

Categories	GLK2 (0.3-3.2mm) Coil Feeding Line
Brand	HongEr
Model	GLK2-600
Applicable material	SPHC.SPHD,SPCC,SPCD,SPCE,Galvanized coil
Coiler car	Safe and convenient coil loading operation with the assist
Uncoiler shaft synchronizes with feeder machine	Adopting frequency control and gear motor.
Power driven pressing arm	prevents the material from being scattered and to assist the uncoiling
Uncoilling direction	From bottom to up input coil
Straightener roller	Φ48mm x 11 pieces ,top 6/ bottom5,
Straightener number adjustment way	Worm adjusting by Manual
Straightener roller drive way	Side gear drive
Straightening precision	≤1.5mm/㎡
Feeding line height adjust way	Motor-driven , Feeding line height ±100mm
Update Time	Oct 15,2024

Contact Now

Favorites

Detail Information

Product Description

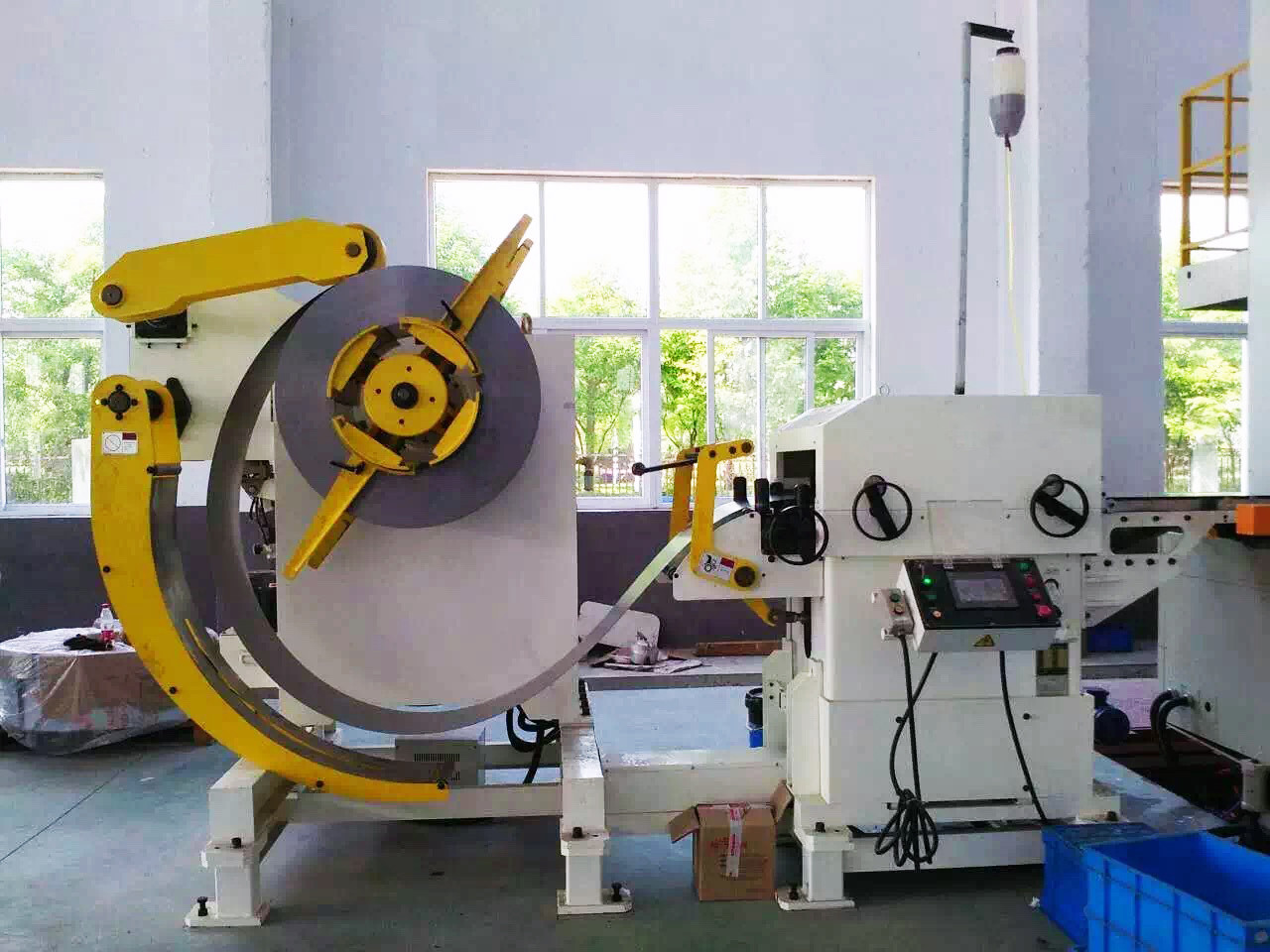

DECOILER STRAIGHTENER FEEDER 3 IN 1 GLK2-600

Capacities

Coil width: 50mm-600mm

Material thickness: 0.3mm-3.2mm

Coil weight: 5Ton

Line speed: 20m/min

Line length: 3.2m

Material: CR Steel, HR Steel, Stainless, Aluminum, Copper etc.

1. Coil Car

Hydraulic power, wear-resisting surface

2. Decoiler Mandrel

Hydraulic expansion, delta inverter

3. Pressing Arm

Coil well-knit, no disperse

4. "A" frame

Locating coil, avoid coil shuffing

5. Coil Inlet

Supporting arm for optional

6. Control Board

Weinview touchscreen

7. Straightening Part

11pcs GCr15 straightener rolls

8. Handwheel

Precision straightening value adjustment

9. Outlet Support Bracket

Adjustable in length

10. Optional Lubrication Unit

Automatic lubrication control, 20L

11. Servo System

Yaskawa servo motor and servo dirve

Specification

Model	GLK2-600
Material	Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Painted Steel, Stainless Steel, Copper, Aluminum etc.
Coil Width	50-600 mm
Strip Thickness	0.3-3.2 mm
Feeding Length	Max. 9999.99 mm
Coil I.D.	Φ480-Φ520
Coil O.D.	Φ1200
Loading Capacity	5000 kgs
Feeding Speed	Max. 20m/min
Feeding Precision	±0.1mm
Straightener Rolls	Φ48mm * 11pcs
Pinch Rolls	Φ68mm * 2pcs
Pressing Arm	Pneumatic Type
Expansion	Hydraulic Expansion
Uncoiler Motor	2.2 Kw
Servo Motor	2.9 Kw

* Machine Spec can be customized according to your specific demands.

* Coil Feeding line for high strength material, please check our GLK-H series

Application

Customer application: GLK2-600 decoiler straightener feeder used in sheet metal stamping line, suitable for strip thickness 0.3mm to 3.2mm, for coil width from 50mm to 600mm.

Electronic components, Electrical accessories, Household appliance, Hardware tools
