GLK2-500 Decoiler Straightener Feeder (0.3-3.2mm)
GLK2-500 Decoiler Straightener Feeder (0.3-3.2mm)
| Categories | GLK2 (0.3-3.2mm) Coil Feeding Line |
|---|---|
| Brand | HongEr |
| Model | GLK2-500 |
| Applicable material | SPHC.SPHD,SPCC,SPCD,SPCE,Galvanized coil |
| Coiler car | Safe and convenient coil loading operation with the assist |
| Uncoiler shaft synchronizes with feeder machine | Adopting frequency control and gear motor. |
| Power driven pressing arm | prevents the material from being scattered and to assist the uncoiling |
| Uncoilling direction | From bottom to up input coil |
| Straightener roller | Φ48mm x 11 pieces ,top 6/ bottom5, |
| Straightener number adjustment way | Worm adjusting by Manual |
| Straightener roller drive way | Side gear drive |
| Straightening precision | ≤1.5mm/㎡ |
| Feeding line height adjust way | Motor-driven , Feeding line height ±100mm |
| Update Time | Sep 21,2024 |
Detail Information
Product Description
DECOILER STRAIGHTENER FEEDER 3 IN 1 GLK2-500
Capacities
Coil width: 50mm-500mm
Material thickness: 0.3mm-3.2mm
Coil weight: 3Ton
Line speed: 20m/min
Line length: 3.2m
Material: CR Steel, HR Steel, Stainless, Aluminum, Copper etc.
1. Coil Car
Hydraulic power, wear-resisting surface
2. Decoiler Mandrel
Hydraulic expansion, delta inverter
3. Pressing Arm
Coil well-knit, no disperse
4. "A" frame
Locating coil, avoid coil shuffing
5. Coil Inlet
Supporting arm for optional
6. Control Board
Weinview touchscreen
7. Straightening Part
11pcs GCr15 straightener rolls
8. Handwheel
Precision straightening value adjustment
9. Outlet Support Bracket
Adjustable in length
10. Optional Lubrication Unit
Automatic lubrication control, 20L
11. Servo System
Yaskawa servo motor and servo dirve
Specification
Model |
GLK2-500 |
Material | Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Painted Steel, Stainless Steel, Copper, Aluminum etc. |
Coil Width |
50-500 mm |
Strip Thickness |
0.3-3.2 mm |
Feeding Length | Max. 9999.99 mm |
Coil I.D. | Φ480-Φ520 |
Coil O.D. | Φ1200 |
Loading Capacity | 3000 kgs |
Feeding Speed | Max. 20m/min |
Feeding Precision | ±0.1mm |
Straightener Rolls | Φ48mm * 11pcs |
Pinch Rolls | Φ68mm * 2pcs |
Pressing Arm | Pneumatic Type |
Expansion | Hydraulic Expansion |
Uncoiler Motor | 1.5 Kw |
Servo Motor | 2.9 Kw |
* Machine Spec can be customized according to your specific demands.
* Coil Feeding line for high strength material, please check our GLK-H series
Application
Electronic components, Electrical accessories, Household appliance, Hardware tools

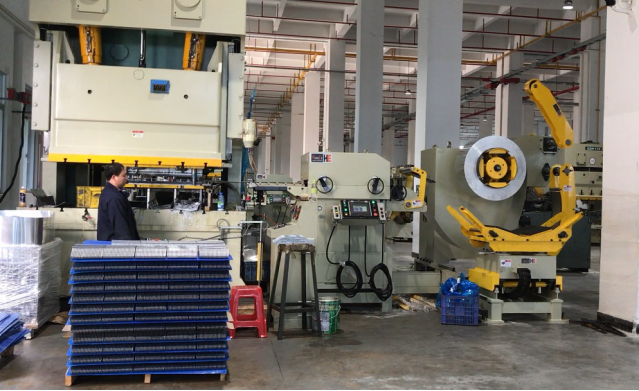

GLK2-500 for LED sheet metal parts manufacturing
Save Workspace!

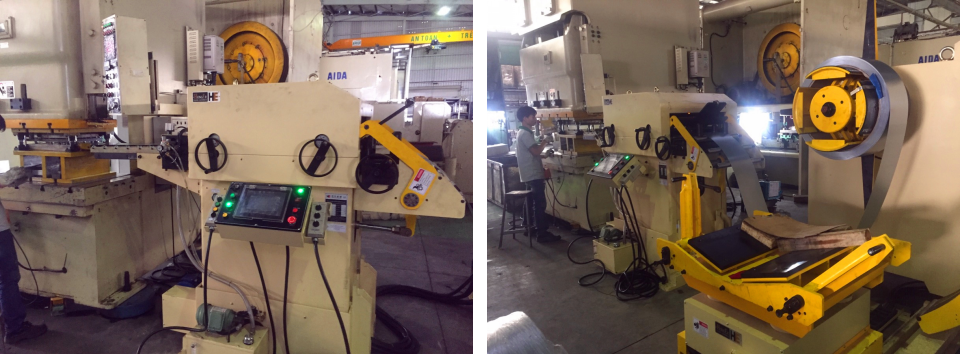

GLK2-500F, HongEr coil feeding system with AIDA press machine in Vietnam:
