GCF-200 (Thickness 0.1-1.6mm, Width 200mm)
![GCF-200 (Thickness 0.1-1.6mm, Width 200mm)](https://icdn.tradew.com/file/201405/1556694/png/6994504.png?x-oss-process=image/resize,m_pad,l_250/quality,Q_90)
![GCF-200 (Thickness 0.1-1.6mm, Width 200mm)](https://icdn.tradew.com/file/201405/1556694/png/6994504.png?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GCF-200 (Thickness 0.1-1.6mm, Width 200mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6757209.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GCF-200 (Thickness 0.1-1.6mm, Width 200mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6757210.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GCF-200 (Thickness 0.1-1.6mm, Width 200mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6757211.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![GCF-200 (Thickness 0.1-1.6mm, Width 200mm)](https://icdn.tradew.com/file/201405/1556694/jpg/6757212.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | CAM Feeder |
---|---|
Brand | HongEr |
Model | GCF-200 |
Update Time | Jul 27,2024 |
Detail Information
Product Description

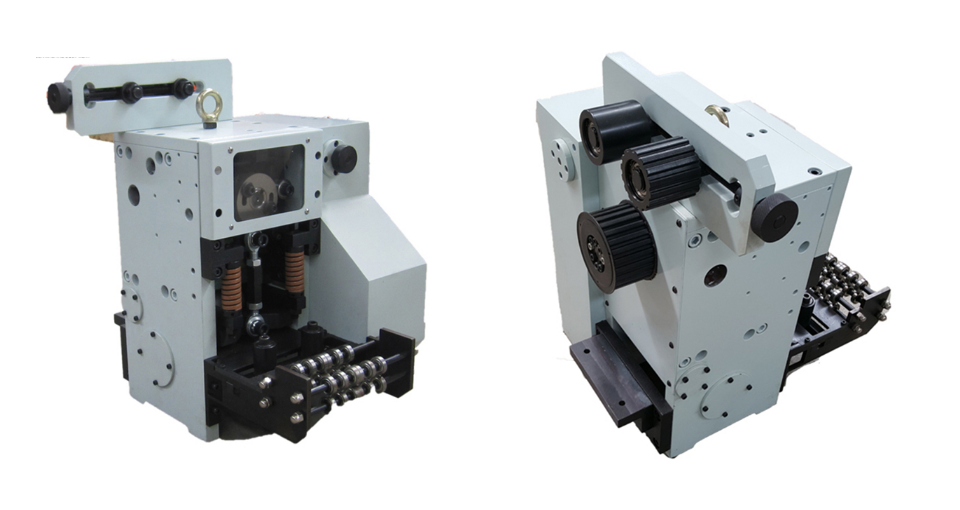

GCF-200 High speed sheet metal feeder for motor core lamination stamping
GCF-200 is HongEr High speed sheet metal feeder for motor core lamination stamping.
It can feeds silicon steel sheet from 0.1mm to 1.6mm, with feeding speed up to 500SPM.
![](https://icdn.tradew.com/file/201405/1556694/png/6757160.png?x-oss-process=image/quality,Q_90)
Specification
Model |
GCF-200 |
Max. Coil Width |
200 mm |
Coil Thickness |
0.1 mm - 1.6 mm |
Index No. |
4 |
Feeding Length | 11.5 mm - 240 mm |
Feeding Angle | 180° |
Release Angle | 135° - 195° |
Feeding Direction | From Left to Right |
Application

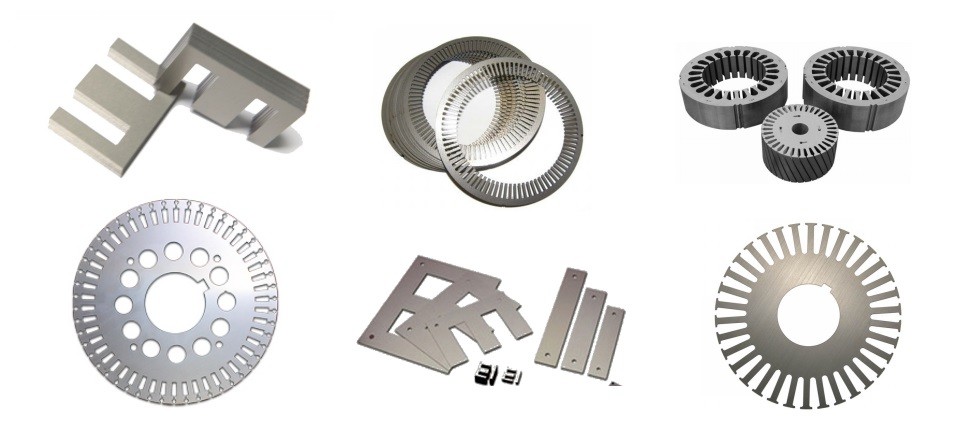

GCF-200 High speed sheet metal feeder for motor core lamination stamping and EI laminations production line.
![](https://icdn.tradew.com/file/201405/1556694/jpg/6757175.jpg?x-oss-process=image/quality,Q_90)

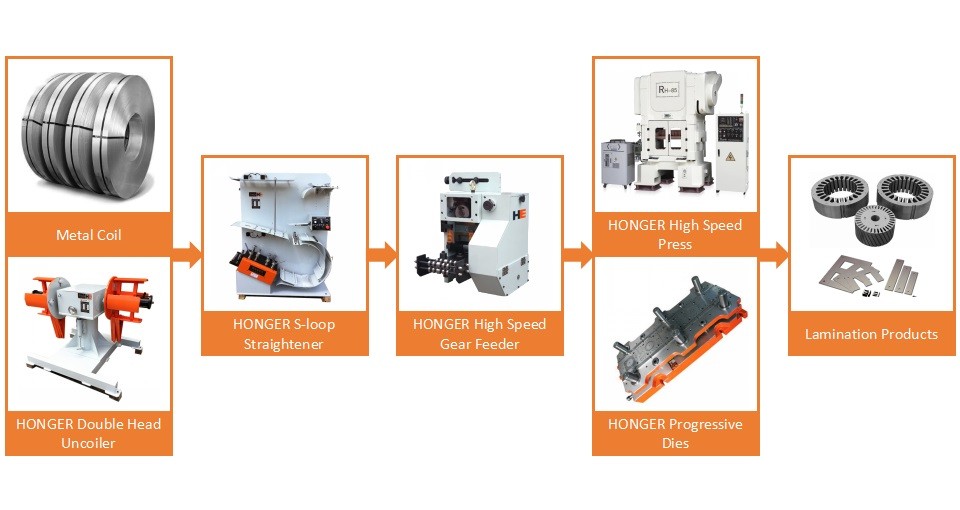

General configruation for lamination stamping line:
![](https://icdn.tradew.com/file/201405/1556694/jpg/6757177.jpg?x-oss-process=image/quality,Q_90)

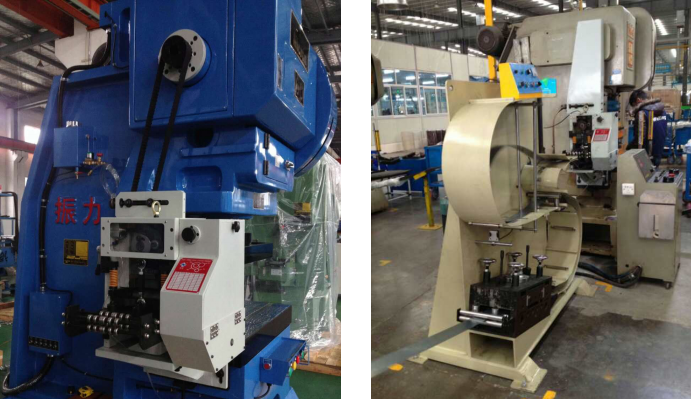

Our customer's high speed lamination stamping line:
![](https://icdn.tradew.com/file/201405/1556694/png/6757196.png?x-oss-process=image/quality,Q_90)
