NCP-700 (Thickness 0.2-2.0mm, Width 700mm)

Name: NCP-700 (Thickness 0.2-2.0mm, Width 700mm)
Brand: HongEr
SKU: 18193224
Rating: 4.75 (10 reviews)

Categories	ZigZag Feeder
Brand	HongEr
Model	NCP-700
Update Time	Apr 20,2024

Contact Now

Favorites

Detail Information

Product Description

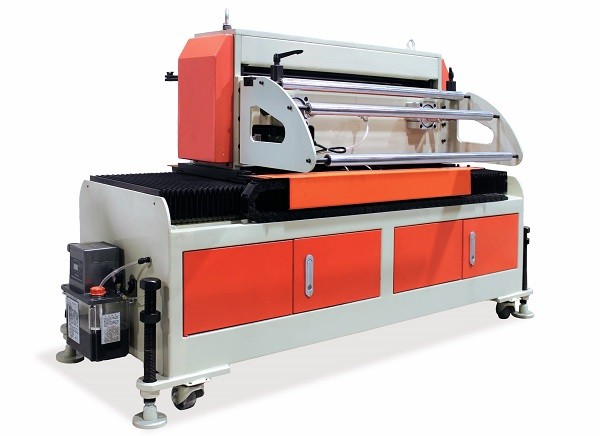

NCP-700 Zigzag feeder for circle blanking line with Yaskawa servo system

NCP-700 is one type of HongEr Zigzag feeder for circle blanking line with yaskawa servo system

It use high-speed linear bearings, rails with special treatment, low noise, high wear resistance, low friction load, smooth movement speed.

1 set of Mitsubishi PLC and 2 sets of Yaskawa servo system, one servo system controls the feeding, another servo system controls the zigzag movement, it can achieve feeding precision ±0.08 mm.

Simply operation, high automation.

Specification

Model	NCP-700
Max. Coil Width	700 mm
Strip Thickness	0.2-2.0 mm
Release	Pneumatic Type Releasing System
Roll Pressure	Spring Type
Feed Roll	Upper Roll 1pc, Bottom Roll 1pc
Feed Length	Max. 9999.99 mm
Feeding Speed	Max. 20 m/min
Zigzag Movement Speed	Max. 30 m/min
Left Center Displacement	350 mm
Accuracy	± 0.01 mm
Servo Motor	Yaskawa, Japan
Servo Drive	Yaskawa, Japan
PLC	Mitsubishi, Japan
Touch Screen	Weinview, Taiwan

Application

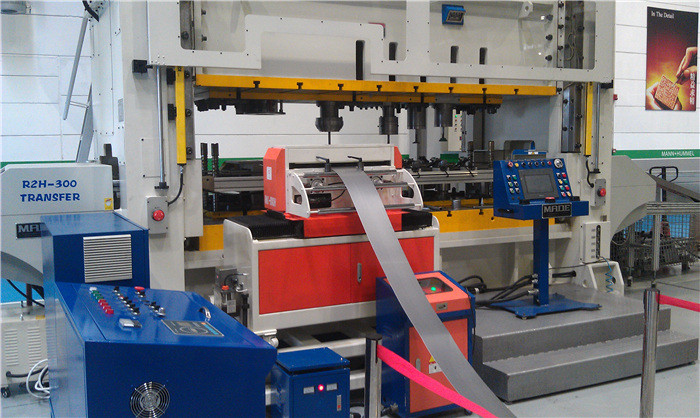

Our Zigzag feeder for Mann+Hummel oil filter production line in Germany
