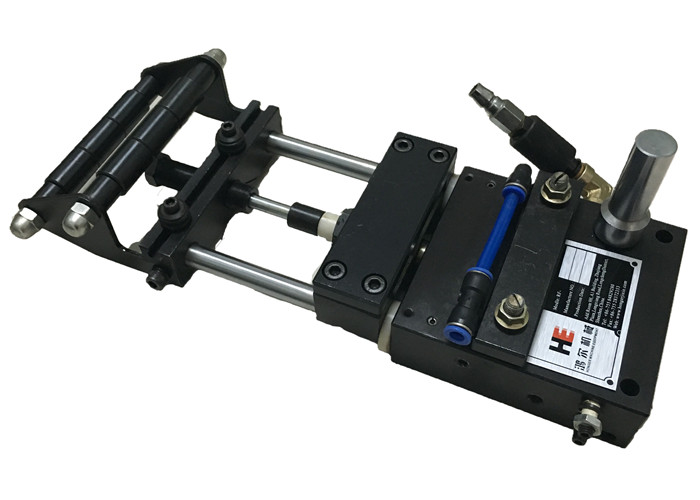

AF Air Feeder

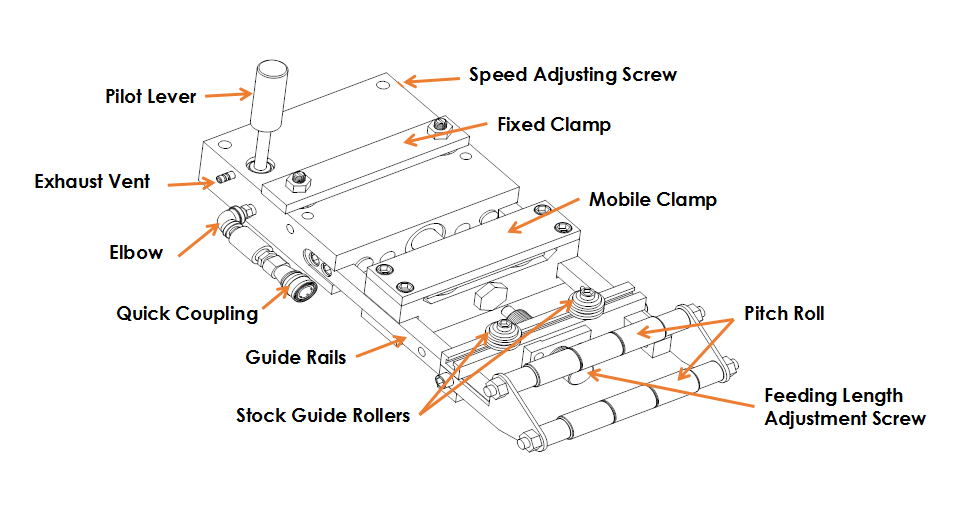

AF is HongEr penumatic air feeder machine.
It can feeds sheet metal strip thickness up to 3.0mm, width up to 400mm.
With 12m/min speed, it's an efficient and economic coil feeding solution for power press machine.

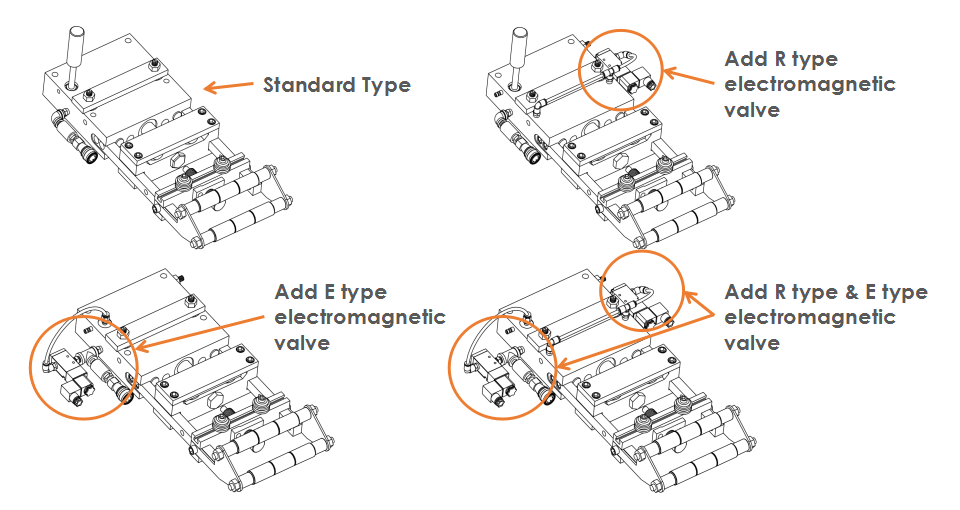

We also provide releasing and feeding solenoid valve for your optional.
![](https://icdn.tradew.com/file/201405/1556694/png/6756209.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201405/1556694/png/6756215.png?x-oss-process=image/quality,Q_90)
Specification
Model |
AF-1C | AF-2C | AF-3C |
AF-4C |
AF-5C |
Coil Width |
50 mm | 65 mm | 80 mm |
100 mm |
150 mm |
Feeding Length | 50 mm | 80 mm | 80 mm | 130 mm | 150 mm |
Coil Thickness |
0.1-0.5 mm | 0.1-0.8 mm | 0.1-1.2 mm |
0.1-1.5 mm |
0.1-2.0 mm |
Feeding Speed | 12 m/min | ||||
Air Consumption | 26.5 L/mm | 38.5 L/mm | 47 L/mm | 58.6 L/mm | 100.5 L/mm |
Pneumatic Pressure | 4.5 kg/cm2 |
Model |
AF-6C |
AF-7C | AF-8C | AF-9C |
AF-10C |
Coil Width | 200 mm | 250 mm | 300 mm | 350 mm | 400 mm |
Feeding Length |
200 mm |
250 mm | 300 mm | 350 mm |
400 mm |
Coil Thickness |
0.1-2.0 mm |
0.1-2.5 mm | 0.1-3.0 mm | 0.1-3.0 mm |
0.1-3.0 mm |
Feeding Speed |
12 m/min |
||||
Air Consumption | 108.5 L/mm | 152 L/mm | 162.5 L/mm | 172.5 L/mm | 182.5 L/mm |
Pneumatic Pressure | 4.5 kg/cm2 |

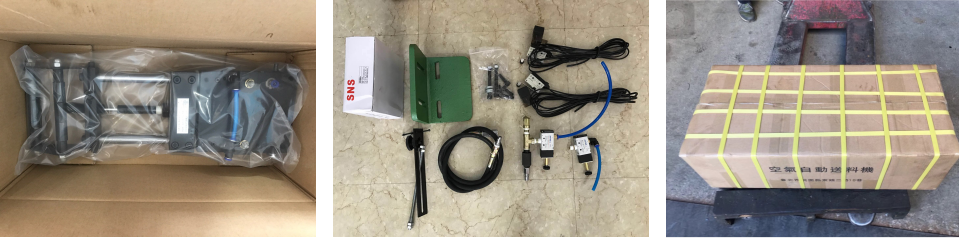

Standard Packing
Air feeder machine packed by sealed plastic bag, with standard accessories such as mounting plate and filter etc. All the parts packed with carton or wooden box.
![](https://icdn.tradew.com/file/201405/1556694/png/6756216.png?x-oss-process=image/quality,Q_90)

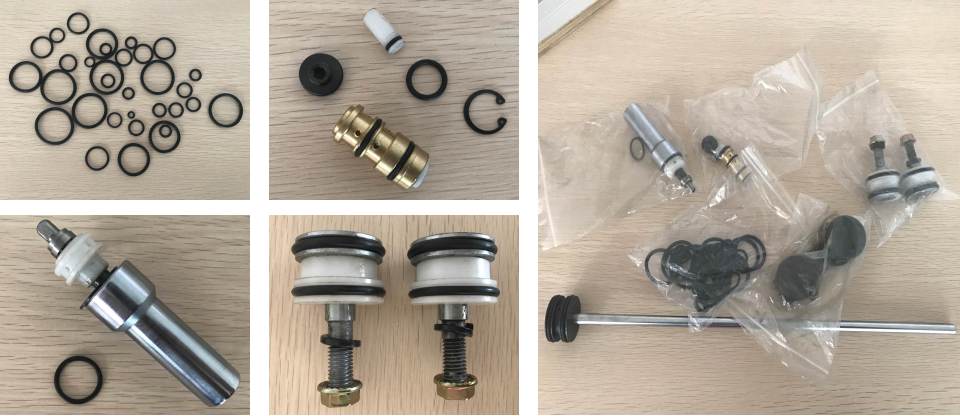

Optional spare parts for replacement
![](https://icdn.tradew.com/file/201405/1556694/png/6756217.png?x-oss-process=image/quality,Q_90)
