APC (Double Crank Press Machine)
Categories | Double Crank Press |
---|---|
Brand | HongEr |
Model | APC |
Terms of Payment | L/C, Western Union, T/T |
Update Time | Nov 7,2024 |
Detail Information
Product Description

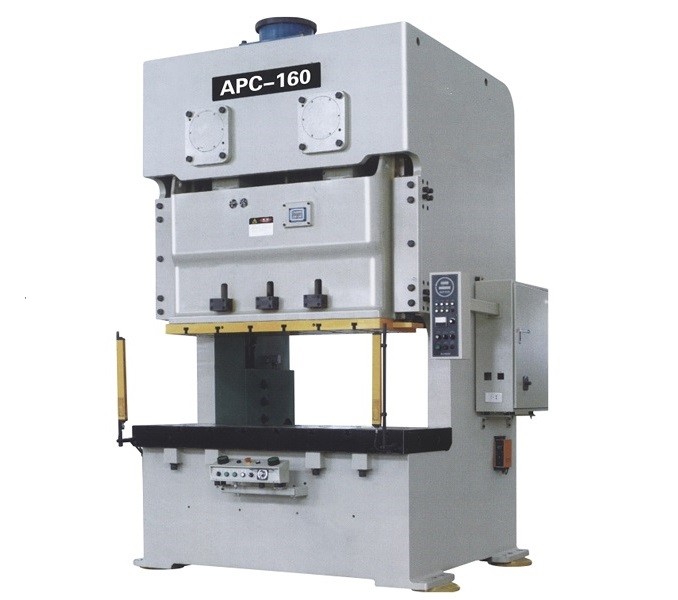

APC DOUBLE CRANK PRESS
1. The machine body was welded of quality steel sheet and treated by tension elimination. This improve stability and reliability for power press.
2. In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two slid boards with balancer.
3. The precision of mold adjusting up to 0.1mm, safety, reliable and convenient.
4. Crank, gear, connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.
5. Reasonable structural design, is convenient for automatic production and line production.
6. Used reliable high intensity clutch / brake and twin electromagnetic valve,overloading protector an guarantee safe production all-around.
7. Used high-grade alloy steel ,double crank, wide work center with connection bar structure, the optimized design large sizes and the mold. bearing large impact loading as well as pressing of eccentric mold.
8. Adopted closed electric, have compatible with any automatic equipments.
Specification
Model | APC-110T | APC-160T | APC-200T | |||
Type | V | H | V | H | V | H |
Capacity | 110 tons | 160 tons | 200 tons | |||
Stroke | 180 mm | 110 mm | 200 mm | 130 mm | 250 mm | 150 mm |
S.P.M. | 35-65 | 50-100 | 30-55 | 40-85 | 25-45 | 35-70 |

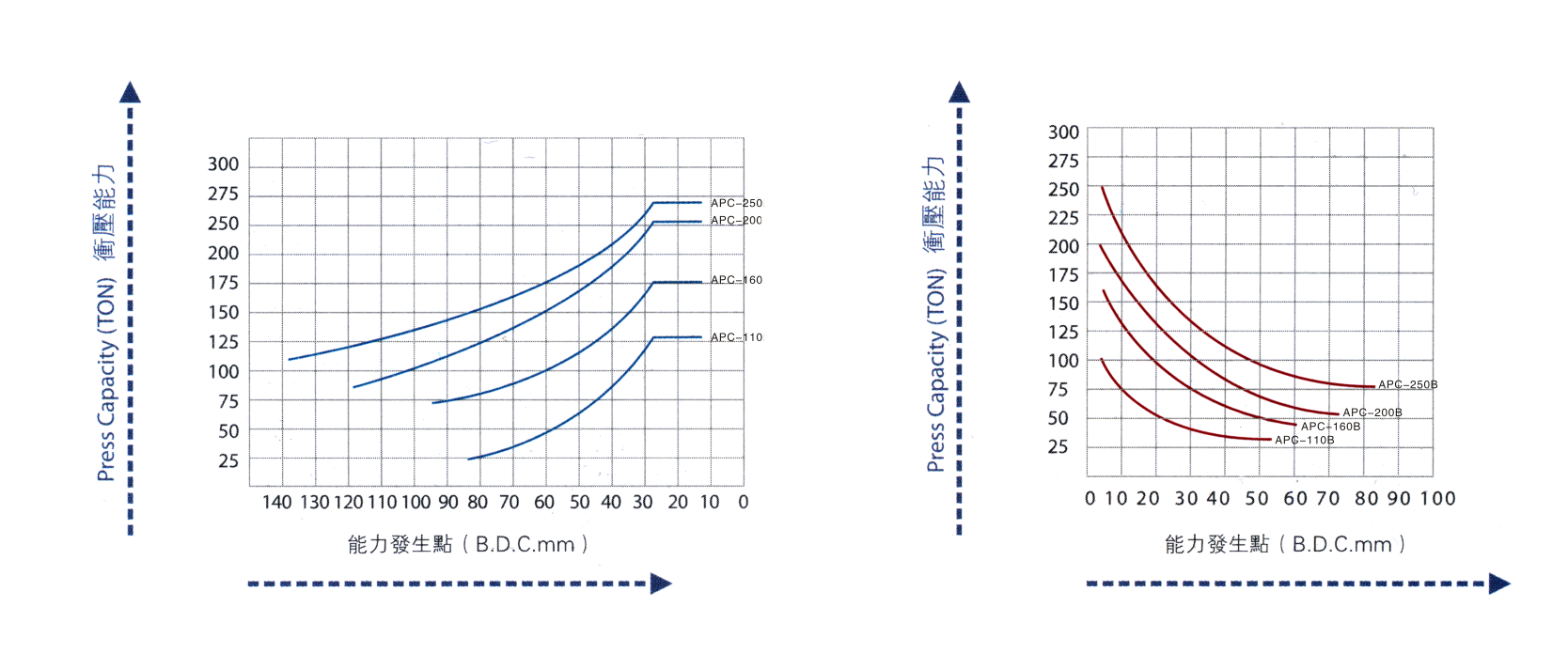

Tonnage Rating Point | 5 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm |
Die Height | 400 mm | 435 mm | 450 mm | 485 mm | 500 mm | 550 mm |
Slide Adjust | 100 mm | 100 mm | 120 mm | |||
Slide Area | 1400 * 500 * 70 mm | 1600 * 550 * 70 mm | 1850 * 650 * 95 mm | |||
Bolster Area | 1800 * 650 * 130 mm | 2000 * 760 * 150 mm | 2400 * 840 * 170 mm | |||
Main Motor | VS11 * 4 (kw.p) | VS15 * 4 (kw.p) | VS18.5 * 4 (kw.p) | |||
Air Presure | 6 kg/cm3 | |||||
Press Dimension | 1745 * 2000 * 3059 mm | 1940 * 2200 * 3709 mm | 2235 * 2620 * 3849 mm | |||
Weight | 14.2 T | 20 T | 27.5 T | |||
Die Cushion Area | 350mm * 235 mm * 2 groups | 410mm * 260 mm * 2 groups | 540 mm * 350 mm * 2 groups |
Standard Accessories:
High performance dry clutch & brake
Electronic crank angle led display
Electronic speed led display
Off/inching/safety/one stroke/continuous
Hydraulic overload protector
Main motor (adjustable)
Overrun detector
Portable2-hand push
Dual solenoid valve
Automatic slide adjust
Digital die height indication (unit0.1mm)
Manual lubrication system
Total counter ,6 digits
Preset counter , 6 digits
Maintenance counter , 6 digits
Life counter, 6 digits
Electronic rotary cam switch (6 spare channel)
Air ejector 1/2”one channel
Air source receptacle 1/2”two channel
Missfeed detection circuit
Power receptacle (available only for single phase 110V power source siring by used )
Press Manufacturing Workshop
